LEDQuant

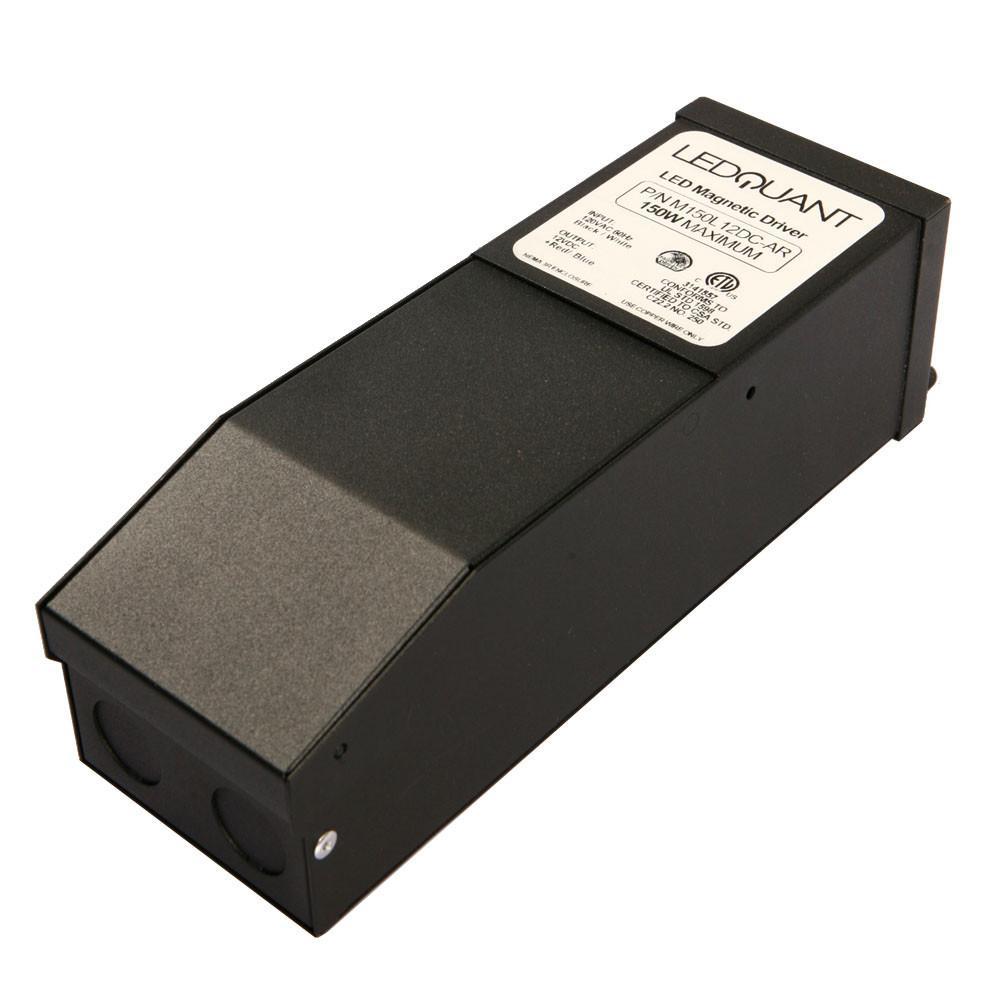

150 Watt Dimmable 12VDC Magnetic Transformer, LED Power Supply

$ 129.99 $ 103.99

LEDQuant

150 Watt Dimmable 12VDC Magnetic Transformer, LED Power Supply

$ 129.99 $ 103.99

LEDQuant's M12V-150W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.

SKU Number M12V-150W-DC
Applications Dimmable or non-dimmable LEDs, LED fixtures, LED panels, LED strip lights
Max Load 150W
Input Voltage 120V AC 60Hz
Output Voltage 11.4V-12.5V DC
Output Current 12.35A
Efficiency 85.20%
Length 9.17"
Width 3.06"
Depth 2.94"
Features Acoustic humming and buzzing free, Auto-reset circuit breakers on the input and output
Certifications ETL, CSA
Other Compliance UL Standard 5085-1
Shipping Weight

6 pounds

Dimmers Compatibility

Low-voltage TRIAC dimmers (list available)
