The CLR-L5 is a 8” commercial grade architectural downlight . Built for commercial use. This high-efficiency luminaire provides long life and minimal need for maintenance. White or Specular available. ETL and Energy Star listed. FCC Part 15 Class B compliant.
FEATURES
Housing
- Premium powder-coat, aluminum, white housing.
Mounting
- Recessed in ceiling, new construction or retrofit.
- Access above ceiling required.
- Covered ceiling mount only.
- Compatible with 8.08” ceiling cut-outs and 8” mounting frames.
Electrical
- Universal 120-277V AC voltage (50-60Hz) is standard.
- 0-10VDC dimming drivers are standard.
- 21.65” flexible metal conduit with additional 6” of conductor is standard.
- Beam angle 50°.
- Input transient surge protection = 1kV.
- Type IC.
- Power factor > 0.90.
- Total Harmonic distortion < 20%.
Optical System
- Polycarbonate diffuser.

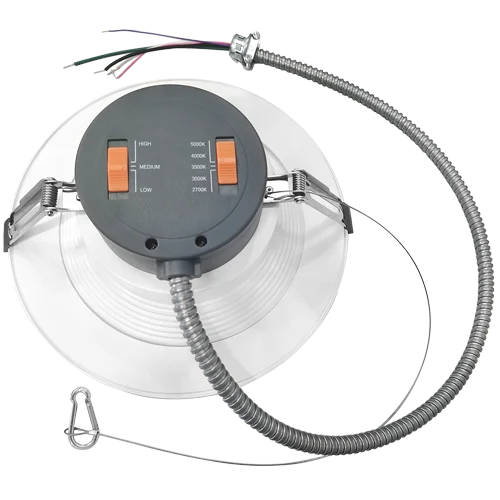

- Field selectable 2700k (soft white), 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures*.
- Tri-Lumen selectable delivers 3,000 to 5,000 nominal lumens*.
- Long-life LEDs provide 149,000 hours of operation with at least 70% of initial lumen output (L70), and 44,000 hours with at least 90% of initial lumen output (L90)**.
- LED color maintenance < -0.0114 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
- Color rendering index > 90%.
WARRANTY & LISTINGS
• Code Compliance
- cETLus listed for wet locations.
- Energy Star certified.
- Complies with FCC part 15, class B.
- Complies with Title 24.
Warranty
- 5-year warranty on all electronics and housing.
Specification Sheet
