led dimmable power supplies
-
Visit product page →90-130Vac/180-240Vac5%-100%0.01-100%Triac Dim.constant voltageIP205 yearsCE,ROHS,SELV60W 12V 24V Triac Dimmable LED Driver
Triac/Forward and Reverse phase (leading and trailing edge)/MLV/ ELV dimmer -
Visit product page →90-130Vac/180-240Vac5%-100%0.01-100%Triac Dim.constant voltageIP205 yearsCE,ROHS,SELV60W 12V Triac Dimmable LED Driver
Triac/Forward and Reverse phase (leading and trailing edge)/MLV/ ELV dimmer -
Visit product page →LEDQuant's M24V-40W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.
SKU Number M24V-40W-DC Applications Dimmable or non-dimmable LEDs, LED fixtures, LED panels, LED strip lights Max Load 40W Input Voltage 120V AC 60Hz Output Voltage 22.3V-24.5V DC Output Current 1.72A Efficiency 82% Length 5.03" Width 2.14" Depth 2.00" Features Acoustic humming and buzzing free, Auto-reset circuit breakers on the input and output Certifications ETL, CSA Other Compliance UL Standard 5085-1 Shipping Weight 4 pounds
Dimmers Compatibility Low-voltage TRIAC dimmers (list available)
Â
-
Visit product page →LEDQuant's M12V-40W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.
SKU Number M12V-40W-DC Applications Dimmable or non-dimmable LEDs, LED fixtures, LED panels, LED strip lights Max Load 40W Input Voltage 120V AC 60Hz Output Voltage 11.4V-12.5V DC Output Current 3.19A Efficiency 87.50% Length 5.03" Width 2.14" Depth 2.00" Features Acoustic humming and buzzing free, Auto-reset circuit breakers on the input and output Certifications ETL, CSA Other Compliance UL Standard 5085-1 Shipping Weight 4 pounds
Dimmers Compatibility Low-voltage TRIAC dimmers (list available)
Â
-
Visit product page →LEDQuant's M12V-60W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.
SKU Number M12V-60W-DC Applications Dimmable or non-dimmable LEDs, LED fixtures, LED panels, LED strip lights Max Load 60W Input Voltage 120V AC 60Hz Output Voltage 11.4V-12.5V DC Output Current 4.8A Efficiency 89.20% Length 6.06" Width 2.59" Depth 2.20" Features Acoustic humming and buzzing free, Auto-reset circuit breakers on the input and output Certifications ETL, CSA Other Compliance UL Standard 5085-1 Shipping Weight 4 pounds
Dimmers Compatibility Low-voltage TRIAC dimmers (list available)
Â
-
Visit product page →LEDQuant's M12V-100W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.
SKU Number M12V-100W-DC Applications Dimmable or non-dimmable LEDs, LED fixtures, LED panels, LED strip lights Max Load 100W Input Voltage 120V AC 60Hz Output Voltage 11.4V-12.5V DC Output Current 8.05A Efficiency 87.20% Length 9.17" Width 3.06" Depth 2.94" Features Acoustic humming and buzzing free, Auto-reset circuit breakers on the input and output Certifications ETL, CSA Other Compliance UL Standard 5085-1 Shipping Weight 6 pounds
Dimmers Compatibility Low-voltage TRIAC dimmers (list available)
-

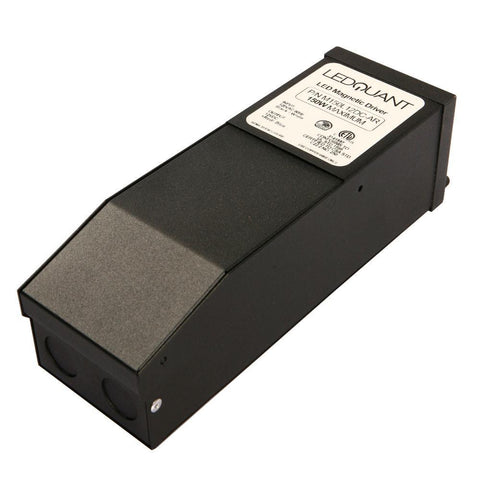

Visit product page →LEDQuant's M12V-150W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.
SKU Number M12V-150W-DC Applications Dimmable or non-dimmable LEDs, LED fixtures, LED panels, LED strip lights Max Load 150W Input Voltage 120V AC 60Hz Output Voltage 11.4V-12.5V DC Output Current 12.35A Efficiency 85.20% Length 9.17" Width 3.06" Depth 2.94" Features Acoustic humming and buzzing free, Auto-reset circuit breakers on the input and output Certifications ETL, CSA Other Compliance UL Standard 5085-1 Shipping Weight 6 pounds
Dimmers Compatibility Low-voltage TRIAC dimmers (list available)
-
Visit product page →LEDQuant's M24V-150W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.
SKU Number M24V-150W-DC Applications Dimmable or non-dimmable LEDs, LED fixtures, LED panels, LED strip lights Max Load 150W Input Voltage 120V AC 60Hz Output Voltage 22V-24.4V DC Output Current 13.3A Efficiency 85% Length 9.17" Width 3.06" Depth 2.94" Features Acoustic humming and buzzing free, Auto-reset circuit breakers on the input and output Certifications ETL, CSA Other Compliance UL Standard 5085-1 Shipping Weight 6 pounds
Dimmers Compatibility Low-voltage TRIAC dimmers (list available)
-
Visit product page →24V Electronic Dimmable Drivers
TRIAC/PHASE, 0-10V, 1-10V, POTENTIOMETER, 10V PWMÂ 5 in 1 dimming Electronic Dimmable LED driver
- Dimming : Triac / Phase, 0-10V, 1-10V
- Potentiometer
- 10V PWM
- 5 in 1 dimming Electronic
- Available in 60, 96, 150, 200, 300, 600 Wattages
Spec Sheet
60W Spec Sheet 96W Spec Sheet 150W Spec Sheet 200W Spec Sheet 300W Spec Sheet 600W Spec Sheet Dimmer Compatibility
Info
Catalog No. Description Wattage/Voltage LR36162 LED/EDRV/60W/24V/UNV/D5/JB 60W 24V LR36164
LED/EDRV/96W/24V/UNV/D5/JB 96W 24V
LR36167 LED/EDRV/150W/24V/UNV/D5/JB 150W 24V LR36168 LED/EDRV/200W/24V/UNV/D5/JB 200W 24V LR36169 LED/EDRV/300W/24V/UNV/D5/JB 300W 24V LR36177 LED/EDRV/600W/24V/UNV/D5/JB 600W 24V
