Outdoor Lights

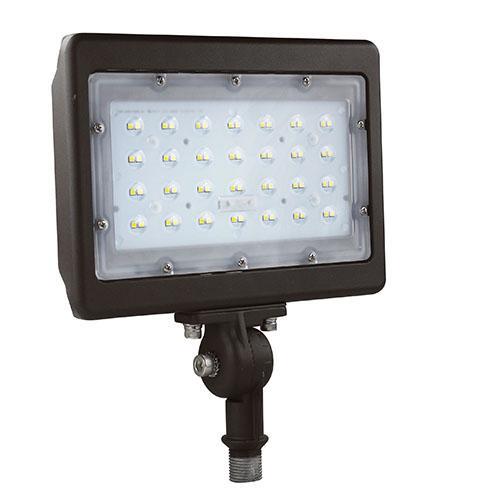

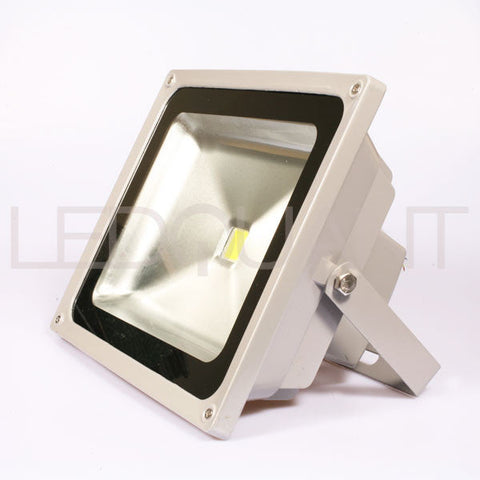

50 Watt LED Outdoor Flood Light, Cool White, Energy Efficient. Reduced energy consumption by up to 80%. 2 year guarantee.

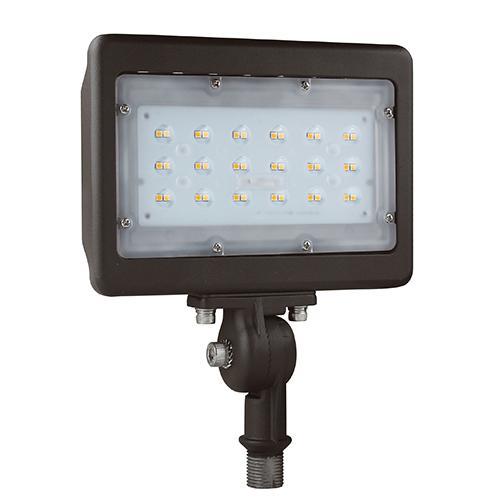

The CLMAL series is a group of premium architectural LED multi-purpose area luminaires designed to illuminate parking lots, pathways, building facades, loading docks, and a wide variety of other large, general site lighting applications. Multiple mounting options make the CLMAL a versatile luminaire for flood lighting, pole-, ground- and wall-mounted are lighting, and other outdoor lighting requirements.

 FEATURES

▪ Available in 3000k (warm white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide 372,000 hours of operation with at least 70% of initial lumen output (L70).**
▪ CLMAL-15 provides 1,593 lumens (114 lumens per watt, LPW) at 3000k; 1,603 lumens (115 LPW) at 4000k; and 1,624 lumens (116 LPW) at 5000k.*
▪ Standard optic provides an IES roadway type V distribution, or a 7V (vertical) x 7H (horizontal) NEMA floodlight distribution.
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Optional glare shields (full & half) & wire guards are available.
▪ Die cast aluminum housing with durable, dark bronze powder coat finish—at least 2 mils thick on all surfaces—and a heat-resistant polycarbonate lens.
▪ Wireway enclosure is sealed with a water-tight, silicon rubber gasket.
▪ Effective projected areas (EPA's) are:
- Front = 0.05 s.f. (knuckle) / 0.06 s.f. (yoke)
- Side = 0.07 s.f. (knuckle & yoke)
- Face = 0.20 s.f. (knuckle) / 0.23 s.f. (yoke)
▪ Easy installation in new construction or retrofit applications.


* contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.

 WARRANTY & LISTINGS

• cULus listed for wet locations in ambient temperatures from -20°C to 45°C (-4°F to 113°F).
• IP66 rated for ingress protection.
• DLC premium approved.
• Rated for 3G vibration.
• Lens is IK 8 rated for protection from external impacts.
• Salt fog tested for 1,000 hours (ASTM B117). After salt fog testing, paint rated at 9 per ASTM D1654-05 scratch test.
• Complies with FCC Part 15, class B.
• Complies with EN61000-4-5, surge immunity protection (2.5kV).
• 5-Year Warranty of all electronics and housing.

 MOUNTING OPTIONS

• Yoke-mounted option provides secure attachment to flat surfaces.
• Aluminum die-cast knuckle-mount option is installed on a junction box. Includes ½” NPS stem with locking nut.

Specification Sheet

10 Watt Outdoor LED Flood Light, RGB, Color Changing, Energy Efficient. Reduced energy consumption by up to 80%. Remote Control & Power supply included, 2 year guarantee.

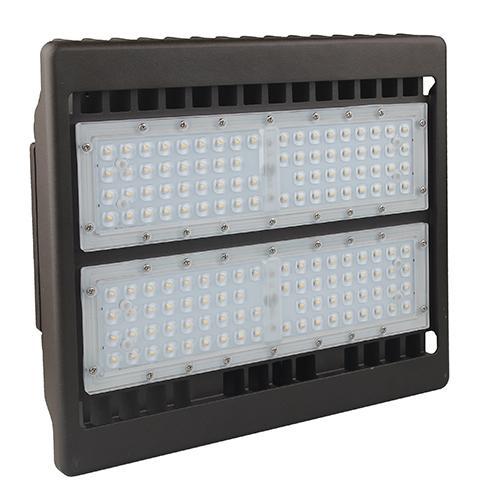

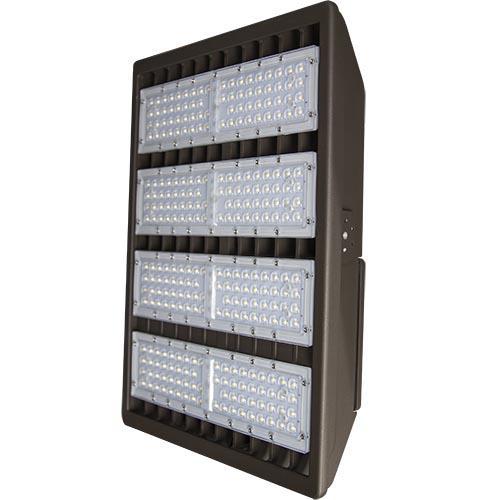

The CLMAL series is a group of premium architectural multi-purpose LED area luminaires designed to illuminate parking areas, pathways, building facades, loading docks, and a wide variety of other large, general site lighting applications. Multiple mounting options make the CLMAL a versatile luminaire for flood lighting, pole-, ground- and wall-mounted are lighting, and other outdoor lighting requirements.

 FEATURES
• Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 372,000 hours of operation with at least 70% of initial lumen output (L70).**
• Available models provide from 27,944 to 36,542 lumens, and from 117 to 131 lumens per watt (LPW).*
• IES roadway photometric distributions include types II-V.
• NEMA floodlight distributions include very narrow (3H x 3V), medium narrow (4H x 4V), medium wide (5H x 5V) & very wide (7H x 7V).
• Universal 120-277 AC voltage (50-60Hz) is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Optional glare shields (full & half) & wire guards are available.
• Optional NEMA photocell installation kit provides watertight photocell attachment to driver enclosure clover.
• Die cast aluminum housing with durable, dark bronze powder coat finish—at least 2 mils thick on all surfaces—and a heat-resistant polycarbonate lens.
• Driver enclosure is sealed with a water-tight, silicone rubber gasket.
• Effective projected areas (EPA’s) are:
- Front = 0.33 square feet
- Side = 0.49 square feet
- Face = 2.14 square feet
• Easy installation in new construction or retrofit applications.

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.

 WARRANTY & LISTINGS
▪ cULus listed for wet locations in ambient temperatures from - 20°C to 45°C (-4°F to 113°F)
▪ IP66 rated for ingress protection
▪ DLC premium approved
▪ Flicker-free per IEEE1789-2015 (no observable adverse effects of flicker at 100% light output level)
▪ Rated for 3G vibration
▪ Lens is IK 9 rated for protection from external impacts
▪ Salt fog tested for 1,000 hours (ASTM B117). After salt fog testing, paint rated at 9 per ASTM D1654-05 scratch test
▪ Complies with FCC Part 15, class B
▪ Complies with EN61000-4-5, surge immunity protection (6kV)
▪ 5-Year Warranty of all electronics and housing

Specification Sheet

The CLWM wall pack series is an economical solution for outdoor perimeter and area lighting. With a builtin photocell, and a polycarbonate housing and lens, the CLWM is a versatile and durable outdoor luminaire. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID wall packs.

 FEATURES
• Available in 4000k and 5000k color temperatures.*
• 06-LEDWPPC20W delivers 1,031 lumens and 45 lumens per watt (LPW).*
• Universal 120-277 AC voltage (50-60Hz) is standard.
• Built-in, button-type photocell (120 AC voltage only).
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 70.
• Polycarbonate housing with a painted, die cast aluminum back plate, and a seamless gasket to prevent leaks.
• Fluted, polycarbonate lens for even light distribution.
• Easy installation in new construction or retrofit.

* Contact factory for other color temperatures and lumen packages.

  WARRANTY/LISTINGS
• cULus listed for wet locations (-20°C to 40°C / -4°F to 104°F).
• IP54 rates.
• Complies with FCC Part 15, Class B.
• 3-year warranty on all electronics and housing.

Specification Sheet

The LED Shoebox Light series can be used in outdoor lighting (wet location certified). Excellent for parking lots, buildings, courtyards, industrial areas, sidewalks, schools and many other applications.

FEATURES:

• Lumileds LED: High lumen efficiency and long working life
• High efficiency LED Driver
• Input voltage AC120-277V
• High quality die cast aluminum design for excellent heat dissipation
• Optics designed to improve the light utilization and evenness

The LED Shoebox Light series can be used in outdoor lighting (wet location certified). Excellent for parking lots, buildings, courtyards, industrial areas, sidewalks, schools and many other applications.

FEATURES:

• Lumileds LED: High lumen efficiency and long working life
• High efficiency LED Driver
• Input voltage AC120-277V
• High quality die cast aluminum design for excellent heat dissipation
• Optics designed to improve the light utilization and evenness

The LED Shoebox Light series can be used in outdoor lighting (wet location certified). Excellent for parking lots, buildings, courtyards, industrial areas, sidewalks, schools and many other applications.

FEATURES:

• Lumileds LED: High lumen efficiency and long working life
• High efficiency LED Driver
• Input voltage AC277-480V
• High quality die cast aluminum design for excellent heat dissipation
• Optics designed to improve the light utilization and evenness

The LED Shoebox Light series can be used in outdoor lighting (wet location certified). Excellent for parking lots, buildings, courtyards, industrial areas, sidewalks, schools and many other applications.

FEATURES:

• Lumileds LED: High lumen efficiency and long working life
• High efficiency LED Driver
• Input voltage AC277-480V
• High quality die cast aluminum design for excellent heat dissipation
• Optics designed to improve the light utilization and evenness

The LED Shoebox Light series can be used in outdoor lighting (wet location certified). Excellent for parking lots, buildings, courtyards, industrial areas, sidewalks, schools and many other applications.

FEATURES:

• Lumileds LED: High lumen efficiency and long working life
• High efficiency LED Driver
• Input voltage AC277-480V
• High quality die cast aluminum design for excellent heat dissipation
• Optics designed to improve the light utilization and evenness

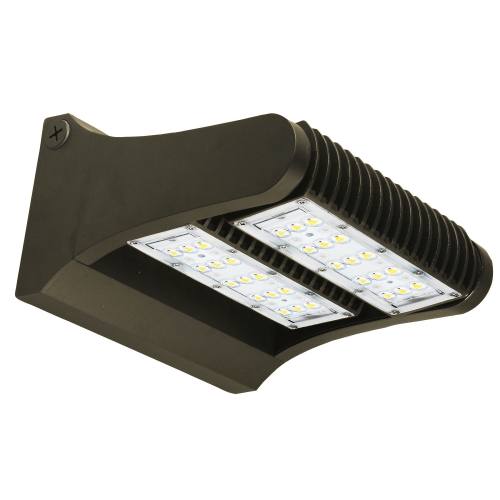

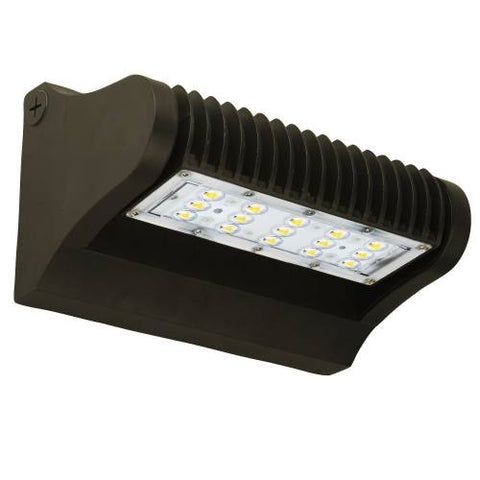

The Rotatable Wall Pack Light fixture has an adjustable design for outdoor landscape, industrial or wall lighting applications. The fixture is made with a die-cast aluminum alloy housing and features an anti-corrosion finish. It combines the latest LED technology that provides up to 130lm/w brightness with a waterproof, IP65 rated, led driver. The fixture is ideal for replacing metal halide or high-pressure sodium light fixtures.

The Rotatable Wall Pack Light fixture has an adjustable design for outdoor landscape, industrial or wall lighting applications. The fixture is made with a die-cast aluminum alloy housing and features an anti-corrosion finish. It combines the latest LED technology that provides up to 130lm/w brightness with a waterproof, IP65 rated, led driver. The fixture is ideal for replacing metal halide or high-pressure sodium light fixtures.

WareLight LED Street Light and Cobra Head series provides uncompromising optical performance and outstanding versatility for a wide variety of outdoor area and roadway applications.

This fixture features Lumileds LED' for high luminous efficiency and long working life. It has a high efficiency LED driver with an input voltage of  AC100-277V. The die cast aluminum design is high quality and provides better cooling for LED Tj < 85℃. The excellent optics design greatly improves the light utilization and evenness.

The shoebox LED parking lot light use best die-casting aluminum housing, anti-corrosion painting IP65 design. High-performance illumination that lasts 50,000 hours.

The LED Shoebox Light series can be used in outdoor lighting (wet location certified). Excellent for parking lots, buildings, courtyards, industrial areas, sidewalks, schools and many other applications.

FEATURES:

• Lumileds LED: High lumen efficiency and long working life
• High efficiency LED Driver
• Input voltage AC277-480V
• High quality die cast aluminum design for excellent heat dissipation
• Optics designed to improve the light utilization and evenness

Our Area Light/Shoebox Series is the best option to replace 100W to 1000W metal halide luminaires. The slim profile design delivers maximum efficiency. A wide range of lumen packages for any type of applications. With extensive selection of accessories, including photocell receptacles, motion sensor, mountings and finish colors. Ideal for commercial parking lots, car dealership, walk ways, street lighting, and places where much needed light.

FEATURES

• Wattage: 150W

• CCT: 4000K or 5000K
• Lumens: 21000 LM
• CRI: 70
• Input voltage: 120-277V
• Finish: Dark Bronze
• Distribution: Type 3
• LED high luminous efficiency and long working life.

• High efficiency LED Driver, the wide range input voltage AC 120-277V.
• Die-cast aluminum cooling design, high quality and better cooling for LED Tj < 85℃.
• Excellent optics design, greatly improve the light utilization and evenness.
• Dimming: 0-10Vdc

• Warranty: 5 years

• Life Span 50,000 hours
• Listings: UL Listed, DLC Premium, Wet Location, ROHS

Our Area Light/Shoebox Series is the best option to replace 100W to 1000W metal halide luminaires. The slim profile design delivers maximum efficiency. A wide range of lumen packages for any type of applications. With extensive selection of accessories, including photocell receptacles, motion sensor, mountings and finish colors. Ideal for commercial parking lots, car dealership, walk ways, street lighting, and places where much needed light.

FEATURES

• Wattage: 300W

• CCT: 4000K or 5000K
• Lumens: 42132 LM
• CRI: 70
• Input voltage: 120-277V
• Finish: Dark Bronze
• Distribution: Type 3
• LED high luminous efficiency and long working life.

• High efficiency LED Driver, the wide range input voltage AC 120-277V.
• Die-cast aluminum cooling design, high quality and better cooling for LED Tj < 85℃.
• Excellent optics design, greatly improve the light utilization and evenness.
• Dimming: 0-10Vdc

• Warranty: 5 years

• Life Span 50,000 hours
• Listings: UL Listed, DLC Premium, Wet Location, ROHS

The Selectable LED Shoebox Lighting Series can be widely used for Outdoor Excellent for Parking Lots, Pedestrian Walkways, Roadways, Tennis Courts, Basketball Courts, Stadiums, Arenas, Schools, Residential Areas and many other applications.

FEATURES

• Wattage Selectable: 60W/90W/120W/150W

• CCT Selectable: 4000K / 5000K
• Lumens: 21021 LM
• CRI: 70
• Input voltage: 120-277V
• Finish: Dark Bronze
• Optical design, greatly improved the light utilization and evenness
• High efficiency LED Driver, voltage AC120-277V
• Cast Aluminum design, better cooling, light quality, LED Tj <85°C
• Photocell Control & Motion Sensor (Optional)
• 1-10V dimming (10%-100%) standard
• Warranty: 5 years

• Life Span 75,000 hours
• Listings: UL Listed, DLC Premium
• Compatible with most Lutron and Leviton dimmers

The Selectable LED Shoebox Lighting Series can be widely used for Outdoor Excellent for Parking Lots, Pedestrian Walkways, Roadways, Tennis Courts, Basketball Courts, Stadiums, Arenas, Schools, Residential Areas and many other applications.

FEATURES

• Wattage Selectable: 120W/180W/240W/300W

• CCT Selectable: 4000K / 5000K
• Lumens: 44714 LM
• CRI: 70
• Input voltage: 120-277V
• Finish: Dark Bronze
• Optical design, greatly improved the light utilization and evenness
• High efficiency LED Driver, voltage AC120-277V
• Cast Aluminum design, better cooling, light quality, LED Tj <85°C
• Photocell Control & Motion Sensor (Optional)
• 1-10V dimming (10%-100%) standard
• Warranty: 5 years

• Life Span 75,000 hours
• Listings: UL Listed, DLC Premium
• Compatible with most Lutron and Leviton dimmers

The Selectable LED Shoebox Lighting Series can be widely used for Outdoor Excellent for Parking Lots, Pedestrian Walkways, Roadways, Tennis Courts, Basketball Courts, Stadiums, Arenas, Schools, Residential Areas and many other applications.

FEATURES

• Wattage Selectable: 120W/180W/240W/300W

• CCT Selectable: 4000K / 5000K
• Lumens: 44031 LM
• CRI: 70
• Input voltage: 277-480V
• Finish: Dark Bronze
• Optical design, greatly improved the light utilization and evenness
• High efficiency LED Driver, voltage AC277-480V
• Cast Aluminum design, better cooling, light quality, LED Tj <85°C
• Photocell Control & Motion Sensor (Optional)
• 1-10V dimming (10%-100%) standard
• Warranty: 5 years

• Life Span 75,000 hours
• Listings: UL Listed, DLC Premium
• Compatible with most Lutron and Leviton dimmers

Our Area Light/Shoebox Series is the best option to replace 100W to 1000W metal halide luminaires. The slim profile design delivers maximum efficiency. A wide range of lumen packages for any type of applications. With extensive selection of accessories, including photocell receptacles, motion sensor, mountings and finish colors. Ideal for commercial parking lots, car dealership, walk ways, street lighting, and places where much needed light.

FEATURES

• Wattage: 60W

• CCT: 4000K or 5000K
• Lumens: 8700 LM
• CRI: 70
• Input voltage: 277-480V
• Finish: Dark Bronze
• Distribution: Type 3
• LED high luminous efficiency and long working life.

• High efficiency LED Driver, the wide range input voltage AC 277-480V.
• Die-cast aluminum cooling design, high quality and better cooling for LED Tj < 85℃.
• Excellent optics design, greatly improve the light utilization and evenness.
• Dimming: 0-10Vdc

• Warranty: 5 years

• Life Span 50,000 hours
• Listings: UL Listed, DLC Premium, Wet Location, ROHS

WSD LED Flood Lighting series can be widely used in indoor or outdoor lighting (wet location). Ideal for excellent for museums, art galleries, shopping malls, office buildings, the lawn, walls, and many more applications.

FEATURES

• Wattage: 100W

• CCT: 4000K or 5000K
• Lumens: 14500 LM
• CRI: 70
• Input voltage: 120-277V
• Finish: Dark Bronze
• Lumileds LED, high luminous efficiency and long working life.
• High efficiency LED Driver, the wide range input voltage AC120-277V.
• Optics design, greatly improve the light utilization and evenness.
• Die-cast aluminum cooling design, high quality and better cooling for LED Tj < 85℃.

• Warranty: 5 years

• Life Span 75,000 hours
• Listings: UL Listed, DLC Premium, ROHS, Wet Location

WSD LED Flood Lighting series can be widely used in indoor or outdoor lighting (wet location). Ideal for excellent for museums, art galleries, shopping malls, office buildings, the lawn, walls, and many more applications.

FEATURES

• Wattage: 150W

• CCT: 4000K or 5000K
• Lumens: 21750 LM
• CRI: 70
• Input voltage: 120-277V
• Finish: Dark Bronze
• Lumileds LED, high luminous efficiency and long working life.
• High efficiency LED Driver, the wide range input voltage AC120-277V.
• Optics design, greatly improve the light utilization and evenness.
• Die-cast aluminum cooling design, high quality and better cooling for LED Tj < 85℃.

• Warranty: 5 years

• Life Span 75,000 hours
• Listings: UL Listed, DLC Premium, ROHS, Wet Location

FEATURES:

• Wattage Selectable: 150W/100W/80W
• Voltage: 120-277V
• Lumens: 12000/13000/22500LM
• CCT Selectable: 3000K/4000K/5000K
• CRI: 80
• 50,000 hours lifetime
• 0-10V dimming
• Working Temperature: -20°C to 45°C
• Ratings: UL Listed, DLC Premium, IP65
• BUG: B3-U0-G3
• Warranty: 5 years warranty
• Low profile housing with enhanced thermal heat sink
• High brightness lumileds LED chips.

APPLICATIONS:

• Warehouses
• Stadiums
• Factories
• Parking Lots
• Supermarkets
• Shopping Malls
• Logistic Centers
• Auto dealerships

The WSD LED INC Series Straight Square Steel poles are built from high strength steel tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities.

FEATURES:

• 1 Year Pole Warranty
• FINISH: Textured architectural bronze powder-coat finish, baked to ensure maximum paint adhesion, hardness and durability.
• ANCHOR BOLTS: Anchor bolts are not included, sized based on pole data charts for the selected pole size.
• HAND HOLE: Cast iron reinforced hand hole and cover with ground screw.
• BASE COVER: Poles are provided with a two-piece formed steel base cover that is easily assembled and fitted over pole base.
• SURFACE TREATMENT: Hot-dip galvanizing.


The WSD LED INC Series Straight Square Steel poles are built from high strength steel tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities.

FEATURES:

• Warranty: 1 year
• FINISH: Textured architectural bronze powder-coat finish, baked to ensure maximum paint adhesion, hardness and durability.
• ANCHOR BOLTS: Anchor bolts are not included, sized based on pole data charts for the selected pole size.
• HAND HOLE: Cast iron reinforced hand hole and cover with ground screw.
• BASE COVER: Poles are provided with a two-piece formed steel base cover that is easily assembled and fitted over pole base.
• SURFACE TREATMENT: Hot-dip galvanizing.


The WSD LED INC Series Straight Square Steel poles are built from high strength steel tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities.

FEATURES:

• 1 Year Pole Warranty
• FINISH: Textured architectural bronze powder-coat finish, baked to ensure maximum paint adhesion, hardness and durability.
• ANCHOR BOLTS: Anchor bolts are not included, sized based on pole data charts for the selected pole size.
• HAND HOLE: Cast iron reinforced hand hole and cover with ground screw.
• BASE COVER: Poles are provided with a two-piece formed steel base cover that is easily assembled and fitted over pole base.
• SURFACE TREATMENT: Hot-dip galvanizing.


The WSD LED INC Series Straight Square Steel poles are built from high strength steel tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities.

FEATURES:

• 1 Year Pole Warranty
• FINISH: Textured architectural bronze powder-coat finish, baked to ensure maximum paint adhesion, hardness and durability.
• ANCHOR BOLTS: Anchor bolts are not included, sized based on pole data charts for the selected pole size.
• HAND HOLE: Cast iron reinforced hand hole and cover with ground screw.
• BASE COVER: Poles are provided with a two-piece formed steel base cover that is easily assembled and fitted over pole base.
• SURFACE TREATMENT: Hot-dip galvanizing.


The WSD LED INC Series Straight Square Steel poles are built from high strength steel tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities.

FEATURES:

• 1 Year Pole Warranty
• FINISH: Textured architectural bronze powder-coat finish, baked to ensure maximum paint adhesion, hardness and durability.
• ANCHOR BOLTS: Anchor bolts are not included, sized based on pole data charts for the selected pole size.
• HAND HOLE: Cast iron reinforced hand hole and cover with ground screw.
• BASE COVER: Poles are provided with a two-piece formed steel base cover that is easily assembled and fitted over pole base.
• SURFACE TREATMENT: Hot-dip galvanizing.


The WSD LED INC Series Direct Burial Straight Square Steel poles are built from high strength steel tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 10 to 30 feet can be used based on selected luminaire application.

The WSD LED INC Series Direct Burial Straight Square Steel poles are built from high strength steel tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 10 to 30 feet can be used based on selected luminaire application.
