Parking Lot Lights & Poles

The LED Shoebox Light series can be used in outdoor lighting (wet location certified). Excellent for parking lots, buildings, courtyards, industrial areas, sidewalks, schools and many other applications.

FEATURES:

• Lumileds LED: High lumen efficiency and long working life
• High efficiency LED Driver
• Input voltage AC120-277V
• High quality die cast aluminum design for excellent heat dissipation
• Optics designed to improve the light utilization and evenness

WISDOM LED Post Top Lighting series can be widely used as indoor or outdoor lighting (Wet location). Excellent for lawns, courtyards, roadways and many other applications.

Features:

• Wattage: 100W

• CCT：4000K or 5000K
• Lumens: 13500  LM
• CRI: 70
• Light Source: Lumileds
• Driver:  WeledPower
• LED high luminous efficiency and long working life.
• High efficiency LED Driver, the wide range input voltage AC 120-277V.
• Die-cast aluminum cooling design, high quality and better cooling for LED Tj < 85℃.
• Excellent optics design, greatly improve the light utilization and evenness.
• DIMMING: 0-10V dimming 12V Auxiliary power

• WARRANTY: 5 year limited
• LIFE SPAN: over 50,000 hrs

Our Area Light/Shoebox Series is the best option to replace 100W to 1000W metal halide luminaires. The slim profile design delivers maximum efficiency. A wide range of lumen packages for any type of applications. With extensive selection of accessories, including photocell receptacles, motion sensor, mountings and finish colors. Ideal for commercial parking lots, car dealership, walk ways, street lighting, and places where much needed light.

FEATURES

• Wattage: 100W

• CCT: 4000K or 5000K
• Lumens: 13000 LM
• CRI: 70
• Input voltage: 120-277V
• Finish: Dark Bronze
• Distribution: Type 3
• LED high luminous efficiency and long working life.

• High efficiency LED Driver, the wide range input voltage AC 120-277V
• Die-cast aluminum cooling design, high quality and better cooling for LED Tj < 85℃.
• Excellent optics design, greatly improve the light utilization and evenness.
• Dimming: 0-10Vdc

• Warranty: 5 years

• Life Span 50,000 hours
• Listings: UL Listed, DLC Premium, Wet Location, ROHS

FEATURES:

• Wattage Selectable: 150W/100W/80W
• Voltage: 120-277V
• Lumens: 12000/13000/22500LM
• CCT Selectable: 3000K/4000K/5000K
• CRI: 80
• 50,000 hours lifetime
• 0-10V dimming
• Working Temperature: -20°C to 45°C
• Ratings: UL Listed, DLC Premium, IP65
• BUG: B3-U0-G3
• Warranty: 5 years warranty
• Low profile housing with enhanced thermal heat sink
• High brightness lumileds LED chips.

APPLICATIONS:

• Warehouses
• Stadiums
• Factories
• Parking Lots
• Supermarkets
• Shopping Malls
• Logistic Centers
• Auto dealerships

WISDOM LED Post Top Lighting series can be widely used as indoor or outdoor lighting (Wet location). Excellent for lawns, courtyards, roadways and many other applications.

Features:

• Wattage: 150W

• CCT：4000K or 5000K
• Lumens: 19800  LM
• CRI: 70
• Light Source: Lumileds
• Driver:  WeledPower
• LED high luminous efficiency and long working life.
• High efficiency LED Driver, the wide range input voltage AC 120-277V.
• Die-cast aluminum cooling design, high quality and better cooling for LED Tj < 85℃.
• Excellent optics design, greatly improve the light utilization and evenness.
• DIMMING: 0-10V dimming 12V Auxiliary power

• WARRANTY: 5 year limited
• LIFE SPAN: over 50,000 hrs

WareLight LED Street Light and Cobra Head series provides uncompromising optical performance and outstanding versatility for a wide variety of outdoor area and roadway applications.

This fixture features Lumileds LED' for high luminous efficiency and long working life. It has a high efficiency LED driver with an input voltage of  AC100-277V. The die cast aluminum design is high quality and provides better cooling for LED Tj < 85℃. The excellent optics design greatly improves the light utilization and evenness.

The LED Shoebox Light series can be used in outdoor lighting (wet location certified). Excellent for parking lots, buildings, courtyards, industrial areas, sidewalks, schools and many other applications.

FEATURES:

• Lumileds LED: High lumen efficiency and long working life
• High efficiency LED Driver
• Input voltage AC120-277V
• High quality die cast aluminum design for excellent heat dissipation
• Optics designed to improve the light utilization and evenness

Our Area Light/Shoebox Series is the best option to replace 100W to 1000W metal halide luminaires. The slim profile design delivers maximum efficiency. A wide range of lumen packages for any type of applications. With extensive selection of accessories, including photocell receptacles, motion sensor, mountings and finish colors. Ideal for commercial parking lots, car dealership, walk ways, street lighting, and places where much needed light.

FEATURES

• Wattage: 150W

• CCT: 4000K or 5000K
• Lumens: 21000 LM
• CRI: 70
• Input voltage: 120-277V
• Finish: Dark Bronze
• Distribution: Type 3
• LED high luminous efficiency and long working life.

• High efficiency LED Driver, the wide range input voltage AC 120-277V.
• Die-cast aluminum cooling design, high quality and better cooling for LED Tj < 85℃.
• Excellent optics design, greatly improve the light utilization and evenness.
• Dimming: 0-10Vdc

• Warranty: 5 years

• Life Span 50,000 hours
• Listings: UL Listed, DLC Premium, Wet Location, ROHS

The Selectable LED Shoebox Lighting Series can be widely used for Outdoor Excellent for Parking Lots, Pedestrian Walkways, Roadways, Tennis Courts, Basketball Courts, Stadiums, Arenas, Schools, Residential Areas and many other applications.

FEATURES

• Wattage Selectable: 60W/90W/120W/150W

• CCT Selectable: 4000K / 5000K
• Lumens: 21021 LM
• CRI: 70
• Input voltage: 120-277V
• Finish: Dark Bronze
• Optical design, greatly improved the light utilization and evenness
• High efficiency LED Driver, voltage AC120-277V
• Cast Aluminum design, better cooling, light quality, LED Tj <85°C
• Photocell Control & Motion Sensor (Optional)
• 1-10V dimming (10%-100%) standard
• Warranty: 5 years

• Life Span 75,000 hours
• Listings: UL Listed, DLC Premium
• Compatible with most Lutron and Leviton dimmers

The LED Shoebox Light series can be used in outdoor lighting (wet location certified). Excellent for parking lots, buildings, courtyards, industrial areas, sidewalks, schools and many other applications.

FEATURES:

• Lumileds LED: High lumen efficiency and long working life
• High efficiency LED Driver
• Input voltage AC277-480V
• High quality die cast aluminum design for excellent heat dissipation
• Optics designed to improve the light utilization and evenness

The shoebox LED parking lot light use best die-casting aluminum housing, anti-corrosion painting IP65 design. High-performance illumination that lasts 50,000 hours.

The Selectable LED Shoebox Lighting Series can be widely used for Outdoor Excellent for Parking Lots, Pedestrian Walkways, Roadways, Tennis Courts, Basketball Courts, Stadiums, Arenas, Schools, Residential Areas and many other applications.

FEATURES

• Wattage Selectable: 60W/90W/120W/150W

• CCT Selectable: 4000K / 5000K
• Lumens: 20929 LM
• CRI: 70
• Input voltage: 277-480V
• Finish: Dark Bronze
• Optical design, greatly improved the light utilization and evenness
• High efficiency LED Driver, voltage AC277-480V
• Cast Aluminum design, better cooling, light quality, LED Tj <85°C
• Photocell Control & Motion Sensor (Optional)
• 1-10V dimming (10%-100%) standard
• Warranty: 5 years

• Life Span 75,000 hours
• Listings: UL Listed, DLC Premium
• Compatible with most Lutron and Leviton dimmers

The Square Post Top LED Lighting Series can be widely used for outdoor lighting (Wet Location). Excellent for lawns, courtyards, roadways and many other applications.

Features:

• Wattage: 60W

• CCT：4000K or 5000K
• Lumens: 8520 LM
• CRI: 70
• Light Source: SMD 2835 LEDs
• Driver:  Weled Power
• Optic design, greatly improved the light, utilization and evenness.
• High efficiency LED Driver, the wide range input voltage AC 120-277V.

• Cast aluminum design, better cooling, light quality, LED Tj < 85℃.
• DIMMING: 0-10V dimming

• WARRANTY: 5 year limited
• LIFE SPAN: over 75,000 hrs

FEATURES:

• Wattage Selectable: 200W/240W/300W
• Voltage: 120-277V
• Lumens: 30000/36000/45000LM
• CCT Selectable: 3000K/4000K/5000K
• CRI: 80
• 50,000 hours lifetime
• 0-10V dimming
• Working Temperature: -20°C to 45°C
• Ratings: UL Listed, DLC Premium, IP65
• BUG: B3-U0-G4
• Warranty: 5 years warranty
• Low profile housing with enhanced thermal heat sink
• High brightness lumileds LED chips.

APPLICATIONS:

• Warehouses
• Stadiums
• Factories
• Parking Lots
• Supermarkets
• Shopping Malls
• Logistic Centers
• Auto dealerships

The Hourglass Post Top Light LED Lighting Series can be widely used outdoors (Wet Location). Excellent for lawns, courtyards, roadways and many other applications

Features:

• Wattage: 60W

• CCT：5000K
• Lumens: 8010 LM
• CRI: 70
• Light Source: SMD 2835 LEDs
• Driver:  WeledPower
• LED high luminous efficiency and long working life.
• High efficiency LED Driver, the wide range input voltage AC 120-277V.
• Die-cast aluminum cooling design, high quality and better cooling for LED Tj < 85℃.
• Excellent optics design, greatly improve the light utilization and evenness.
• DIMMING: 0-10V dimming 12V Auxiliary power

• WARRANTY: 5 year limited
• LIFE SPAN: over 50,000 hrs

The Hourglass Post Top Light LED Lighting Series can be widely used outdoors (Wet Location). Excellent for lawns, courtyards, roadways and many other applications

Features:

• Wattage: 100W

• CCT：5000K
• Lumens: 13210 LM
• CRI: 70
• Light Source: SMD 2835 LEDs
• Driver:  Weled Power
• Optic design, greatly improved the light, utilization and evenness.
• High efficiency LED Driver, the wide range input voltage AC 120-277V.

• Cast aluminum design, better cooling, light quality, LED Tj < 85℃.
• DIMMING: 0-10V dimming

• WARRANTY: 5 year limited
• LIFE SPAN: over 75,000 hrs

The LED Shoebox Light series can be used in outdoor lighting (wet location certified). Excellent for parking lots, buildings, courtyards, industrial areas, sidewalks, schools and many other applications.

FEATURES:

• Lumileds LED: High lumen efficiency and long working life
• High efficiency LED Driver
• Input voltage AC120-277V
• High quality die cast aluminum design for excellent heat dissipation
• Optics designed to improve the light utilization and evenness

The Selectable LED Shoebox Lighting Series can be widely used for Outdoor Excellent for Parking Lots, Pedestrian Walkways, Roadways, Tennis Courts, Basketball Courts, Stadiums, Arenas, Schools, Residential Areas and many other applications.

FEATURES

• Wattage Selectable: 120W/180W/240W/300W

• CCT Selectable: 4000K / 5000K
• Lumens: 44714 LM
• CRI: 70
• Input voltage: 120-277V
• Finish: Dark Bronze
• Optical design, greatly improved the light utilization and evenness
• High efficiency LED Driver, voltage AC120-277V
• Cast Aluminum design, better cooling, light quality, LED Tj <85°C
• Photocell Control & Motion Sensor (Optional)
• 1-10V dimming (10%-100%) standard
• Warranty: 5 years

• Life Span 75,000 hours
• Listings: UL Listed, DLC Premium
• Compatible with most Lutron and Leviton dimmers

Our Area Light/Shoebox Series is the best option to replace 100W to 1000W metal halide luminaires. The slim profile design delivers maximum efficiency. A wide range of lumen packages for any type of applications. With extensive selection of accessories, including photocell receptacles, motion sensor, mountings and finish colors. Ideal for commercial parking lots, car dealership, walk ways, street lighting, and places where much needed light.

FEATURES

• Wattage: 300W

• CCT: 4000K or 5000K
• Lumens: 42132 LM
• CRI: 70
• Input voltage: 120-277V
• Finish: Dark Bronze
• Distribution: Type 3
• LED high luminous efficiency and long working life.

• High efficiency LED Driver, the wide range input voltage AC 120-277V.
• Die-cast aluminum cooling design, high quality and better cooling for LED Tj < 85℃.
• Excellent optics design, greatly improve the light utilization and evenness.
• Dimming: 0-10Vdc

• Warranty: 5 years

• Life Span 50,000 hours
• Listings: UL Listed, DLC Premium, Wet Location, ROHS

The WSD LED INC Series Straight Square Steel poles are built from high strength steel tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities.

FEATURES:

• Warranty: 1 year
• FINISH: Textured architectural bronze powder-coat finish, baked to ensure maximum paint adhesion, hardness and durability.
• ANCHOR BOLTS: Anchor bolts are not included, sized based on pole data charts for the selected pole size.
• HAND HOLE: Cast iron reinforced hand hole and cover with ground screw.
• BASE COVER: Poles are provided with a two-piece formed steel base cover that is easily assembled and fitted over pole base.
• SURFACE TREATMENT: Hot-dip galvanizing.


The WSD LED INC Series Straight Square Steel poles are built from high strength steel tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities.

FEATURES:

• 1 Year Pole Warranty
• FINISH: Textured architectural bronze powder-coat finish, baked to ensure maximum paint adhesion, hardness and durability.
• ANCHOR BOLTS: Anchor bolts are not included, sized based on pole data charts for the selected pole size.
• HAND HOLE: Cast iron reinforced hand hole and cover with ground screw.
• BASE COVER: Poles are provided with a two-piece formed steel base cover that is easily assembled and fitted over pole base.
• SURFACE TREATMENT: Hot-dip galvanizing.


The WSD LED INC Series Direct Burial Straight Round poles are built from high strength steel tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 10 to 30 feet can be used based on selected luminaire application.

The WSD LED INC Series Direct Burial Straight Square Steel poles are built from high strength steel tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 10 to 30 feet can be used based on selected luminaire application.

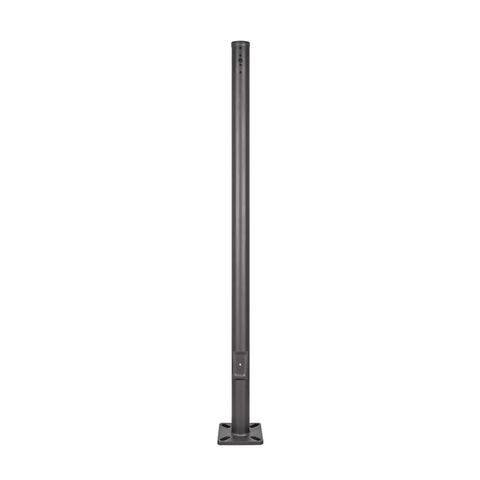

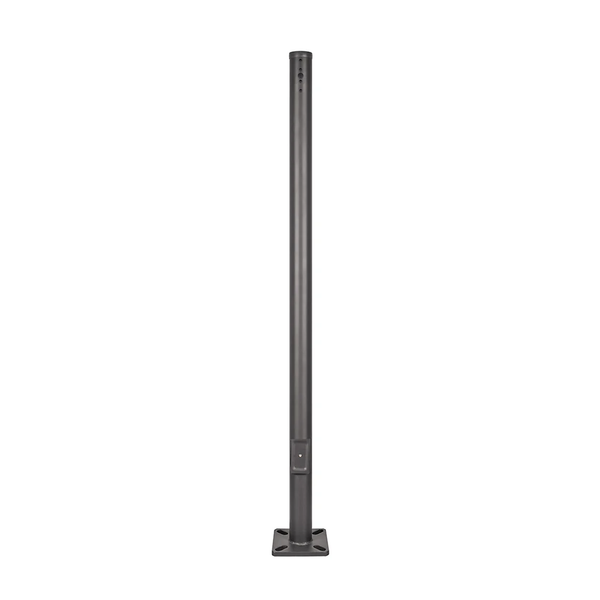

The WISDOM Series Round Steel Poles are built from high strength steel round tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 10 to 30 feet can be used based on selected luminaire application.

The WSD LED INC Series Direct Burial Straight Square Steel poles are built from high strength steel tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 10 to 30 feet can be used based on selected luminaire application.

The WSD LED INC Series Straight Square Steel poles are built from high strength steel tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities.

FEATURES:

• Warranty: 1 Year Pole Warranty
• FINISH: Textured architectural bronze powder-coat finish, baked to ensure maximum paint adhesion, hardness and durability.
• ANCHOR BOLTS: Anchor bolts are not included, sized based on pole data charts for the selected pole size.
• HAND HOLE: Cast iron reinforced hand hole and cover with ground screw.
• BASE COVER: Poles are provided with a two-piece formed steel base cover that is easily assembled and fitted over pole base.
• SURFACE TREATMENT: Hot-dip galvanizing.


The WSD LED INC Series Straight Square Steel poles are built from high strength steel tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities.

FEATURES:

• 1 Year Pole Warranty
• FINISH: Textured architectural bronze powder-coat finish, baked to ensure maximum paint adhesion, hardness and durability.
• ANCHOR BOLTS: Anchor bolts are not included, sized based on pole data charts for the selected pole size.
• HAND HOLE: Cast iron reinforced hand hole and cover with ground screw.
• BASE COVER: Poles are provided with a two-piece formed steel base cover that is easily assembled and fitted over pole base.
• SURFACE TREATMENT: Hot-dip galvanizing.


The WSD LED INC Series Round Tapered Steel poles are built from high strength steel tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 20 to 30 feet can be used based on selected luminaire application.

The WISDOM Series Round Steel Poles are built from high strength steel round tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 10 to 30 feet can be used based on selected luminaire application.

The WSD LED INC Series Direct Burial Straight Round poles are built from high strength steel tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 10 to 30 feet can be used based on selected luminaire application.

The WISDOM Series Round Aluminum Poles are built from high strength aluminum round tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 10 to 30 feet can be used based on selected luminaire application.

The WSD LED INC Series Straight Square Steel poles are built from high strength steel tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities.

FEATURES:

• 1 Year Pole Warranty
• FINISH: Textured architectural bronze powder-coat finish, baked to ensure maximum paint adhesion, hardness and durability.
• ANCHOR BOLTS: Anchor bolts are not included, sized based on pole data charts for the selected pole size.
• HAND HOLE: Cast iron reinforced hand hole and cover with ground screw.
• BASE COVER: Poles are provided with a two-piece formed steel base cover that is easily assembled and fitted over pole base.
• SURFACE TREATMENT: Hot-dip galvanizing.
