vapor tight & wrap around
-

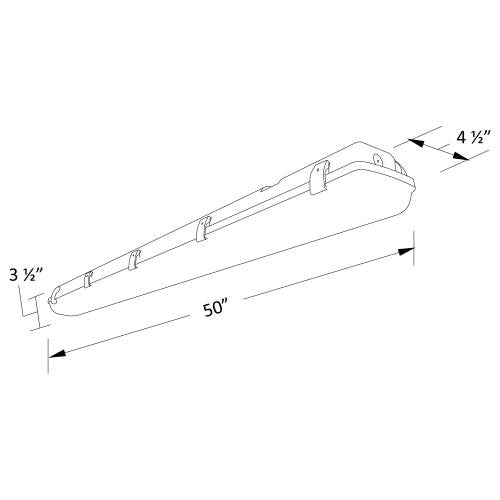

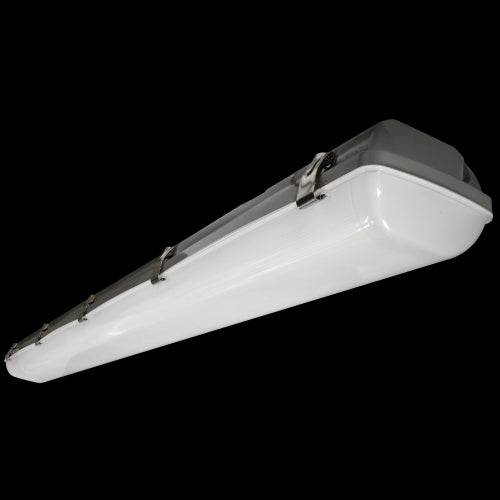

Visit product page →The CLVTL-52 is a surface-mounted LED luminaire, which is designed to prevent the intrusion of moisture and dust. The CLVTL-52 provides general ambient lighting in commercial and industrial settings, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.
 FEATURESÂ
• Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 122,000 hours of operation with at least 70% of initial lumen output (L70).**
• Provides 5,307 luminaire lumens (100 LPW) at 3500k;Â
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• Power factor > 0.95.
• Total harmonic distortion < 10%.
• Color rendering index > 80.
• ABS (acrylonitrile butadiene styrene) housing and polycarbonate lens
• Stainless steel mounting bracket and lens clips are standard.
• Easy installation in new construction or retrofit.*Contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours. WARRANTY/LISTINGÂ
• cULus listed for wet locations (-20°C to 50°C / -4°F to 122°F).
• IP65 rated for ingress protection.
• DLC premium approved.
• Complies with FCC Part 15, class A.
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with IEC 61000-4-2 level 2 (4kV) electrostatic discharge (ESD).
• Complies with RoHS (Restriction on Hazardous Substances) requirements.
• 5-year warranty of all electronics and housing. -
Visit product page →The CLVTL-40 is a surface-mounted LED luminaire, which is designed to prevent the intrusion of moisture and dust. The CLVTL-40 provides general ambient lighting in commercial and industrial settings, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.
 FEATURESÂ
• Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 122,000 hours of operation with at least 70% of initial lumen output (L70).**
• Choose from 4,793 luminaire lumens (120 LPW) at 3500k; 5,200 luminaire lumens (130 LPW) at 4000k; and 5,240 luminaire lumens (131 LPW) at 5000k.*
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• Power factor > 0.95.
• Total harmonic distortion < 10%.
• Color rendering index > 80.
• ABS (acrylonitrile butadiene styrene) housing and polycarbonate lens
• Stainless steel mounting bracket and lens clips are standard.
• Easy installation in new construction or retrofit.*Contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours. WARRANTY/LISTINGÂ
• cULus listed for wet locations (-20°C to 50°C / -4°F to 122°F).
• IP65 rated for ingress protection.
• DLC premium approved.
• Complies with FCC Part 15, class A.
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with IEC 61000-4-2 level 2 (4kV) electrostatic discharge (ESD).
• Complies with RoHS (Restriction on Hazardous Substances) requirements.
• 5-year warranty of all electronics and housing. -

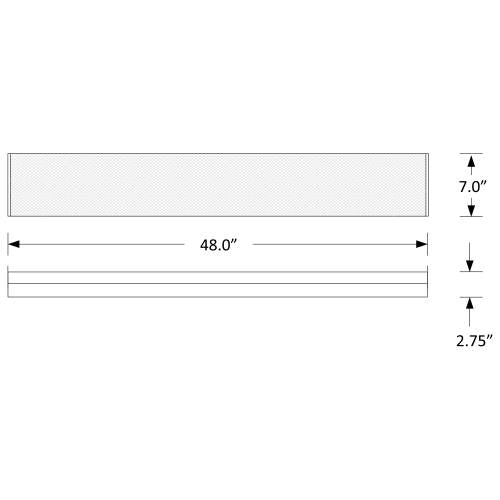

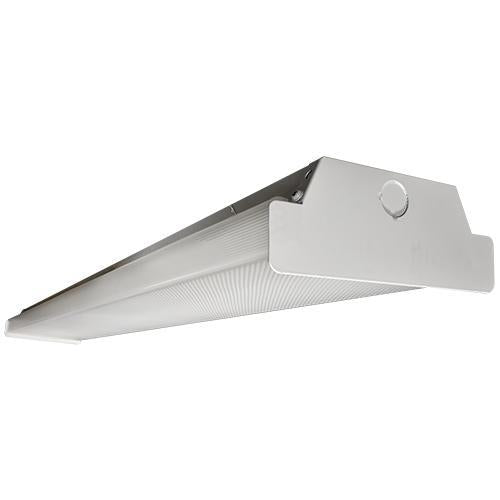

Visit product page →The CLWAL-40 is a 1’ x 4’ LED wrap luminaire, which is designed as a direct replacement for fluorescent wraps. The CLWAL-40 is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.
 FEATURESÂ
• Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 122,000 hours of operation with at least 70% of initial lumen output (L70).**
• Choose from 4,771 luminaire lumens (119 LPW) at 3500k; 5,200 luminaire lumens (130 LPW) at 4000k; and 5,240 luminaire lumens (131 LPW) at 5000k.*
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Steel housing and acrylic lens.
• Easy installation in new construction or retrofit.*Contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours. WARRANTY/LISTINGÂ
• cULus listed for damp locations (-20°C to 50°C / -4°F to 122°F).
• DLC premium approved.
• Complies with FCC Part 15, class A.
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with IEC 61000-4-2 level 2 (4kV) electrostatic discharge (ESD).
• Complies with RoHS (Restriction on Hazardous Substances) requirements.
• 5-year warranty of all electronics and housing. -
LEDQuant
4ft LED wrap around LED light Kelvin Selectable, 0-10V dim, FCC Part 15B certified, DLC premium
$89.95
vLEDQuant
4ft LED wrap around LED light Kelvin Selectable, 0-10V dim, FCC Part 15B certified, DLC premium
$89.95

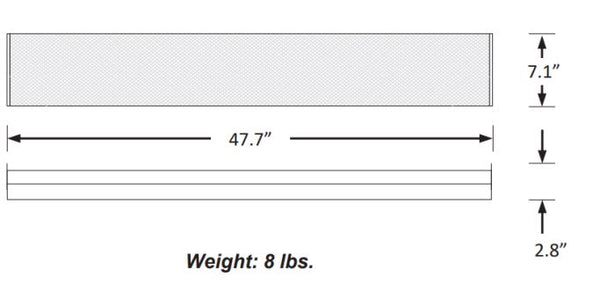

Visit product page →The WRS-5L is a 4’ LED wrap luminaire, which is designed as a direct replacement for fluorescent wraps. It's designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability. It's FCC Part B15 certified.
 FEATURESÂ
• Field selectable 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 196,000 hours of operation with at least 70% of initial lumen output (L70), and 60,000 with at least 90% of initial lumen output**
• WRS-5L provides a range of 4,100 to 5,800 nominal lumens and 132 to 154 Lumens per watt (LPW) *
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Steel housing and PMMA lens.
• Easy installation in new construction or retrofit.*Contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours. WARRANTY/LISTINGÂ
• cULus listed for damp locations (-20°C to 60°C / -4°F to 140°F).
• DLC premium approved.
• Complies with FCC Part 15, class B.
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• 5-year warranty of all electronics and housing.
