Visit product page →The CLLS series is a group of 2’, 3’, 4’ and 8’ covered strip lights, which are designed as direct replacements for fluorescent strips. The CLLS series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.
FEATURESÂ
• Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide up to 122,000 hours of operation with at least 70% of initial lumen output (L70).**
• Uniform illumination with no visible LED pixilation
• Universal 120-277 AC voltage (50-60Hz) is standard
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%
• Color rendering index > 80.
• Steel housing and acrylic lens.
• Easy installation in new construction or retrofit. * contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours. WARRANTY/LISTINGÂ
• cULus approved for damp locations (-20°C to 50°C / -4°F to 122°F).
• DLC premium approved.
• Complies with RoHS (Restriction on Hazardous Substances) requirements.
• Complies with FCC Part 15 class A.
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with IEEE 61000-4-2 level 2 (4kV) electrostatic discharge (ESD). -
vLEDQuant

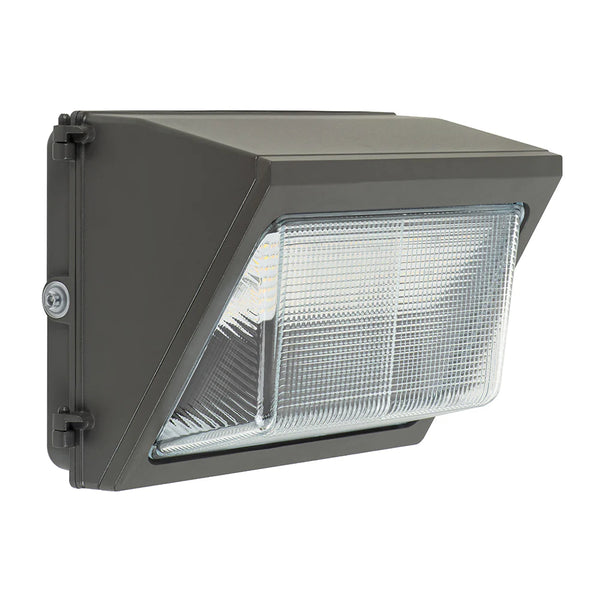

28W -70W Selectable LED Glass Wall Pack Light with Photocell G2 AC120-277V
$144.83 $136.14
Visit product page →Selectable LED GLASS WALL PACK LED Lighting Series can be widely used for indoor or outdoor lighting (Wet Location). Excellent for museums, art galleries, shopping malls, office buildings, walls and many other applications.
Power: 28W / 42W / 56W / 70W
Input: AC 120-277V
CCT: 3000K /4000K / 5000K
Output: 4800 LM/6393 LM/7880 LM/9808 LM
Factory Default Parameters:
Power: 70W
CCT: 4000K
Light Source: 2835 LEDs
Driver: KERHAM -
Visit product page →The premium-performance CLTR22D-32 is a low-profile 2’ x 2’ LED center basket luminaire, which offers industry-leading lumens per watt (LPW). The CLTR22D-32 is designed as a direct replacement for 2’ x 2’ fluorescent luminaires installed in grid or plaster ceilings. It is also designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.
FEATURESÂ
â–ª Available in 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white) & 5000k (cool white) color temperatures.*
â–ª Long-life LEDs provide 199,000 hours of operation with at least 70% of initial lumen output (L70).**
â–ª Provides 4,195 luminaire lumens (131 lumens per watt, LPW) at 3000k; 4,293 luminaire lumens (134 LPW) at 3500k; 4,371
luminaire lumens (137 LPW) at 4000k; and 4,527 luminaire lumens (141 LPW) at 5000k.*
â–ª Uniform illumination with no visible LED pixelation.
â–ª Universal 120-277 AC voltage (50-60Hz) is standard.
â–ª 0-10vdc dimming capability is standard.
â–ª Power factor > 0.90.
â–ª Total harmonic distortion < 20%.
â–ª Color rendering index > 80.
â–ª Steel housing and acrylic lens.
▪ Easy installation in new construction or retrofit. Fits in standard 2’ x 2’ grid ceilings.
â–ª Standard earthquake clips provide secure installation in grid ceilings.
â–ª Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets.Â* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hoursWARRANTY & LISTINGSÂ
▪ UL listed for damp locations and insulated ceilings (IC-rated) for use in ambient temperatures from -20°C to 40°C (-4°F to 104°F).
â–ª DLC Premium listed.
â–ª Flicker-free per IEEE1789-2015 (low risk of adverse effects of flicker at 100% light output level).
â–ª Complies with RoHS (Restriction on Hazardous Substances) requirements.
â–ª Complies with FCC Part 15, part B.
â–ª Complies with IEEE C.62.41-1991, input transient surge protection (2kV).
â–ª 5-year warranty of all electronics and housing.Â
