The Emergency LED driver must connect to 0/1-10V dimming wires (DIM+,DIM-) of the fixture if the LED luminaire power is exceed the emergency LED driver power. (2 In emergency mode, double-click this test switch to turn off the current emergency state.

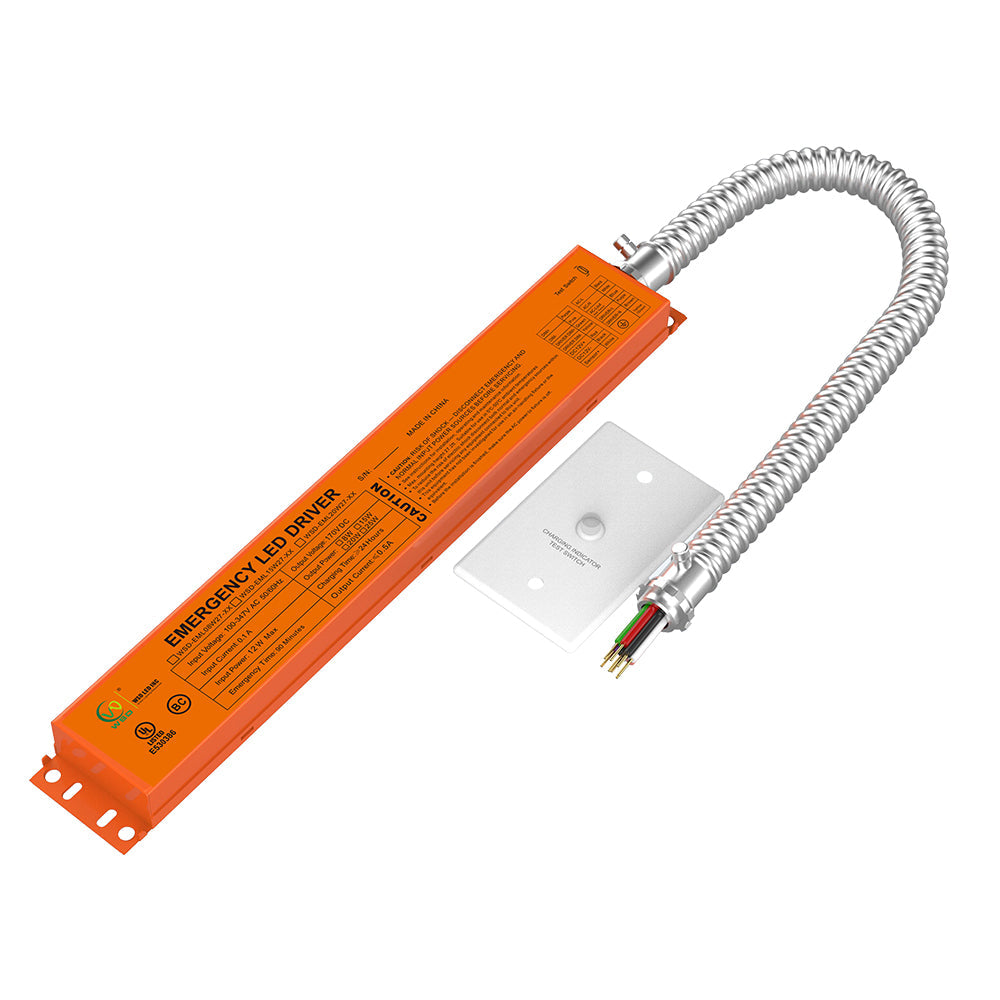

Item: WSD-EML08W27-XX
Output Power: 8W
Output Voltage: 170V DC
Input Power: 12W max
Input Voltage: 100-347Vac, 50/60HZ
Input Current: 0.1A max
Application: ≤80W (0-10V Dimmable Fixture)
≤8W LED Lamps without dimming function
Ambient Temperature: 5 C~50 C
Package:
Packing size: 17.71 x 6.69 x 1.97 inch
Weight: 2.2 LBS (1 PCS )
Packing size: 18.11 x 13.78 x 9.84 inch
Weight: 22.05 LBS (10 PCS)
