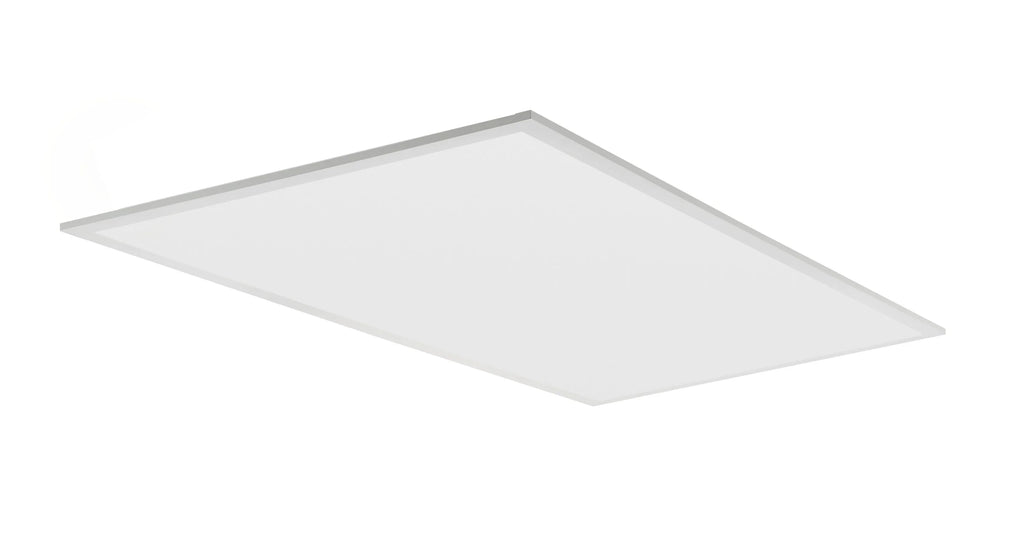

The WFP-2X4-LKFS is a high-performance 2x4 LED panel designed for commercial and office applications. It provides uniform illumination with energy-efficient LED technology, making it an ideal replacement for traditional fluorescent fixtures. WFP series flat panel and emergency driver are FCC Part 15B compliant.
Ultra-thin, lightweight design for easy installation
High-efficiency LED chips with long lifespan
Flicker-free and glare-reducing light output
Adjustable wattage and CCT for customized lighting
Compatible with 0-10V dimming systems
DLC Premium & UL certified for energy efficiency and safety
| Parameter | Specification |
|---|---|
| Dimensions | 2ft x 4ft (23.7" x 47.7") |
| Power Consumption | 30W / 40W / 50W Adjustable |
| Luminous Flux | 3750 / 5000 / 6250 Lumens |
| Efficacy | 125 lm/W |
| CCT Options | 3500K / 4000K / 5000K Adjustable |
| CRI | >80 |
| Dimming | 0-10V Dimmable |
| Input Voltage | 100-277V AC |
| Power Factor | >0.95 |
| Lifespan | 50,000 Hours |
| Beam Angle | 120° |
| Operating Temp. | -20°C to 45°C (-4°F to 113°F) |
| Certifications | UL, DLC Premium, FCC, RoHS |
| Warranty | 5 Years |
Office Spaces
Schools & Universities
Healthcare Facilities
Conference Rooms
Retail Stores
Recessed Grid Ceiling (Standard)
Surface Mount Kit (Optional)
Suspension Kit (Optional)
