$244.99 $229.89
![](http://pinterest.com/pin/create/button/?url=https://www.ledquant.com/products/luxrite-montauk-lr24285-6-x-8-linear-backlit-panel-selectable-cct-wattage&media=//www.ledquant.com/cdn/shop/files/luxrite-montauk-lr24285-6-x-8-linear-backlit-panel-selectable-cctwattage-124868_1024x1024.webp?v=1755587783&description=Luxrite Montauk LR24285 6" X 8' Linear Backlit Panel Selectable CCT/Wattage)
$244.99 $229.89
Usually ships in 1-3 Business Days
FREE Shipping & Returns

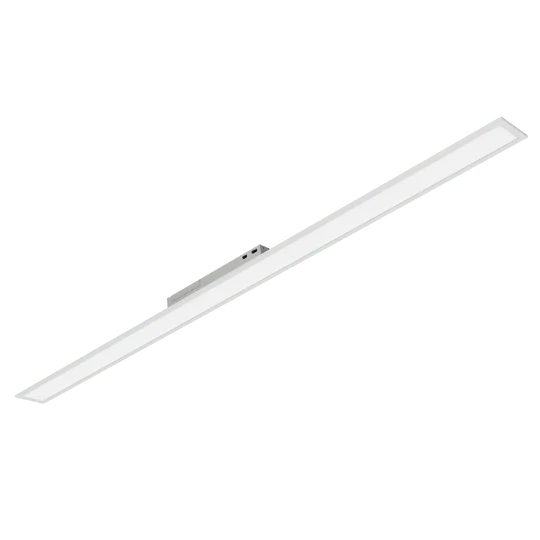

Traditional linear panels have been completely revamped in this sleek, modern style. The super-narrow frames, shallow profile, and greater surface area result in smoother, more luminous output. The linear flat panel provides a sleek modern linear light with back-lit construction to provide a soft glare-free solution. It is designed for grid/T-bar ceiling and can be used in many lighting applications. Uses include schools, offices, retail, healthcare and other commercial spaces
LED6"X8BPNL/3WO/4CCT/D
Dimensions
|
| Wattage | 37/57/80 |
| Lumen | 4400/6600/8800 |
| Color Temp. | 3000K/3500K/4000K/5000K |
| Efficacy110 | lm/W |
| CRI | >80 |
| Voltage | 120-277V |
| Dimming |
0-10V |
| Warranty | 5 Year |
$59.99
LEDQuant
$59.99
Ultra-thin, back-lit LED panel designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and retail stores. Perfect choice for new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10VDC dimming capability.
FEATURES
• Available in 3500k, 4000k and 5000k color temperatures.
• Long-life LEDs provide 144,000 hours of operation with at least 70% of initial lumens output (L70).**
• Provides 4,259 to 4,449 luminaire lumens and 118 to 123 lumens per watt*
• Uniform illumination with no visible LED pixilation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%
• Color rendering index > 80.
• Aluminum frame and steel housing backplate.
• PMMA (polymethyl methacrylate) LED lenses for optimal light distribution, efficiency and longevity.
• Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets. Optional surface mounting requires a surface mounting kit.
• Easy installation in new construction or retrofit.
• Standard earthquake clips provide secure installation in grid ceilings.
• Standard mounting options include recessed mounting in grid ceilings or suspended mounting using attached hanging brackets. For mounting in plasterer other hard ceilings, see Mounting Kits
• cULus for damp locations and insulated ceilings (IC-rated). Suitable for ambient temperatures from -20°C to 40°C (-4°F to 104°F).
• DLC premium approved.
• Flicker-free per IEEE1789-2015 (no observable adverse effects of flicker at 100% light output level).
• Complies with RoHS (Restriction on Hazardous Substances) requirements.
• Complies with FCC Part 15, class B.
• Complies with EN61000-4-5, surge immunity protection (1kV).
• 5-Year Warranty of all electronics and housing.
This light is DLC approved. The DesignLights Consortium® promotes quality, performance and energy efficient commercial sector lighting solutions through collaboration among its federal, regional, state, utility, and energy efficiency program members, luminaire manufacturers, lighting designers, and other industry stakeholders throughout the US and Canada.
LEDQuant
2x2 FT 32W 4000 Lumens Flat LED Panel Light 0-10V Dimmable Back-Lit Rebate UL & DLC
$64.99
Ultra-thin, back-lit LED panel designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and retail stores. Perfect choice for new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10VDC dimming capability.
FEATURES
• Available in 3500k, 4000k and 5000k color temperatures.
• Long-life LEDs provide 144,000 hours of operation with at least 70% of initial lumens output (L70).**
• Provides 4,174 to 4,293 luminaire lumens and 129 to 134 lumens per watt*
• Uniform illumination with no visible LED pixilation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%
• Color rendering index > 80.
• Aluminum frame and steel housing backplate.
• PMMA (polymethyl methacrylate) LED lenses for optimal light distribution, efficiency and longevity.
• Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets. Optional surface mounting requires a surface mounting kit.
• Easy installation in new construction or retrofit.
• Standard earthquake clips provide secure installation in grid ceilings.
• Standard mounting options include recessed mounting in grid ceilings or suspended mounting using attached hanging brackets. For mounting in plasterer other hard ceilings, see Mounting Kits
• cULus for damp locations and insulated ceilings (IC-rated). Suitable for ambient temperatures from -20°C to 40°C (-4°F to 104°F).
• DLC premium approved.
• Flicker-free per IEEE1789-2015 (no observable adverse effects of flicker at 100% light output level).
• Complies with RoHS (Restriction on Hazardous Substances) requirements.
• Complies with FCC Part 15, class B.
• Complies with EN61000-4-5, surge immunity protection (1kV).
• 5-Year Warranty of all electronics and housing.
This light is DLC approved. The DesignLights Consortium® promotes quality, performance and energy efficient commercial sector lighting solutions through collaboration among its federal, regional, state, utility, and energy efficiency program members, luminaire manufacturers, lighting designers, and other industry stakeholders throughout the US and Canada.
$67.99
ledquant lighting
2x2 LED Back-Lit Flat Panel with Adjustable Wattage & CCT, FCC Part 15B compliant
$67.99
The WFP-2X2-LKFS is a high-performance 2x2 LED panel designed for commercial and office applications. It provides uniform illumination with energy-efficient LED technology, making it an ideal replacement for traditional fluorescent fixtures. WFP series flat panel and emergency driver are FCC Part 15B compliant.
Ultra-thin, lightweight design for easy installation
High-efficiency LED chips with long lifespan
Flicker-free and glare-reducing light output
Adjustable wattage and CCT for customized lighting
Compatible with 0-10V dimming systems
DLC Premium & UL certified for energy efficiency and safety
| Parameter | Specification |
|---|---|
| Dimensions | 2ft x 2ft (23.7" x 23.7") |
| Power Consumption | 20W / 30W / 40W Adjustable |
| Luminous Flux | 2500 / 3750 / 5000 Lumens |
| Efficacy | 125 lm/W |
| CCT Options | 3500K / 4000K / 5000K Adjustable |
| CRI | >80 |
| Dimming | 0-10V Dimmable |
| Input Voltage | 100-277V AC |
| Power Factor | >0.95 |
| Lifespan | 50,000 Hours |
| Beam Angle | 120° |
| Operating Temp. | -20°C to 45°C (-4°F to 113°F) |
| Certifications | UL, DLC Premium, FCC, RoHS |
| Warranty | 5 Years |
Office Spaces
Schools & Universities
Healthcare Facilities
Conference Rooms
Retail Stores
Recessed Grid Ceiling (Standard)
Surface Mount Kit (Optional)
Suspension Kit (Optional)
91.20 $72.20
WSD
1 x 4 Foot Sensor Based LED Troffer, 3950 Lumen Max, Wattage and CCT Selectable, 120-277V
$91.20 $72.20
The Sensor Based LED Troffer Lighting Series can be widely used for Indoor Excellent for Offices, Hallways, Multipurpose Rooms , Office Buildings, Conference Rooms, super market, store and many other applications.
FEATURES
