$152.17 $143.04
$152.17 $143.04
Usually ships in 1-3 Business Days
FREE Shipping & Returns

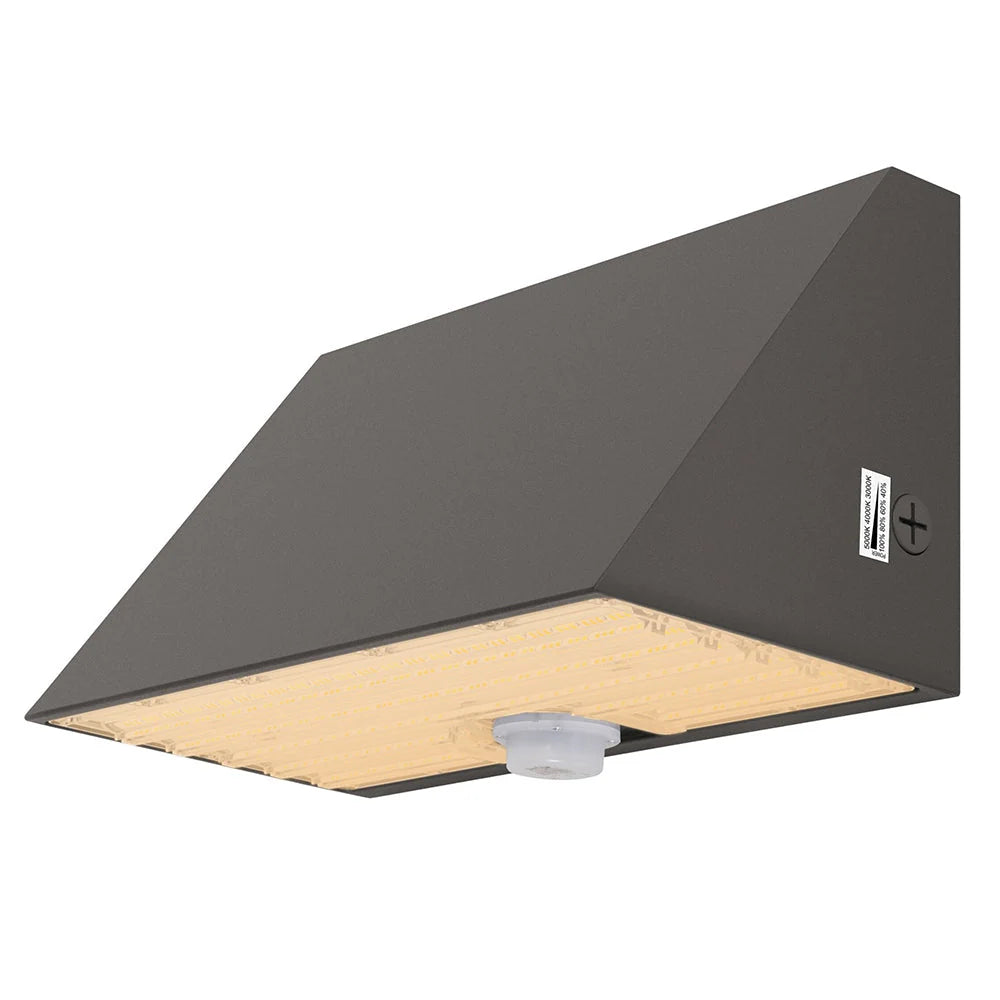

Selectable LED Architectural Wall Pack Lighting series can be widely used in indoor or outdoor lighting (wet location). Excellent for museums, art galleries, shopping malls, office buildings, walls and many other applications.
**12Vdc Auxiliary Dimming**
Power: 28W / 42W / 56W / 70W
Input: AC 120-277V
CCT: 3000K / 4000K / 5000K
Output: 4760 LM/6880 LM/8601 LM/11124 LM
Type of lighting： T3 / T4 / T5
Factory Default Parameters:
Power: 70W
CCT：4000K
Type of lighting: T4
Driver: KERHAM
10 Watt Outdoor LED Flood Light, Energy Efficient. Reduced energy consumption by up to 80%. 2 year guarantee.
| Power Consumption | 10W |
| Traditional Equivalent | 50W |
| Luminous Flux (lm) | 800 Lm |
| LED Brand | Epistar |
| IP Rating | IP 65 |
| Material | Aluminum Alloy |
| Plug | No |
| Light Temperature | Warm White (3000-3200K) |
| Input Voltage | 85-265V AC |
| Beam angle | 120° |
| Lamp Color | Grey |
| Length | 4.4in (112.0mm) |
| Height |
3.31in (84mm) |
| Depth |
3.27in (83mm) |
50 Watt LED Outdoor Flood Light, Cool White, Energy Efficient. Reduced energy consumption by up to 80%. 2 year guarantee.
| SKU Number | FL-50W-CW |
| Power Consumption | 50W |
| Traditional Equivalent | 200W |
| Luminous Flux (lm) | 5000 Lm |
| LED Brand | Bridgelux |
| IP Rating | IP 65 |
| Material | Aluminum Alloy |
| Plug | No |
| Color temperature | Cool White (5500-7000K) |
| Input Voltage | 85-265V AC |
| Certificates | CE, RoHS |
| Warranty | 2 years |
| Life Span | 50000 hours |
| Length |
11.18in (284mm) |
| Height |
8.82in (224mm) |
10 Watt Outdoor LED Flood Light, RGB, Color Changing, Energy Efficient. Reduced energy consumption by up to 80%. Remote Control & Power supply included, 2 year guarantee.
| SKU Number | FL-10W-RGB |
| Power Consumption | 10W |
| Traditional Equivalent | 50W |
| Luminous Flux (lm) | 900 Lm |
| Certifications | CE & ROHS |
| IP Rating | IP 65 |
| Material | Aluminum Alloy |
| Plug | No |
| Light Color | RGB |
| Input Voltage | 110-240V AC |
| Beam angle | 120° |
| Lamp Color | Black |
| Length | 4.33in (110.0mm) |
| Height |
3.35in (85mm) |
| Depth |
3.35in (85mm) |
The CLMAL series is a group of premium architectural LED multi-purpose area luminaires designed to illuminate parking lots, pathways, building facades, loading docks, and a wide variety of other large, general site lighting applications. Multiple mounting options make the CLMAL a versatile luminaire for flood lighting, pole-, ground- and wall-mounted are lighting, and other outdoor lighting requirements.
FEATURES
▪ Available in 3000k (warm white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide 372,000 hours of operation with at least 70% of initial lumen output (L70).**
▪ CLMAL-15 provides 1,593 lumens (114 lumens per watt, LPW) at 3000k; 1,603 lumens (115 LPW) at 4000k; and 1,624 lumens (116 LPW) at 5000k.*
▪ Standard optic provides an IES roadway type V distribution, or a 7V (vertical) x 7H (horizontal) NEMA floodlight distribution.
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Optional glare shields (full & half) & wire guards are available.
▪ Die cast aluminum housing with durable, dark bronze powder coat finish—at least 2 mils thick on all surfaces—and a heat-resistant polycarbonate lens.
▪ Wireway enclosure is sealed with a water-tight, silicon rubber gasket.
▪ Effective projected areas (EPA's) are:
- Front = 0.05 s.f. (knuckle) / 0.06 s.f. (yoke)
- Side = 0.07 s.f. (knuckle & yoke)
- Face = 0.20 s.f. (knuckle) / 0.23 s.f. (yoke)
▪ Easy installation in new construction or retrofit applications.
* contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.
WARRANTY & LISTINGS
• cULus listed for wet locations in ambient temperatures from -20°C to 45°C (-4°F to 113°F).
• IP66 rated for ingress protection.
• DLC premium approved.
• Rated for 3G vibration.
• Lens is IK 8 rated for protection from external impacts.
• Salt fog tested for 1,000 hours (ASTM B117). After salt fog testing, paint rated at 9 per ASTM D1654-05 scratch test.
• Complies with FCC Part 15, class B.
• Complies with EN61000-4-5, surge immunity protection (2.5kV).
• 5-Year Warranty of all electronics and housing.
MOUNTING OPTIONS
• Yoke-mounted option provides secure attachment to flat surfaces.
• Aluminum die-cast knuckle-mount option is installed on a junction box. Includes ½” NPS stem with locking nut.
