Residential Lighting

1 Watt Under Cabinet LED Light, Warm White, Energy Efficient. Reduced energy consumption by up to 80%. 2 year guarantee.

1 Watt LED Recessed Lighting Fixture, Energy Efficient. Reduced energy consumption by up to 80%. Can replace 10W halogen bulbs. Flush mounts in 1.42 inch with spring retaining clips. Pivots +/-15 degrees on one axis. Easily removed from flush mount bracket. Power adapter included. 2 year guarantee.

LED “A” lamps used for any incandescent “A” lamp replacement, long life maintenance free LED replacement lamps.

LED “A” lamps used for any incandescent “A” lamp replacement, long life maintenance free LED replacement lamps.

CBR20 lamps are for use in recess down lights, track and outdoor security lights. These are long life maintenance free LED replacement lamps.

 FEATURES
• Direct incandescent replacement
• 110° Beam angle
• E26 medium Edison Screw-in base
• Built-in high efficiency LED driver
• 25,000 hour life span
• ENERGY STAR qualified
• ETL listed for damp locations (-20°C - 40°C)
• 5 year warranty on all electronics and housing

Specification Sheet

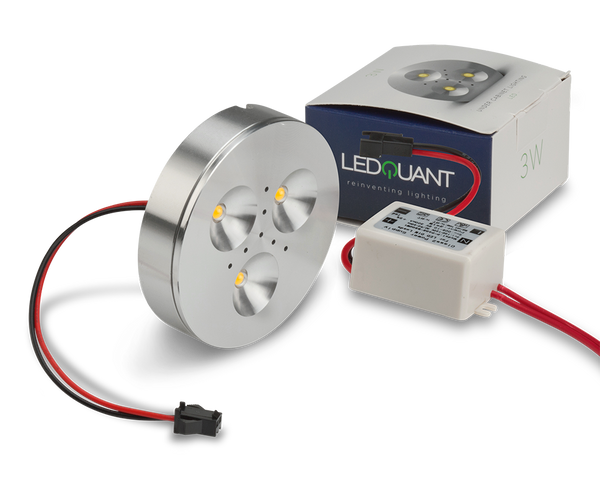

Dimmable 3 Watt LED Recessed Lighting Fixture, Energy Efficient. Reduced energy consumption by up to 80%. Flush mounts in 2.68 inch with spring retaining clips. Pivots +/-15 degrees on one axis. Easily removed from flush mount bracket. Can replace 30W halogen bulbs. Power adapter included. 2 year guarantee.

4" LED dedicated IC housing, CARDL4-HSNG-IC is designed for new construction installations and are suitable for use in ceilings where the housing can be in direct contact with insulation.  Ait tight construction reduces energy costs by reducing the amount of air leakages through the ceiling.

• cULus Listed for Damp Location
• cULus Listed for Feed Through
• Certified under ASTM-E283 for Air Tight construction
• Meets state of California title 24 requirements
• Pre-Installed real nail easily installs in regular lumber, engineered lumber.
• Bar hangers are adjustable from 13-5/8" to 25" and can be repositioned 90 degree on plaster frame.
• Galvanized steel construction,  The housing can be removed from plaster frame to provide access to the junction box.
• Listed for through branch circuit wiring
• Contains one 1-1/8", six 7/8" knockouts and four romes pryouts with strain relief.

Specification Sheet

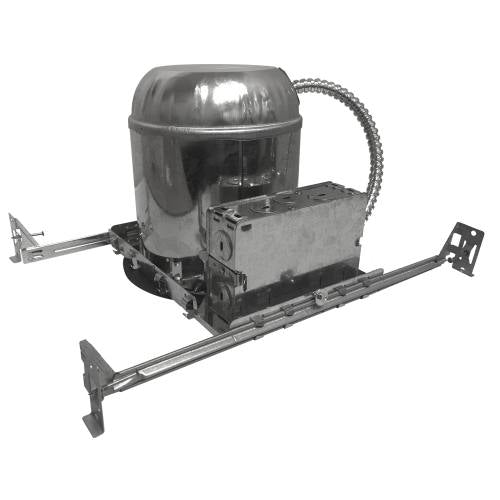

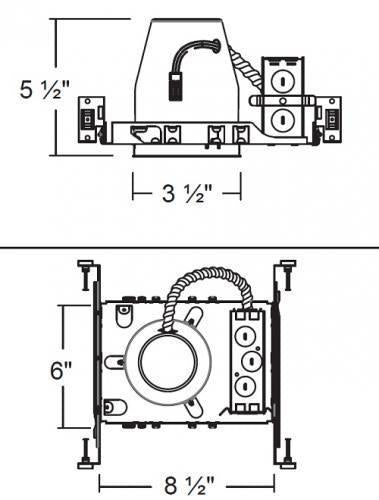

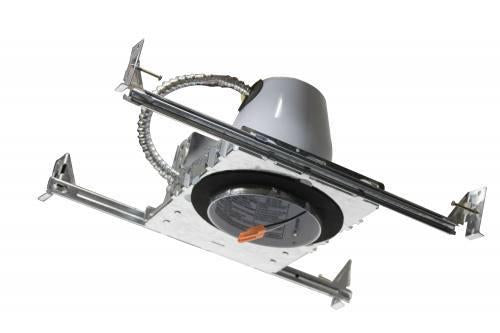

6 inch LED dedicated IC housing is designed for new construction installations and are suitable for use in ceilings where the housing can be in direct contact with insulation.  Ait tight construction reduces energy costs by reducing the amount of air leakages through the ceiling.

• cULus Listed for Damp Location
• cULus Listed for Feed Through
• Certified under ASTM-E283 for Air Tight construction
• Meets state of California title 24 requirements
• Pre-Installed real nail easily installs in regular lumber, engineered lumber.
• Bar hangers are adjustable from 13-5/8" to 25" and can be repositioned 90 degree on plaster frame.
• Galvanized steel construction,  The housing can be removed from plaster frame to provide access to the junction box.
• Listed for through branch circuit wiring
• Contains one 1-1/8", six 7/8" knockouts and four romes pryouts with strain relief.

Specification Sheet

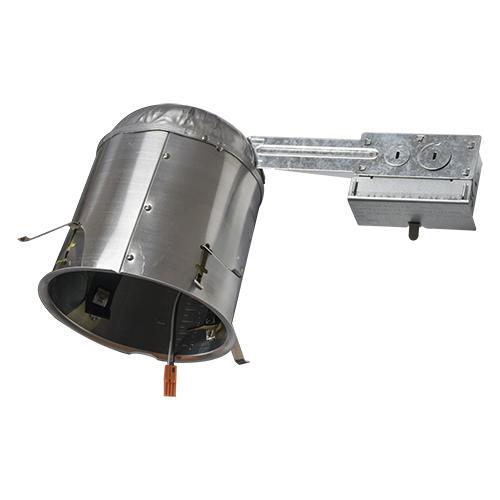

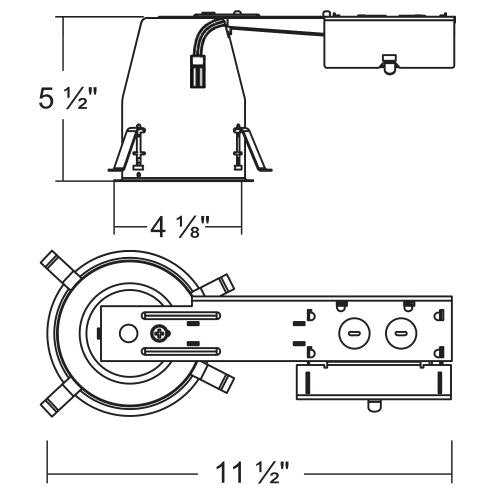

6" LED dedicated IC housing is designed for remodel installations and are suitable for use in ceilings where the housing can be in direct contact with insulation.  Remodel housing installs into existing drywall or wood ceiling with no above access.  Air tight construction reduces energy costs by reducing the amount of air leakages through the ceiling.

• cULus Listed for Damp Location
• cULus Listed for Feed Through
• Certified under ASTM-E283 for Air Tight construction
• Meets state of California title 24 requirements
• Listed for through branch circuit wiring
• Contains one 1-1/8", six 7/8" knockouts and four romes pryouts with strain relief.
• Housing adjusts from 5/8" - 1-3/8" to accommodate various ceiling thickness.
• Four remodel clips secure housing and accommodates 1/2" abd 5/8" ceiling materials.

Specification Sheet

APPLICATIONS 4” surface dome light solution with integrated LED power supply and thermal management system combined in a single compact unit designed to fit most standard 3”, 4” recessed cans as well as 4” junction box.

ILLUMINATION Long life LEDs with up to 50,000 hours at 70% lumen 4” surface dome light 3”, 4” recessed cans, maintenance. CCT available: 2700K, 3000K, 4000K, CRI: 80. Produces 700 lumens output.

ELECTRICAL Dimmable to 10% with most dimmers. Save 75% compared to incandescent sources. High efficiency driver with a power factor ≥ .90 with input power of 120V, 50-60Hz. Built-in LED Driver. Power consumption of 8 watts. Operation temperature of - 20 C-40°° C (-4 F- 104°F).

MOUNTING Easy installation with 3” to 4” recessed cans. Cut-off and strip, for 4” junction box mounting, using mounting bracket.

HOUSING Surface mount dome used with 3”, 4” housings. Compatible with insulated, non-insulated, and air-tight ceilings. Durable thermoplastic construction. E26 medium screw-base Edison connector provides easy retrofit of incandescent housings.

WARRANTY/LISTING Tested in accordance with IESNA LM79 & LM80. ETL listed for wet location US and Canada. Energy Star certified. Passes FCC Class B. Meets State of California Title 24 requirements. Five year warranty on all electronic

Specification Sheet

CBBR30 lamps are for use in recess down lights, track and outdoor security lights. These are long life maintenance free LED replacement lamps.

 FEATURES
• Direct incandescent replacement
• 110° Beam angle
• E26 medium Edison Screw-in base
• Built-in high efficiency LED driver
• 25,000 hour life span
• UL listed for damp locations (-20°C - 40°C)
• 5 year warranty on all electronics and housing

Specification Sheet

Dimmable 3 Watt Under Cabinet LED Light, Energy Efficient. Reduced energy consumption by up to 80%. 2 year guarantee.

CBPAR20 bulbs are for use in recess down lights, track and outdoor security lights. These are long life maintenance free LED replacement lamps.

 FEATURES
• Direct incandescent replacement
• 25° Beam angle
• E26 medium Edison Screw-in base
• Built-in high efficiency LED driver
• 25,000 hour life span
• ENERGY STAR certified
• ETL listed for damp locations (-20°C - 40°C)
• 5 year warranty on all electronics and housing

Specification Sheet

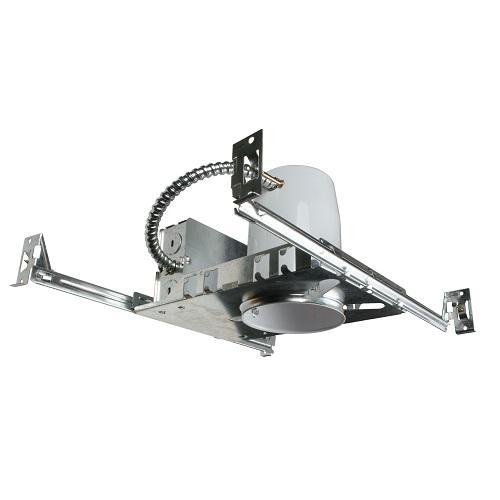

3" LED dedicated IC housing, is designed for new construction installations and are suitable for use in ceilings where the housing can be in direct contact with insulation. Air tight construction reduces energy costs by reducing the amount of air leakages through the ceiling.

• Galvanized steel construction.
• The housing can be removed from plaster frame to provide access to the junction box.
• Contains one 1-11/8", six 7/8" knockouts and four Romex pryouts with strain relief.
• Pre-installed Real nail easily installs in regular lumber, engineered lumber.
• Bar hangers are adjustable from 13-5/8" to 25" and can be repositioned 90 degree on plaster frame.
• cULus Listed for Damp Location
• cULus Listed for Feed Through
• Certified under ASTM-E283 for Air Tight construction
• Meets state of California title 24 requirements
• Listed for through branch circuit wiring

Specification Sheet

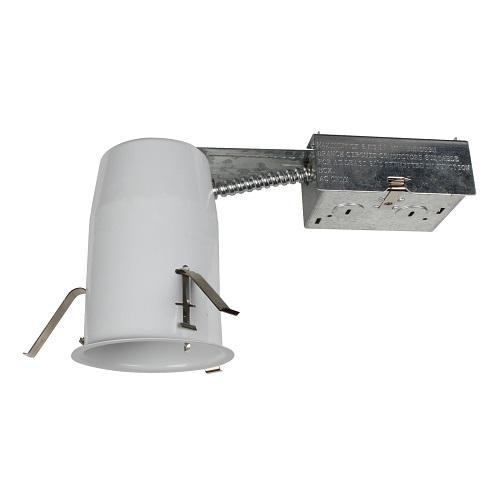

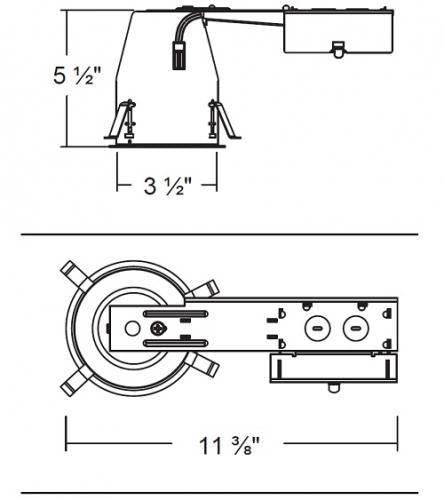

3" LED dedicated Remodel housing, is designed for remodel applications and suitable for use in ceiling where the housing can be direct contact with insulation. Remodel housing install into existing drywall or wood ceiling with no above access. Air tight construction reduces energy costs by reducing the amount of air leakages through the ceiling.

• Contains one 1-11/8", six 7/8" knockouts and four Romex pryouts with strain relief.
• Four remodel clips secure housing and accomadates 1/2" and 5/8" celing materials
• cULus Listed for Damp Location
• cULus Listed for Feed Through
• Certified under ASTM-E283 for Air Tight construction
• Meets state of California title 24 requirements
• Listed for through branch circuit wiring.

Specification Sheet

ETL-listed, ROHS - Easy installation: comes with E26 base adapter, fits most 3" metal cans for retro-fit installation 50 Watt Halogen Equivalency. - Damp Locations (Could be used outdoor and indoors) - Dimmable: compatible with most LED dimmers, using an internal driver, no external ballast or starter needed

Dimmable 7 Watt LED Recessed Lighting Fixture, Warm White, Energy Efficient. Reduced energy consumption by up to 80%. Can replace 70W halogen bulbs. Flush mounts in 3.54 inch with spring retaining clips. Pivots +/-15 degrees on one axis. Easily removed from flush mount bracket. Power adapter included. 2 year guarantee. UL Certified

Easy installation: comes with E26 base adapter, fits most 4" metal cans for retro-fit installation • CONSERVE ENERGY: Using LEDQuant LED Recessed Lighting Retrofit can reduce energy use by as much as 90%. Improving energy efficiency can reduce emissions. Super BRIGHT light, SAVES energy, and LOWERS electric costs: 10W (65W Halogen Equivalency), LASTS over 35 years, SAVES $303 per lamp! • CERTIFICATION: ETL-LISTED and ENERGY STAR qualified, ROHS, and Meets T24 Requirements. Most states will not allow electricians or home owners to install LED lighting products that have not been tested by a certification laboratory. This ETL LISTED LED bulb meets all regulatory requirements. The ETL CERTIFICATION is indication of a superior quality product that has passed numerous tests before getting its approval. ENERGY STAR listed meets strict efficiency, quality, and lifetime criteria. • BUY WITH CONFIDENCE: 5 YEAR WARRANTY. Reduce re-lamp frequency. Lifespan over 50,000 hours. One of the highest standard retrofits on the market; Preferred by most contractors and electricians. Guaranteed to have adhered the most demanding quality control procedures. EXCELLENT PERFORMANCE

Specification Sheet

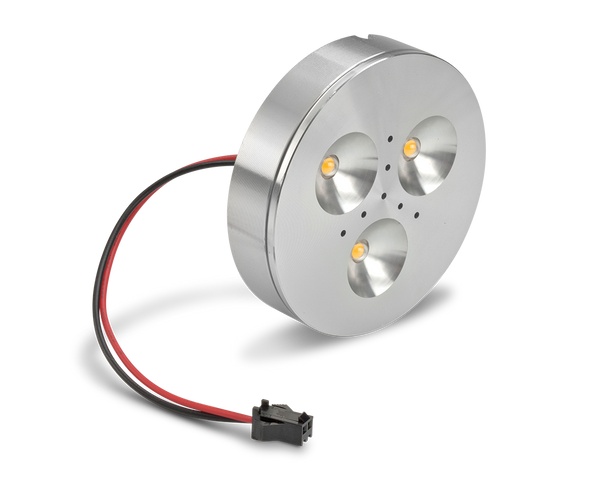

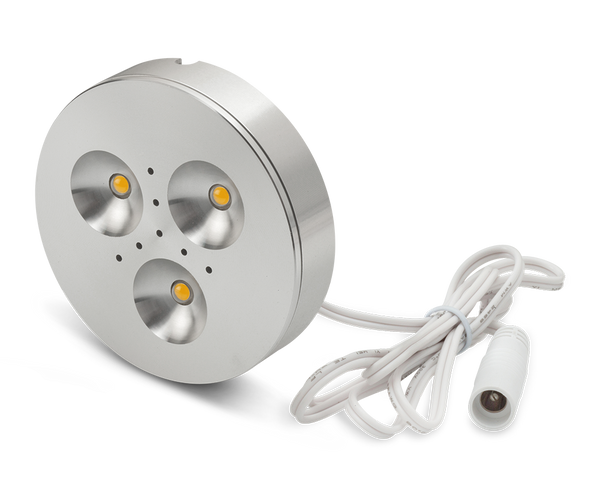

LED puck light adopt high quality Edison LED as the light source. Beautiful appearance with fashionable structure. Surface mounted, Energy Efficient. Reduced energy consumption by up to 80%. 2 year guarantee.

7 Watt Dimmable LED Recessed Lighting Fixture, Warm White, Energy Efficient. Reduced energy consumption by up to 80%. Can replace 60W halogen bulbs. Flush mounts in 3.5 inch with spring retaining clips. Pivots +/-30 degrees on one axis. Easily removed from flush mount bracket.Power adapter included. 2 year guarantee.

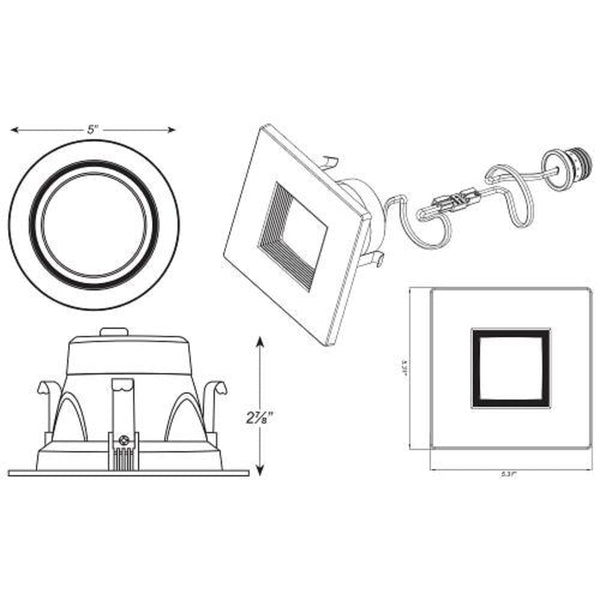

4" Gimbal solution with integrated LED power supply and thermal management system combined in a single compact unit designed to fit most standard 4" recessed cans.

ILLUMINATION Long life LEDs with up to 50,000 hours at 70% lumen maintenance. Choice of 2700K, 3000K, 4000K and 5000K color temperature with 80 CRI. Produces 675-750 lumens output from luminaire. Uses 1.18W high power, high quality LEDs.

ELECTRICAL Dimmable to 10% with most dimmers. Save 75% compared to incandescent sources. High efficiency driver with a power factor ≥.90 with input power of 120V, 50-60Hz. Built-in LED Driver. Power consumption of 10 watts. Operation temperature of -20°C - 40°C (-4°F - 104°F).

MOUNTING Easy installation with integral clips. No tools required for installation.

HOUSING Compatible with most 4“ housings. Compatible with insulated, non-insulated, and air-tight ceilings. Durable thermoplastic construction. E26 medium screw-base Edison connector provides easy retrofit of incandescent housings.

WARRANTY/LISTING Tested in accordance with IESNA LM79 & LM80. ETL Listed for wet location. Energy Star qualified. Passes FCC Class B. Meets State of California Title 24 requirements. Five year warranty on all electronics and housing.

Specification Sheet
