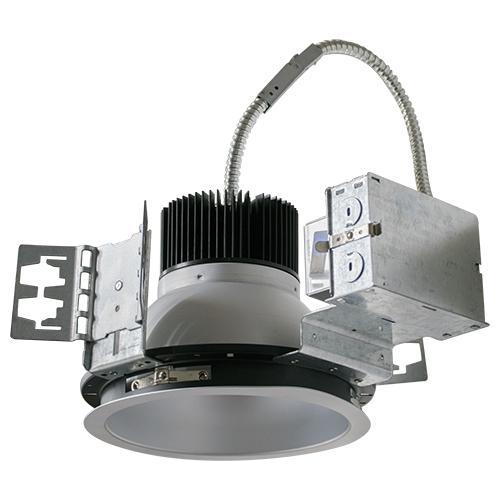

The CLADL series is a 8” commercial grade architectural downlight ( includes can & frame-in kit). Built for commercial use with architectural frames and a deep cone reflector for precision light. This high-efficiency luminaire provides long life and minimal need for maintenance. UL and Energy Star listed.
• Architectural frames
• C channel and flat hanger bars for tie down to ceiling grids
• Junction box is mounted on the frame for easy wiring,driver access for installation, and replacement
• Diecast aluminum heatsink dissipates heat from the LED board
• Self-flanged aluminum reflector with a frosted lens to shield direct view of LEDs
• Color rendering index ≥ 80
• Long life LEDs - up to 50,000 hours
• Universal 120-277 AC voltage (50/60Hz)
• 0-10V dimming
• Operation Temp. -30°C~40°C (-22°F~104°F)
* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.
WARRANTY & LISTINGS
• cULus Listed.
• ENERGY STAR® rated.
• Suitable for wet locations (not suitable for coastal/saltwater areas).
• Suitable for damp locations.
• RoHS compliant.
• 5-year warranty of all electronics and housing.
