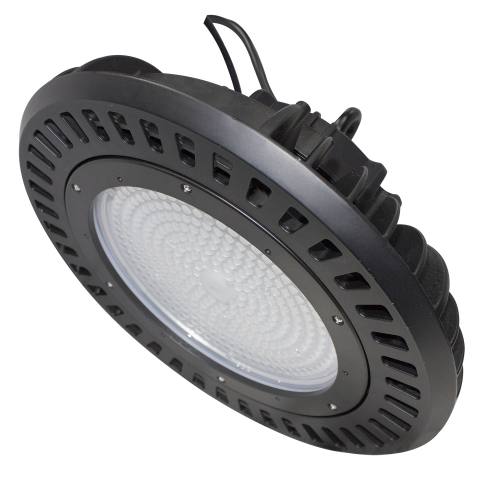

The CLHB-RD-200 is a round LED high bay luminaire, which is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a die cast aluminum housing and polycarbonate lens, the CLHB-RD-200 provides durability and high performance. Highefficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.
FEATURES
▪ Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide 81,000 hours of operation with at leas t 70% of initial lumen output (L 70).**
▪ CLHB-RD-200 provides 24,816 lumens (126 lumens per watt, LPW) at 4000k, and 25,042 lumens (127 LPW) at 5000k.*
▪ Universal 120-277 AC voltage (50-60Hz) is standard. Step down transformers are required for 347-480V applications.
▪ 0-10vdc dimming drivers are standard.
▪ Watertight, compression-type electrical connectors prevent moisture intrusion.
▪ Standard mounting bracket and optional mounting accessories provide ceiling and conduit mounting, and up to 100° of adjustability.
▪ Optional wet-location junction box & bracket (SEE HIGH BAY ACCESSORIES) attaches to luminaire housing, and simplifies wiring connections in wet locations.
▪ Optional Merrytek occupancy sensor (IP65 rated) and junction box assembly provides a factory-ready, fully-wired luminaire & control package.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Painted die cast aluminum housing.
▪ Easy installation in new construction or retrofit.
* Contact factory for other color temperatures and lumen packages.
** L 70 hours are IES TM-21-11 calculated hours.
The CLLSH series is a group of 2’, 3’, 4’ and 8’ slim strip lights, which are designed as direct replacements for fluorescent strips. The CLLSH series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.
FEATURES
• CLLSH2 provides 2,582 luminaire lumens
(129 lumens per watt, LPW) at 3500k; 2,592 luminaire
lumens (130 LPW) at 4000k; and 2,613 luminaire lumens (131 LPW) at 5000k.*
• CLLSH3 provides 3,138 luminaire lumens
(126 LPW) at 3500k; 3,154 luminaire lumens (126 LPW) at 4000k; and 3,186 luminaire lumens (127 LPW) at 5000k.*
• CLLSH4 provides 4,278 luminaire lumens (130
LPW) at 3500k; 4,313 luminaire lumens (131 LPW) at
4000k; and 4,382 luminaire lumens (133 LPW) at 5000k.*
• CLLSH8 provides 8,129 luminaire lumens (131 LPW) at 3500k; 8,131 luminaire lumens (131 LPW) at
4000k; and 8,135 luminaire lumens (131 LPW) at 5000k.*
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
* contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.
WARRANTY/LISTING
• cETLus listed for damp locations in ambient temperatures from 20°C to 50°C (-4°F to 122°F).
• DLC premium approved.
• Flicker-free per IEEE1789-2015 (low risk of adverse effects of flicker at 100% light output level).
• Complies with FCC Part 15, Class B (except for
CLLSH8, which has Class A compliance).
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with RoHS (Restriction on Hazardous
Substances) requirements.
• 5-Year Warranty of all electronics and housing.
$96.99
LEDQuant
2x4 FT 55W 7000 Lm Flat LED Panel Light 0-10V Dimmable Back-Lit Fixture Rebate ETL & DLC Premium
$96.99
DLC Approval is Required for Most Rebate Programs:
This light is DLC approved. The DesignLights Consortium® promotes quality, performance and energy efficient commercial sector lighting solutions through collaboration among its federal, regional, state, utility, and energy efficiency program members, luminaire manufacturers, lighting designers, and other industry stakeholders throughout the US and Canada. The DLC is a project of Northeast Energy Efficiency Partnerships (NEEP), a regional non-profit which has been bringing stakeholders together since 1996 to accelerate efficiency solutions to create lasting change in the marketplace.
This small round UFO LED high bay lighting fixture is ideally suited for warehouses, manufacturing plants, sports facilities and retail spaces with regular to higher than normal ceilings. Specifically designed to be an LED, it will give many years of trouble-free service. DLC and ETL listed, comes with a 5 year warranty at no extra charge.
HBE series LED High-bay light collected a thin, smart and stylish shape, better cooling design and high lumen
efficacy. We designed multiple mounting connections for va variety of mounting options. This series is
patented, and UL/cUL, DLC, CE, CB certifications. IP65, suitable for wet locations.
• Housing: ACD12 aluminum heat sink, SUS back plate, outdoor powder coating
• Optical Lens: High light transmittance PC, anti-UV and fire resistant. Beam angle 90°
• LED: LUMILEDS(LED)125LM/W ; CRI>80 .
• DRIVER: 100-277v, PF≥0.9 ; THD<20%
• Operating Temperature -20°C～+40°C
• Aluminum LED board: High conductive, waterproof, aging resistance, salt mist resistance, and long lifetime (50,000 hours)
• Warranty: 5 years
The CLLS series is a group of 2’, 3’, 4’ and 8’ covered strip lights, which are designed as direct replacements for fluorescent strips. The CLLS series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.
FEATURES
• Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide up to 122,000 hours of operation with at least 70% of initial lumen output (L70).**
• Uniform illumination with no visible LED pixilation
• Universal 120-277 AC voltage (50-60Hz) is standard
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%
• Color rendering index > 80.
• Steel housing and acrylic lens.
• Easy installation in new construction or retrofit.
* contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.
WARRANTY/LISTING
• cULus approved for damp locations (-20°C to 50°C / -4°F to 122°F).
• DLC premium approved.
• Complies with RoHS (Restriction on Hazardous Substances) requirements.
• Complies with FCC Part 15 class A.
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with IEEE 61000-4-2 level 2 (4kV) electrostatic discharge (ESD).
