40 Watt Dimmable 24VDC Magnetic Transformer, LED Power Supply, Class 2

$ 87.49 $ 69.99

40 Watt Dimmable 24VDC Magnetic Transformer, LED Power Supply, Class 2

$ 87.49 $ 69.99

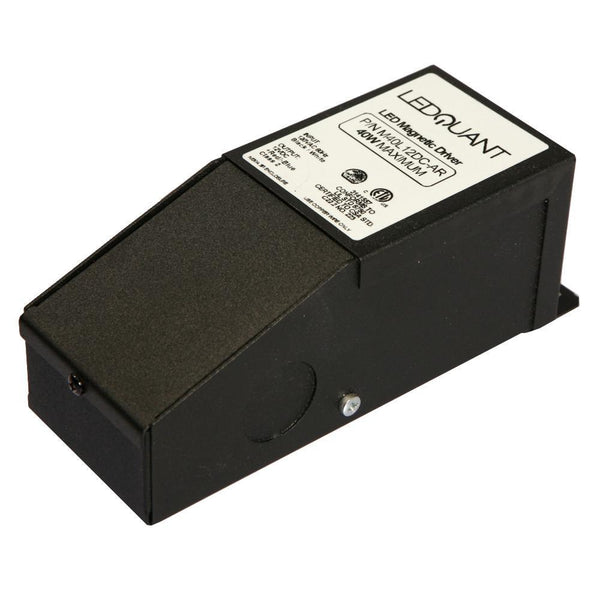

LEDQuant's M24V-40W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.

SKU Number M24V-40W-DC
Applications Dimmable or non-dimmable LEDs, LED fixtures, LED panels, LED strip lights
Max Load 40W
Input Voltage 120V AC 60Hz
Output Voltage 22.3V-24.5V DC
Output Current 1.72A
Efficiency 82%
Length 5.03"
Width 2.14"
Depth 2.00"
Features Acoustic humming and buzzing free, Auto-reset circuit breakers on the input and output
Certifications ETL, CSA
Other Compliance UL Standard 5085-1
Shipping Weight

4 pounds

Dimmers Compatibility

Low-voltage TRIAC dimmers (list available)
