LEDQuant

25W LED outdoor canopy light, UL listed, DLC

$104.90

LEDQuant

25W LED outdoor canopy light, UL listed, DLC

CLCPY-2540-BZ

$104.90

Usually ships in 1-3 Business Days

FREE Shipping & Returns

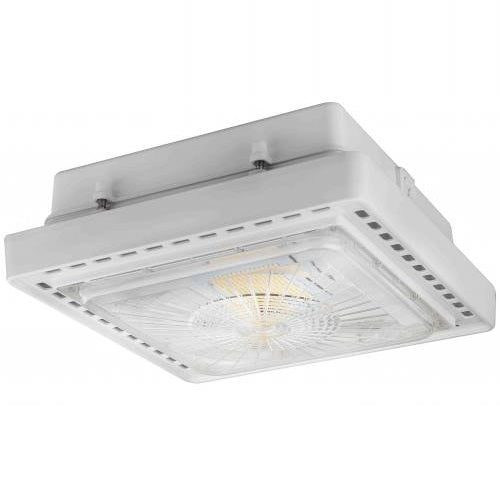

The CLCPY series LED canopy luminaire is a premium-performance solution for illuminating parking garages, storage areas, stairwells, and other applications requiring a low-profile luminaire that can be surface or pendant mounted. With a die cast aluminum housing and a polycarbonate lens, the CLCPY will stand up to many years of punishing environmental conditions. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional canopy lights with HID, fluorescent or incandescent lamps.

FEATURES
▪ Available in 4000K (neutral white) and 5000K (cool white) color temperatures.*
▪ Long-life LEDs provide at least 170,000 hours of operation with at least 70% of initial lumen output (L70).**
▪ Provides a range of 3,137 to 12,708 lumens.*
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ 0-10vdc dimming drivers are standard.
▪ Mounting options include surface-mounting and pendant-mounting using electrical conduit.
▪ Optional, integral Merrytek microwave occupancy/daylight sensor is installed inside the luminaire housing, and provides both on/off and dimming functions. To order, add the suffix “OS” to your luminaire catalog number (see examples below).
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Die cast aluminum housing, painted white or dark bronze.
▪ Easy installation in new construction or retrofit.

* Refer to datasheet below for color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours
.

WARRANTY & LISTINGS
▪ cULus listed for wet locations in ambient temperatures from-20°C to 55°C (-4°F to 131°F).
▪ DLC certified
▪ IP65 rated for ingress protection.
▪ Complies with FCC Part 15, class B.
▪ Complies with EN61000-4-5, surge immunity protection; all other models at 4kV.
▪ 5-Year Warranty of all electronics and housing.
