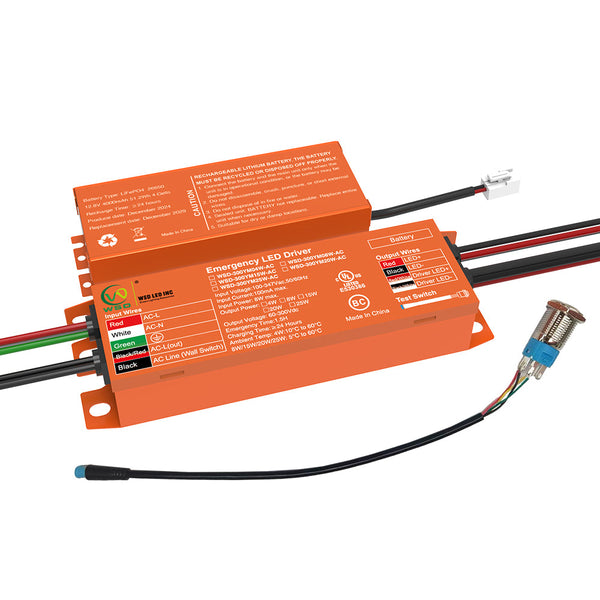

Item: WSD-300YM25W-AC

Output Power: 25 W
Universal Input Voltage: 100-347Vac,50/60Hz
AC Input Current: 100 mA max.
AC Input Power Rating: 25 W max.
Output Voltage: 60-300Vdc

Full Warranty: 5 Years
Test Switch Indicator Light: 2-in 1 test switch and charge indicator light.
Battery: LiFePO4 battery
Battery Charging Current: ≤350mA max.
Charging Time ≥24 Hours
Temperature Rating (Ambient) : 5°C to 60°C (41°F to 140°F)

Package：
Packing size: 10 x 5 x 2 inch
Weight: 2 LBS (1 PCS )
Packing size: 20 x 10 x 10 inch
Weight: 28 LBS (20 PCS)

Download:
DATA/SPEC SHEET

The CLMAL series is a group of premium architectural multi-purpose LED area luminaires designed to illuminate parking areas, pathways, building facades, loading docks, and a wide variety of other large, general site lighting applications. Multiple mounting options make the CLMAL a versatile luminaire for flood lighting, pole-, ground- and wall-mounted are lighting, and other outdoor lighting requirements.

 FEATURES
• Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 372,000 hours of operation with at least 70% of initial lumen output (L70).**
• Available models provide from 27,944 to 36,542 lumens, and from 117 to 131 lumens per watt (LPW).*
• IES roadway photometric distributions include types II-V.
• NEMA floodlight distributions include very narrow (3H x 3V), medium narrow (4H x 4V), medium wide (5H x 5V) & very wide (7H x 7V).
• Universal 120-277 AC voltage (50-60Hz) is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Optional glare shields (full & half) & wire guards are available.
• Optional NEMA photocell installation kit provides watertight photocell attachment to driver enclosure clover.
• Die cast aluminum housing with durable, dark bronze powder coat finish—at least 2 mils thick on all surfaces—and a heat-resistant polycarbonate lens.
• Driver enclosure is sealed with a water-tight, silicone rubber gasket.
• Effective projected areas (EPA’s) are:
- Front = 0.33 square feet
- Side = 0.49 square feet
- Face = 2.14 square feet
• Easy installation in new construction or retrofit applications.

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.

 WARRANTY & LISTINGS
▪ cULus listed for wet locations in ambient temperatures from - 20°C to 45°C (-4°F to 113°F)
▪ IP66 rated for ingress protection
▪ DLC premium approved
▪ Flicker-free per IEEE1789-2015 (no observable adverse effects of flicker at 100% light output level)
▪ Rated for 3G vibration
▪ Lens is IK 9 rated for protection from external impacts
▪ Salt fog tested for 1,000 hours (ASTM B117). After salt fog testing, paint rated at 9 per ASTM D1654-05 scratch test
▪ Complies with FCC Part 15, class B
▪ Complies with EN61000-4-5, surge immunity protection (6kV)
▪ 5-Year Warranty of all electronics and housing

Specification Sheet

Selectable LED GLASS WALL PACK LED Lighting Series can be widely used for indoor or outdoor lighting (Wet Location). Excellent for museums, art galleries, shopping malls, office buildings, walls and many other applications.


Power: 28W / 42W / 56W / 70W
Input: AC 120-277V
CCT: 3000K /4000K / 5000K
Output: 4800 LM/6393 LM/7880 LM/9808 LM

Factory Default Parameters:
Power: 70W
CCT: 4000K
Light Source: 2835 LEDs
Driver: KERHAM

Selectable LED Architectural Wall Pack Lighting series can be widely used in indoor or outdoor lighting (wet location). Excellent for museums, art galleries, shopping malls, office buildings, walls and many other applications.

12Vdc Auxiliary Dimming

Power: 28W / 42W / 56W / 70W
Input: AC 120-277V
CCT: 3000K / 4000K / 5000K
Output: 4760 LM/6880 LM/8601 LM/11124 LM
Type of lighting： T3 / T4 / T5

Factory Default Parameters: Item:
Power: 70W
CCT：4000K
Type of lighting: T4
Driver: KERHAM

Selectable LED Architectural Wall Pack Lighting series can be widely used in indoor or outdoor lighting (wet location). Excellent for museums, art galleries, shopping malls, office buildings, walls and many other applications.

**12Vdc Auxiliary Dimming**

Power: 28W / 42W / 56W / 70W
Input: AC 120-277V
CCT: 3000K / 4000K / 5000K
Output: 4760 LM/6880 LM/8601 LM/11124 LM
Type of lighting： T3 / T4 / T5

Factory Default Parameters:
Power: 70W
CCT：4000K
Type of lighting: T4
Driver: KERHAM

The Selectable Semi-Cutoff Wall Pack LED Lighting Series can be widely used for Indoor or Outdoor (Wet Location) Excellent for Museums, Art Galleries, Shopping Malls, Office Buildings, Walls and many other applications.

Power: 28W / 42W / 56W / 70W
Input: AC 120-277V
CCT: 3000K/ 4000K / 5000K
Output:  4483 LM / 5896  LM
               7740 LM / 9753 LM

Factory Default Parameters:
Power: 70W
CCT: 4000K
Light Source: 2835 LEDs
Driver: KERHAM

The CLHB-LF-90 is a full-body, premium-performance LED high bay luminaire. It is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a painted, steel housing, the CLHB-LF-90 provides durability and high performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.

The CLLS series is a group of 2’, 3’, 4’ and 8’ covered strip lights, which are designed as direct replacements for fluorescent strips. The CLLS series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

FEATURES
• Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide up to 122,000 hours of operation with at least 70% of initial lumen output (L70).**
• Uniform illumination with no visible LED pixilation
• Universal 120-277 AC voltage (50-60Hz) is standard
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%
• Color rendering index > 80.
• Steel housing and acrylic lens.
• Easy installation in new construction or retrofit.

 * contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.

 WARRANTY/LISTING
• cULus approved for damp locations (-20°C to 50°C / -4°F to 122°F).
• DLC premium approved.
• Complies with RoHS (Restriction on Hazardous Substances) requirements.
• Complies with FCC Part 15 class A.
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with IEEE 61000-4-2 level 2 (4kV) electrostatic discharge (ESD).

Specification Sheet

The CLLSH series is a group of 2’, 3’, 4’ and 8’ slim strip lights, which are designed as direct replacements for fluorescent strips. The CLLSH series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

FEATURES
• CLLSH2 provides 2,582 luminaire lumens
(129 lumens per watt, LPW) at 3500k; 2,592 luminaire
lumens (130 LPW) at 4000k; and 2,613 luminaire lumens (131 LPW) at 5000k.*
• CLLSH3 provides 3,138 luminaire lumens
(126 LPW) at 3500k; 3,154 luminaire lumens (126 LPW) at 4000k; and 3,186 luminaire lumens (127 LPW) at 5000k.*
• CLLSH4 provides 4,278 luminaire lumens (130
LPW) at 3500k; 4,313 luminaire lumens (131 LPW) at
4000k; and 4,382 luminaire lumens (133 LPW) at 5000k.*
• CLLSH8 provides 8,129 luminaire lumens (131 LPW) at 3500k; 8,131 luminaire lumens (131 LPW) at
4000k; and 8,135 luminaire lumens (131 LPW) at 5000k.*
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.

 * contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.

 WARRANTY/LISTING
• cETLus listed for damp locations in ambient temperatures from 20°C to 50°C (-4°F to 122°F).
• DLC premium approved.
• Flicker-free per IEEE1789-2015 (low risk of adverse effects of flicker at 100% light output level).
• Complies with FCC Part 15, Class B (except for
CLLSH8, which has Class A compliance).
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with RoHS (Restriction on Hazardous
Substances) requirements.
• 5-Year Warranty of all electronics and housing.

Specification Sheet

• Die-cast aluminum housing and mounting box
• Durable polyester powder coating finish
• Tempered glass lens, thermal shock and impact resistant

• Die-cast aluminum housing and mounting box
• Durable polyester powder coating finish
• Tempered glass lens, thermal shock and impact resistant

• Voltage: 120V/240V/277V
• Color Temperature: 3000K, 4000K or 5000K
• CRI: >80
• 50,000+ Hour LED Life Expectancy
• Operating Temperature: -40°F to 122°F
• IP65
• Swivel Head
• Aluminum Housing
• Clear Polycarbonate Lens

Ultra-thin, back-lit LED panel designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and retail stores. Perfect choice for new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10VDC dimming capability.

 FEATURES

 WARRANTY/LISTINGS

 MOUNTING KITS

 DLC Approval is Required for Most Rebate Programs:

Ultra-thin, back-lit LED panel designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and retail stores. Perfect choice for new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10VDC dimming capability.

 FEATURES

 WARRANTY/LISTINGS

 MOUNTING KITS

 DLC Approval is Required for Most Rebate Programs:

Field selectable 3500k (warm/neutral white), 4000k (neutral
white), & 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide 144,000 hours of operation with at
least 70% of initial lumen output (L70), and 44,000 hours with at
least 90% of initial lumen output (L90).**
▪ Selectable lumen outputs range from 2,700 to 4,000 nominal
lumens.*
▪ Uniform illumination with no visible LED pixilation.
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ 0-10vdc dimming drivers are standard.
▪ Power factor > 90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Aluminum frame and steel housing backplate.
▪ PMMA (polymethyl methacrylate) LED lenses for optimal light
distribution, efficiency and longevity.
▪ Easy installation in new construction or retrofit.
▪ Standard earthquake clips provide secure installation in grid
ceilings.
▪ Optional emergency drivers are available.
▪ Standard mounting options include recessed mounting in grid
ceilings, or suspended mounting using attached hanging
brackets. For mounting in plaster or other hard ceiling, see
Mounting Kits.

The premium-performance CLTR22N is a 2’ x 2’ LED center basket luminaire, which offers industry-leading lumens per watt (LPW), and which is DLC Premium listed. The CLTR22N is designed as a direct replacement for 2’ x 2’ fluorescent luminaires installed in grid ceilings. It is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

FEATURES

• Available in 3000k (warm white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 81,000 hours of operation with at least 70% of initial lumen output (L70).**
• Provides 3,709 luminaire lumens (124 lumens per watt, LPW) at 3000k, 3,766 luminaire lumens (126 LPW) at 4000k, and 3,823 luminaire lumens (128 LPW) at 5000k.*
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Steel housing and acrylic lens.
• Easy installation in new construction or retrofit. Fits in standard 2’ x 2’ grid ceilings.
• Standard earthquake clips provide secure installation in grid
ceilings.
*Contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.

WARRANTY/LISTING

• UL listed for damp locations and insulated ceilings (IC-rated) for use in ambient temperatures from -25°C to 50°C (-13°F to 122°F).
• DLC Premium listed.
• Complies with FCC Part 15, class B.
• 5-year warranty of all electronics and housing.

Specification Sheet

The premium-performance CLTR22D-32 is a low-profile 2’ x 2’ LED center basket luminaire, which offers industry-leading lumens per watt (LPW). The CLTR22D-32 is designed as a direct replacement for 2’ x 2’ fluorescent luminaires installed in grid or plaster ceilings. It is also designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

FEATURES

▪ Available in 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white) & 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide 199,000 hours of operation with at least 70% of initial lumen output (L70).**
▪ Provides 4,195 luminaire lumens (131 lumens per watt, LPW) at 3000k; 4,293 luminaire lumens (134 LPW) at 3500k; 4,371
luminaire lumens (137 LPW) at 4000k; and 4,527 luminaire lumens (141 LPW) at 5000k.*
▪ Uniform illumination with no visible LED pixelation.
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ 0-10vdc dimming capability is standard.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Steel housing and acrylic lens.
▪ Easy installation in new construction or retrofit. Fits in standard 2’ x 2’ grid ceilings.
▪ Standard earthquake clips provide secure installation in grid ceilings.
▪ Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets.

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours

WARRANTY & LISTINGS

▪ UL listed for damp locations and insulated ceilings (IC-rated) for use in ambient temperatures from -20°C to 40°C (-4°F to 104°F).
▪ DLC Premium listed.
▪ Flicker-free per IEEE1789-2015 (low risk of adverse effects of flicker at 100% light output level).
▪ Complies with RoHS (Restriction on Hazardous Substances) requirements.
▪ Complies with FCC Part 15, part B.
▪ Complies with IEEE C.62.41-1991, input transient surge protection (2kV).
▪ 5-year warranty of all electronics and housing.

Specification Sheet

The CLFP-2X4-LKFS is a high-performance 2x4 LED panel designed for commercial and office applications. It provides uniform illumination with energy-efficient LED technology, making it an ideal replacement for traditional fluorescent fixtures.

Key Features

• Ultra-thin, lightweight design for easy installation

• High-efficiency LED chips with long lifespan

• Flicker-free and glare-reducing light output

• Adjustable wattage and CCT for customized lighting

• Compatible with 0-10V dimming systems

• DLC Premium & UL certified for energy efficiency and safety

Technical Specifications

Applications

• Office Spaces

• Schools & Universities

• Healthcare Facilities

• Conference Rooms

• Retail Stores

Mounting Options

• Recessed Grid Ceiling (Standard)

• Surface Mount Kit (Optional)

• Suspension Kit (Optional)

Specification Sheet

The WFP-2X4-LKFS is a high-performance 2x4 LED panel designed for commercial and office applications. It provides uniform illumination with energy-efficient LED technology, making it an ideal replacement for traditional fluorescent fixtures. WFP series flat panel and emergency driver are FCC Part 15B compliant.

Key Features

• Ultra-thin, lightweight design for easy installation

• High-efficiency LED chips with long lifespan

• Flicker-free and glare-reducing light output

• Adjustable wattage and CCT for customized lighting

• Compatible with 0-10V dimming systems

• DLC Premium & UL certified for energy efficiency and safety

Technical Specifications

Applications

• Office Spaces

• Schools & Universities

• Healthcare Facilities

• Conference Rooms

• Retail Stores

Mounting Options

• Recessed Grid Ceiling (Standard)

• Surface Mount Kit (Optional)

• Suspension Kit (Optional)

Specification Sheet

The premium-performance CLTR24D-50 is a 2’ x 4’ LED center basket luminaire, which offers industry-leading lumens per watt (LPW), and which is DLC Premium listed. The CLTR24D-50 is designed as a direct replacement for 2’ x 4’ fluorescent luminaires installed in grid ceilings. It is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10 vdc dimming capability.

FEATURES

▪ Available in 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white) & 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide 199,000 hours of operation with at least 70% of initial lumen output (L70).**
▪ Uniform illumination with no visible LED pixelation.
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ 0-10vdc dimming capability is standard.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Steel housing and acrylic lens.
▪ Easy installation in new construction or retrofit. Fits in standard 2' x 4' grid ceilings.
▪ Standard earthquake clips provide secure installation in grid ceilings.
▪ Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets.

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours

WARRANTY & LISTINGS

▪ UL listed for damp locations and insulated ceilings (IC-rated) for use in ambient temperatures from -20°C to 40°C (-4°F to 104°F).
▪ DLC Premium listed.
▪ Flicker-free per IEEE 1789-2015 (low risk of adverse effects of flicker at 100% light output level).
▪ Complies with RoHS (Restriction on Hazardous Substances) requirements.
▪ Complies with FCC Part 15, part B.
▪ Complies with IEEE C.62.41-1991, input transient surge protection (2kV).
▪ 5-year warranty of all electronics and housing.

The WTR series LED troffer is ideal for replacement of fluorescent lights or new installation. The fixture comes in 3500K, 4000K, and 5000K CCT and has efficacy up to 125Lm/W. The troffer provides well-distributed illumination without dark spot. Specifically designed for critical facilities the WTR series troffer and emergency driver are FCC Part 15B certified.

FEATURES

▪ Available in 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white) & 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide 199,000 hours of operation with at least 70% of initial lumen output (L70).**
▪ Uniform illumination with no visible LED pixelation.
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ 0-10vdc dimming capability is standard.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Steel housing and acrylic lens.
▪ Easy installation in new construction or retrofit. Fits in standard 2' x 4' grid ceilings.
▪ Standard earthquake clips provide secure installation in grid ceilings.
▪ Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets.

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours

WARRANTY & LISTINGS

▪ UL listed for damp locations and insulated ceilings (IC-rated) for use in ambient temperatures from -20°C to 40°C (-4°F to 104°F).
▪ DLC Premium listed.
▪ Flicker-free per IEEE 1789-2015 (low risk of adverse effects of flicker at 100% light output level).
▪ Complies with RoHS (Restriction on Hazardous Substances) requirements.
▪ Complies with FCC Part 15, part B.
▪ Complies with IEEE C.62.41-1991, input transient surge protection (2kV).
▪ 5-year warranty of all electronics and housing.

Specification Sheet

UL-listed, ROHS - Easy installation: comes with E26 base adapter, fits most 3" metal cans for retro-fit installation 50 Watt Halogen Equivalency. - Wet Locations (Could be used outdoor and indoors) - Dimmable: compatible with most LED dimmers, using an internal driver, no external ballast or starter needed

Specification Sheet

3" LED Baffle Retrofit kit. It is compatible with most 3” recessed standard housings. Ideal for both remodel or new construction applications. The retrofit kit comes with a disconnect screw-in base lead for easy installation into standard incandescent sockets.

• White painted Diecast body is appropriate for heat dissipation.
• Oversized trim ring constructed from one-piece diecast
• 3 Tension clips pre-installed on unit for easy installation
• E26 medium screw-base Edison connector provides easy retrofit of incandescent housings.
• 9W - 470 Lumens
• Protected LED driver performs at 120V
• Dimming down to 5% with most dimmers.
• CRI >80 or >90
• cULus classified
• Energy star qualified
• Title 24 compliant
• Wet locations (Not suitable for coastal/salt water area)
• Damp Locations
• RoHS compliances
• Tested in accordance with IESNA LM79 & LM80
• Dimensions - 4 3/8" x 2 3/4"

Specification Sheet

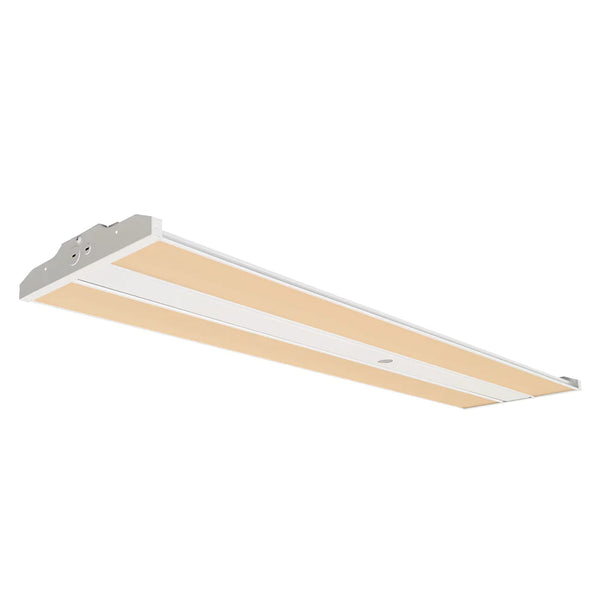

The Linear High Bay with its all-in-one, lightweight and slim with multiple mounting situations available put it at the top of the list for any high ceiling area where super bright light is needed. The LED Linear High bay Light Series can be widely used for indoor excellent for warehouse, industry building, factories, fitness center, and many other applications.

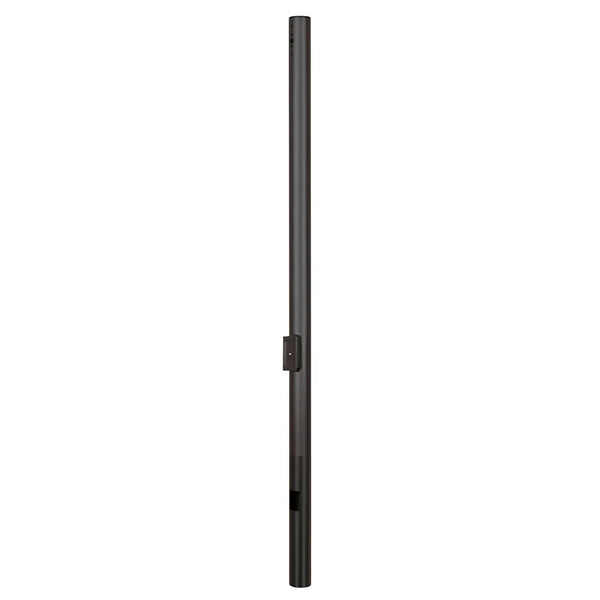

The WSD LED INC Series Direct Burial Straight Round poles are built from high strength steel tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 10 to 30 feet can be used based on selected luminaire application.

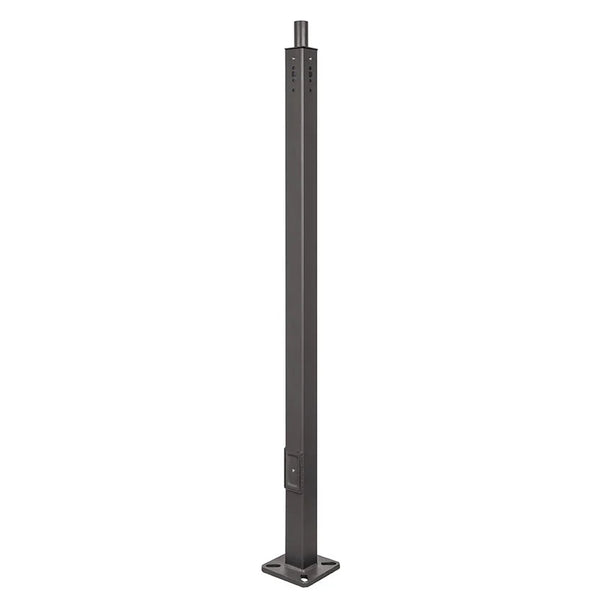

The WISDOM Series Square Steel Poles are built from high strength square tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 10 to 30 feet can be used based on selected luminaire application.

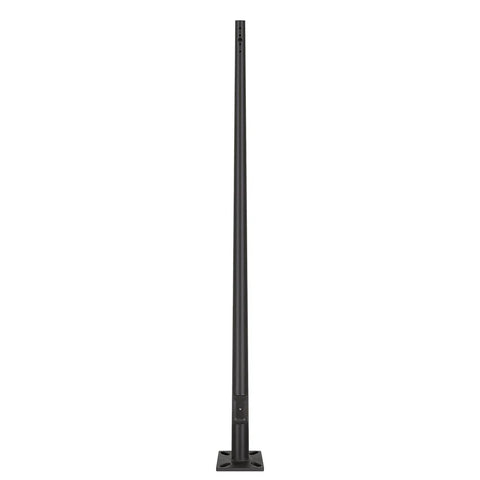

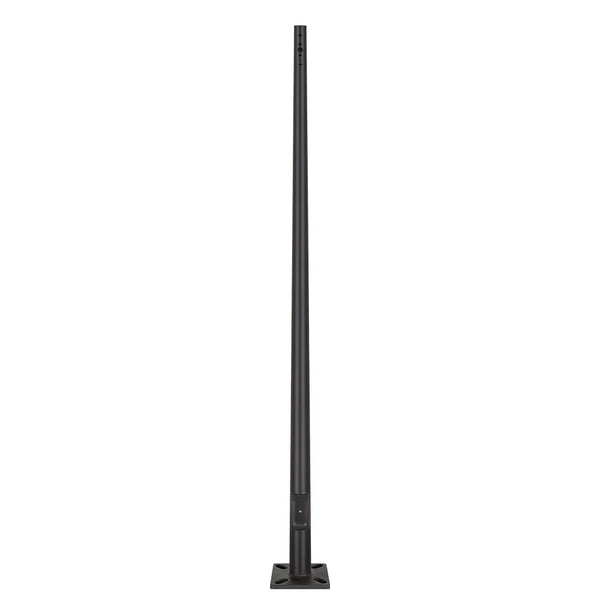

The WSD LED INC Series Round Tapered Steel poles are built from high strength steel tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 20 to 30 feet can be used based on selected luminaire application.

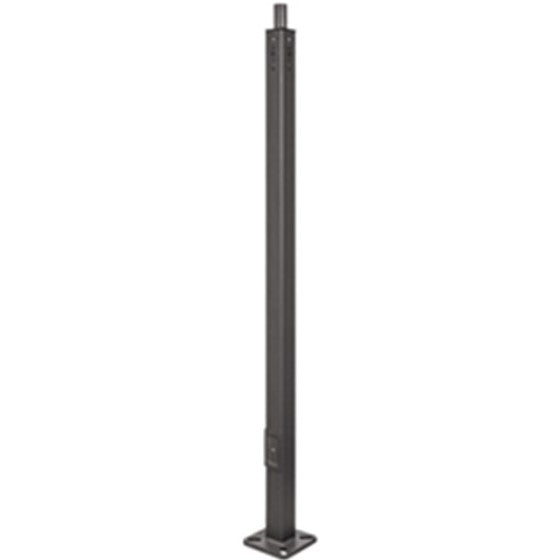

The WSD LED INC Series Straight Square Steel poles are built from high strength steel tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities.

FEATURES:

• 1 Year Pole Warranty
• FINISH: Textured architectural bronze powder-coat finish, baked to ensure maximum paint adhesion, hardness and durability.
• ANCHOR BOLTS: Anchor bolts are not included, sized based on pole data charts for the selected pole size.
• HAND HOLE: Cast iron reinforced hand hole and cover with ground screw.
• BASE COVER: Poles are provided with a two-piece formed steel base cover that is easily assembled and fitted over pole base.
• SURFACE TREATMENT: Hot-dip galvanizing.

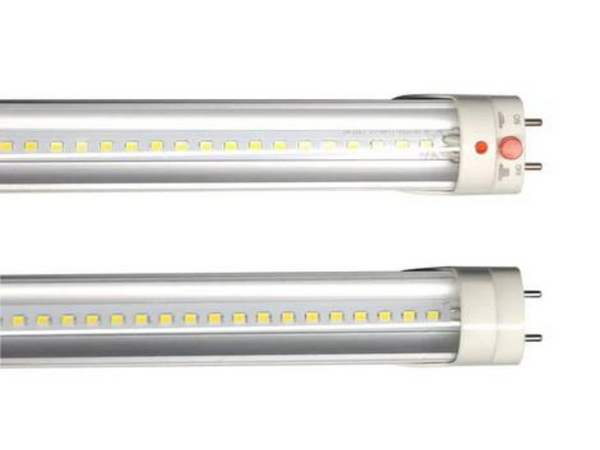

LEDSION Emergency LED tube Light led luminaire has a beautiful low profile design intended for indoor industrial/warehouse/commercial lighting applications LED driver and thermal management. High-performance illumination that lasts 30,000HRS

Item：WSD-IPEM480V-30W

SKU :201.0428
Input Voltage :277-480V AC, 50/60Hz
Output Voltage :400V DC
Input Current:100mA max.
Output Current:200mA max.
Output Power:30W
Emergency Time;90 minutes
Charging Time:≥24 hours
Battery Type:Lithium ion
Ambient Temp:0℃~50℃

Package：
Packing size: 20.28 x 17.13 x 13.58 inch
Weight:52.58 LBS (10 PCS)

Download：
DATA/SPEC SHEET
