The CLLS series is a group of 2’, 3’, 4’ and 8’ covered strip lights, which are designed as direct replacements for fluorescent strips. The CLLS series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

FEATURES
• Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide up to 122,000 hours of operation with at least 70% of initial lumen output (L70).**
• Uniform illumination with no visible LED pixilation
• Universal 120-277 AC voltage (50-60Hz) is standard
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%
• Color rendering index > 80.
• Steel housing and acrylic lens.
• Easy installation in new construction or retrofit.

 * contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.

 WARRANTY/LISTING
• cULus approved for damp locations (-20°C to 50°C / -4°F to 122°F).
• DLC premium approved.
• Complies with RoHS (Restriction on Hazardous Substances) requirements.
• Complies with FCC Part 15 class A.
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with IEEE 61000-4-2 level 2 (4kV) electrostatic discharge (ESD).

Specification Sheet

50 Watt LED Outdoor Flood Light, Cool White, Energy Efficient. Reduced energy consumption by up to 80%. 2 year guarantee.

The CLMAL series is a group of premium architectural multi-purpose LED area luminaires designed to illuminate parking areas, pathways, building facades, loading docks, and a wide variety of other large, general site lighting applications. Multiple mounting options make the CLMAL a versatile luminaire for flood lighting, pole-, ground- and wall-mounted are lighting, and other outdoor lighting requirements.

 FEATURES

• Available in 3000k (warm white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 230,000 hours of operation with at least 70% of initial lumen output (L70).**
• CLMAL-50 provides 5,717 lumens (117 lumens per watt, LPW) at 3000k; 5,778 lumens (118 LPW) at 4000k; and 5,793
lumens (118 LPW) at 5000k.*
• Standard optic provides an IES roadway type V distribution, or a 7V (vertical) x 7H (horizontal) NEMA floodlight distribution.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Optional glare shields (full & half) & wire guards are available.
• Die cast aluminum housing with durable, dark bronze powder coat finish—at least 2 mils thick on all surfaces—and a heat-resistant polycarbonate lens.
• Wireway enclosure is sealed with a water-tight, silicon rubber gasket.
• Effective projected areas (EPA’s) are:
- Front = 0.15 s.f. (knuckle) / 0.13 s.f. (yoke)
- Side = 0.18 s.f. (knuckle) / 0.13 s.f. (yoke)
- Face = 0.73 s.f. (knuckle) / 0.57 s.f. (yoke)
• Easy installation in new construction or retrofit applications.

* contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.

 WARRANTY & LISTINGS

• cULus listed for wet locations in ambient temperatures from -20°C to 45°C (-4°F to 113°F).
• IP66 rated for ingress protection.
• DLC premium approved.
• Rated for 3G vibration.
• Lens is IK 8 rated for protection from external impacts.
• Salt fog tested for 1,000 hours (ASTM B117). After salt fog testing, paint rated at 9 per ASTM D1654-05 scratch test.
• Complies with FCC Part 15, class B.
• Complies with EN61000-4-5, surge immunity protection (2kV).
• 5-year warranty of all electronics and housing

 MOUNTING OPTIONS

• Yoke-mounted option provides secure attachment to flat surfaces.
• Aluminum die-cast knuckle-mount option is installed on a junction box. Includes ½” NPS stem with locking nut.

Specification Sheet

The working principle of Solar LED Semi-Cutoff Wall Mount Light: The solar panel is irradiated by sunlight, absorbs the sun light and converts it into electric energy to charge the battery. At night, the battery pack provides power to supply the LED lighting to realize the illumination. The DC controller can ensure that the battery pack is not damaged due to overcharging or overdischarging, meanwhile, it has temperature compensation and lightning protection, reverse polarity protection and other functions such as Light control, lighting 3-5 rainy days. Ideal for park, courtyard, villa residence, walls and many other applications.

The working principle of Solar LED Round Wall Mount Light: The solar panel is irradiated by sunlight, absorbs the sun light and converts it into electric energy to charge the battery. At night, the battery pack provides power to supply the LED lighting to realize the illumination. The DC controller can ensure that the battery pack is not damaged due to overcharging or overdischarging, meanwhile, it has temperature compensation and lightning protection, reverse polarity protection and other functions such as Light control, lighting 3-5 rainy days. Ideal for park, courtyard, villa residence, walls and many other applications.

The working principle of Solar LED Semi-Cutoff Wall Mount Light: The solar panel is irradiated by sunlight, absorbs the sun light and converts it into electric energy to charge the battery. At night, the battery pack provides power to supply the LED lighting to realize the illumination. The DC controller can ensure that the battery pack is not damaged due to overcharging or overdischarging, meanwhile, it has temperature compensation and lightning protection, reverse polarity protection and other functions such as Light control, lighting 3-5 rainy days. Ideal for park, courtyard, villa residence, walls and many other applications.

The working principle of Solar LED Round Wall Mount Light: The solar panel is irradiated by sunlight, absorbs the sun light and converts it into electric energy to charge the battery. At night, the battery pack provides power to supply the LED lighting to realize the illumination. The DC controller can ensure that the battery pack is not damaged due to overcharging or overdischarging, meanwhile, it has temperature compensation and lightning protection, reverse polarity protection and other functions such as Light control, lighting 3-5 rainy days. Ideal for park, courtyard, villa residence, walls and many other applications.

The CLADL series is a 6” commercial grade architectural downlight (includes can & frame-in kit). Built for commercial use with architectural frames and a deep cone reflector for precision light. This high-efficiency luminaire provides long life and minimal need for maintenance. UL and Energy Star listed.

 FEATURES
• Architectural frames
• C channel and flat hanger bars for tie down to ceiling grids
• Junction box is mounted on the frame for easy wiring,driver access for installation, and replacement
• Diecast aluminum heatsink dissipates heat from the LED board
• Self-flanged aluminum reflector with a frosted lens to shield direct view of LEDs
• Color rendering index ≥ 80
• Long life LEDs - up to 50,000 hours
• Universal 120-277 AC voltage (50/60Hz)
• 0-10V dimming
• Operation Temp. -30°C~40°C (-22°F~104°F)

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.

 WARRANTY & LISTINGS
• cULus Listed.
• ENERGY STAR® rated.
• Suitable for wet locations (not suitable for coastal/saltwater areas).
• Suitable for damp locations.
• RoHS compliant.
• 5-year warranty of all electronics and housing.

Specification Sheet

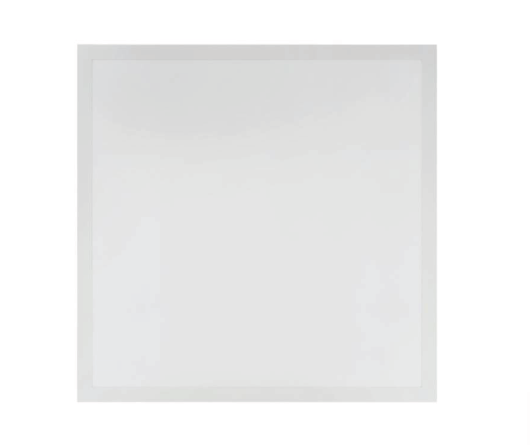

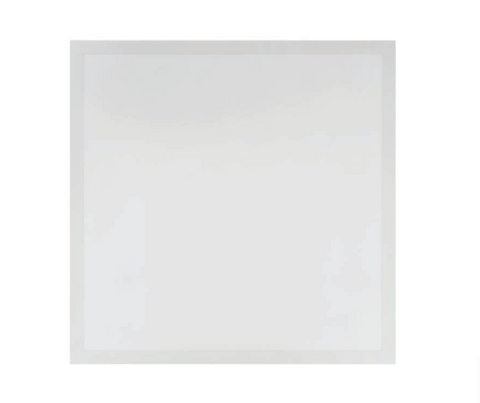

• Quality white Aluminum heatsink and high transmission PC cover.
• High brightness lumileds LED chips as backlit lighting solution.
• Suspended Ceiling Mounting/ Frame Flash Mounting

LEDQuant's M12V-60W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.

The Architectural WALL PACK LED Lighting Series can be widely used for indoor or outdoor lighting (Wet Location). Excellent for museums, art galleries, shopping malls, office buildings, walls and many other applications


Power: 70W
Input: AC 120-277V
CCT：5000K
Output: 9841 LM
Light Source: Lumileds

Adjustable WALL PACK LED Lighting Series can be widely used for indoor or outdoor lighting (Wet Location). Excellent for museums, art galleries, shopping malls, office buildings, walls and many other applications.


Power: 70W
Input: AC 120-277V
CCT: 5000K
Output: 9170 Lm
Light Source: Lumileds
Driver: KERHAM

LED Semi Cutoff WALL PACK Lighting series can be widely used as indoor or outdoor lighting (Wet location). Perfect for mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station, indoor stadiums and flower cultivating tents, etc.

Power: 70W
Input: AC 120-277V
CCT：5000K
Output: 10150LM
Light Source: Lumileds
Driver: OWN

7W Dimmable LED Recessed Light w/Cable & Plug, 3500K CCT

7W LED Recessed Light w/Cable & Plug, Cool White 6000K

The CLR-L5 is a 8” commercial grade architectural downlight . Built for commercial use. This high-efficiency luminaire provides long life and minimal need for maintenance. White or Specular available. ETL and Energy Star listed. FCC Part 15 Class B compliant.

 FEATURES
Housing

• Premium powder-coat, aluminum, white housing.

Mounting

•  Recessed in ceiling, new construction or retrofit.
• Access above ceiling required.
• Covered ceiling mount only.
• Compatible with 8.08” ceiling cut-outs and 8” mounting frames.

Electrical

•  Universal 120-277V AC voltage (50-60Hz) is standard.
• 0-10VDC dimming drivers are standard.
• 21.65” flexible metal conduit with additional 6” of conductor is standard.
• Beam angle 50°.
• Input transient surge protection = 1kV.
• Type IC.
• Power factor > 0.90.
• Total Harmonic distortion < 20%.

Optical System

• Polycarbonate diffuser.
• Field selectable 2700k (soft white), 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures*.
• Tri-Lumen selectable delivers 3,000 to 5,000 nominal lumens*.
• Long-life LEDs provide 149,000 hours of operation with at least 70% of initial lumen output (L70), and 44,000 hours with at least 90% of initial lumen output (L90)**.
• LED color maintenance < -0.0114 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Color rendering index > 90%.

 WARRANTY & LISTINGS
• Code Compliance

• cETLus listed for wet locations.
• Energy Star certified.
• Complies with FCC part 15, class B.
• Complies with Title 24.

Warranty

• 5-year warranty on all electronics and housing.

Specification Sheet

The CLMAL series is a group of premium architectural multi-purpose LED area luminaires designed to illuminate parking areas, pathways, building facades, loading docks, and a wide variety of other large, general site lighting applications. Multiple mounting options make the CLMAL a versatile luminaire for flood lighting, pole-, ground- and wall-mounted are lighting, and other outdoor lighting requirements.


 FEATURES
• Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 372,000 hours of operation with at least 70% of initial lumen output (L70)**
• Available models provide from 9,816 to 18,408 lumens, and from 117 to 131 lumens per watt (LPW)*
• IES roadway photometric distributions include types II-V
• NEMA floodlight distributions include very narrow (3H x 3V), medium narrow (4H x 4V), medium wide (5H x 5V) & very wide (7H x 7V)
• Universal 120-277 AC voltage (50-60Hz) is standard
• Power factor > 0.90
• Total harmonic distortion < 20%
• Color rendering index > 80
• Optional glare shields (full & half) & wire guards are available
• Optional NEMA photocell installation kit provides watertight photocell attachment to driver enclosure clover
• Die cast aluminum housing with durable, dark bronze powder coat finish—at least 2 mils thick on all surfaces—and a heatresistant polycarbonate lens
• Driver enclosure is sealed with a water-tight, silicone rubber gasket
• Effective projected areas (EPA’s) are:
- Front = 0.24 square feet
- Side = 0.29 square feet
- Face = 1.10 square feet
• Easy installation in new construction or retrofit applications


* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.

 WARRANTY & LISTINGS

• cULus listed for wet locations in ambient temperatures from -20°C to 45°C (-4°F to 113°F)
• IP66 rated for ingress protection
• DLC premium approved
• Flicker-free per IEEE1789-2015 (no observable adverse effects of flicker at 100% light output level)
• Lens is IK 9 rated for protection from external impacts
• Salt fog tested for 1,000 hours (ASTM B117). After salt fog testing, paint rated at 9 per ASTM D1654-05 scratch test
• Complies with FCC Part 15, class B
• Complies with EN61000-4-5, surge immunity protection (6kV)
• 5-Year Warranty of all electronics and housing

Specification Sheet

The CLLS series is a group of 2’, 3’, 4’ and 8’ covered strip lights, which are designed as direct replacements for fluorescent strips. The CLLS series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

FEATURES
• Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide up to 122,000 hours of operation with at least 70% of initial lumen output (L70).**
• Uniform illumination with no visible LED pixilation
• Universal 120-277 AC voltage (50-60Hz) is standard
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%
• Color rendering index > 80.
• Steel housing and acrylic lens.
• Easy installation in new construction or retrofit.

 * contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.

 WARRANTY/LISTING
• cULus approved for damp locations (-20°C to 50°C / -4°F to 122°F).
• DLC premium approved.
• Complies with RoHS (Restriction on Hazardous Substances) requirements.
• Complies with FCC Part 15 class A.
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with IEEE 61000-4-2 level 2 (4kV) electrostatic discharge (ESD).

Specification Sheet

The CLLSH series is a group of 2’, 3’, 4’ and 8’ slim strip lights, which are designed as direct replacements for fluorescent strips. The CLLSH series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

FEATURES
• CLLSH2 provides 2,582 luminaire lumens
(129 lumens per watt, LPW) at 3500k; 2,592 luminaire
lumens (130 LPW) at 4000k; and 2,613 luminaire lumens (131 LPW) at 5000k.*
• CLLSH3 provides 3,138 luminaire lumens
(126 LPW) at 3500k; 3,154 luminaire lumens (126 LPW) at 4000k; and 3,186 luminaire lumens (127 LPW) at 5000k.*
• CLLSH4 provides 4,278 luminaire lumens (130
LPW) at 3500k; 4,313 luminaire lumens (131 LPW) at
4000k; and 4,382 luminaire lumens (133 LPW) at 5000k.*
• CLLSH8 provides 8,129 luminaire lumens (131 LPW) at 3500k; 8,131 luminaire lumens (131 LPW) at
4000k; and 8,135 luminaire lumens (131 LPW) at 5000k.*
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.

 * contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.

 WARRANTY/LISTING
• cETLus listed for damp locations in ambient temperatures from 20°C to 50°C (-4°F to 122°F).
• DLC premium approved.
• Flicker-free per IEEE1789-2015 (low risk of adverse effects of flicker at 100% light output level).
• Complies with FCC Part 15, Class B (except for
CLLSH8, which has Class A compliance).
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with RoHS (Restriction on Hazardous
Substances) requirements.
• 5-Year Warranty of all electronics and housing.

Specification Sheet

The SSL series (Selectable Strip Light) LED linear light is ideal for replacement of fluorescent lights or new installation. The desired Power (W) and CCT (K) are field selectable which makes this fixture a versatile solution for multiple commercial and industrial applications.  The fixture provides well-distributed illumination. Lifespan: 100,000 hrs. Mounting: Surface and suspended

ELECTRICAL

Power: 55W, 60W, 65W (Field Selectable)

CCT: 3500K, 4000K, 5000K (Field Selectable)

Efficacy: 130 lm/W

CRI > 80

Operating voltage: 120-277V AC

Dimming: 0-10V

Power factor > 0.9

OPTICS / FINISH

Beam angle: 112°

Steel housing

Frosted acrylic lens

White finish

WARRANTY

5-years warranty

Specification Sheet

The SSL series (Selectable Strip Light) LED linear light is ideal for replacement of fluorescent lights or new installation. The desired Power (W) and CCT (K) are field selectable which makes this fixture a versatile solution for multiple commercial and industrial applications.  The fixture provides well-distributed illumination. Lifespan: 100,000 hrs. Mounting: Surface and suspended

ELECTRICAL

Power: 55W, 60W, 65W, 75W, 91W (Field Selectable)

CCT: 3500K, 4000K, 5000K (Field Selectable)

Efficacy: 130 lm/W

CRI > 80

Operating voltage: 120-277V AC

Dimming: 0-10V

Power factor > 0.9

OPTICS / FINISH

Beam angle: 112°

Steel housing

Frosted acrylic lens

White finish

WARRANTY

5-years warranty

Specification Sheet

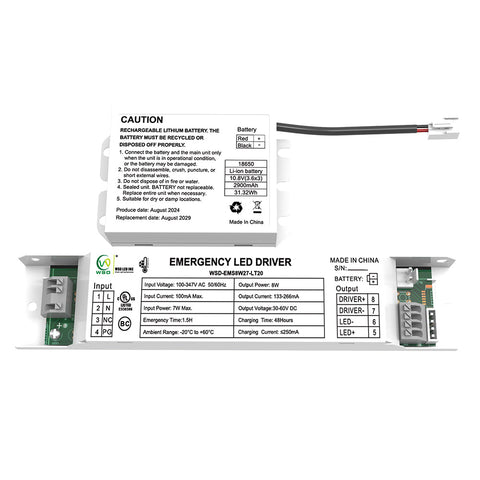

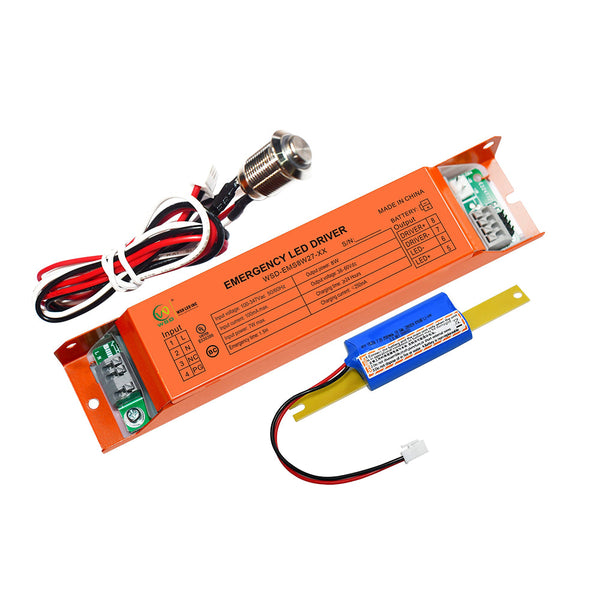

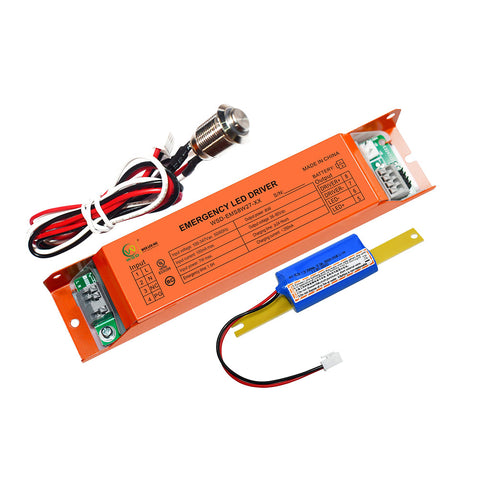

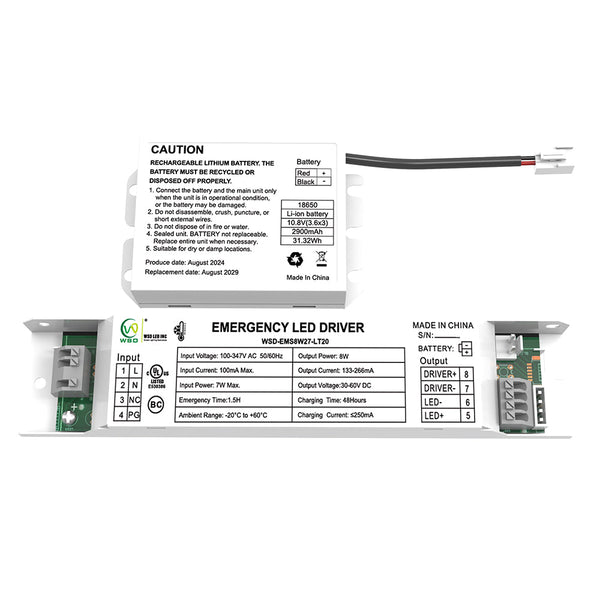

Item:WSD-170YT08W-AC

Input Voltage:100~347Vac,50/60Hz
Input Current: 100mA max
Input Power: 6W max
Output Voltage: 170V DC
Emergency Power: 8W
Recharge Time: 24Hrs
Discharge Time: 90 minutes
Battery: Li-ion  Battery
Ambient Temp: 5°C-50°C(41°F to 122°F)

Download:
DATA/SPEC SHEET

Item: WSD-300YM08W-AC

Output Power: 8 W
Universal Input Voltage: 100-347Vac,50/60Hz
AC Input Current: 100 mA max.
AC Input Power Rating: 8.0 W max.
Output Voltage: 60-300Vdc

Full Warranty: 5 Years
Test Switch Indicator Light: 2-in 1 test switch and charge indicator light.
Battery: LiFePO4 battery
Battery Charging Current: ≤350mA max.
Charging Time ≥24 Hours
Temperature Rating (Ambient) : 5°C to 60°C (41°F to 140°F)

Package：
Packing size: 9 x 5 x 2 inch
Weight: 2 LBS (1 PCS )
Packing size: 19 x 9 x 10 inch
Weight: 28 LBS (20 PCS)

Download:
DATA/SPEC SHEET

Item：WSD-EMS08W27-LT2

Output Power: 8W
Universal Input Voltage: 100-347Vac,50/60Hz
AC Input Current: 100mA max.
AC Input Power Rating: 7.0W max.
Output Current and Voltage: 133-222mA 36-60Vdc
Emergency Time 1.5H
Full Warranty: 5 Years
Test Switch Indicator Light Illuminated Test Switch, indicator Light
Battery: Cold Rated Li-ion Battery
Battery Charging Current :250 mA
Charging Time 24Hours
Temperature Rating (Ambient): -20°C to 60°C (-4°F to 140°F)

Package：
Packing size: 8.23x4.33x1.57 inch
Weight: 0.97 LBS (1 PCS)
Package size: 18.11 x 8.86 x 9.06 inch
Weight: 19.43 LBS ( 20 PCS)

Download:
DATA/SPEC SHEET

Item:WSD-PNP20H27

Package：
Package size: 13.35 x 7.28 x 2.36 inch
Weight: 3.17 LBS ( 1PCS)
Package size: 13.98 x 12.8x 8.07 inch
Weight: 15.84 LBS ( 5 PCS)

Download:
DATA/SPEC SHEET

ETL-listed, ROHS - Easy installation: comes with E26 base adapter, fits most 3" metal cans for retro-fit installation 50 Watt Halogen Equivalency. - Damp Locations (Could be used outdoor and indoors) - Dimmable: compatible with most LED dimmers, using an internal driver, no external ballast or starter needed

4” Recessed downlight retrofit solution with integrated LED power supply and thermal management system combined in a single compact unit designed to fit most standard 4” recessed cans.

ILLUMINATION Long Life LEDs with up to 50,000 hours at 70% lumen maintenance. Uses 1.18W high power, high quality LEDs. Choice of 2700K, 3000K, 4000K or 5000K color temperature with 80 CRI. Produces 550-730 lumens output from luminaire.

ELECTRICAL Built-in LED driver. Includes Socket Adapter. Save 75% compared to incandescent sources. Down to 10% dimmable with most dimmers. Voltage: 120V, 50-60Hz. Operation temperature of -20°C - 40°C (-4°F - 104°F). Power Consumption: 8 Watts.

MOUNTING Easy installation with integral clips. No tools required for installation.

HOUSING Compatible with most 4” recessed cans. Durable thermoplastic construction. E26 medium screw-base Edison connector provides easy retrofit of incandescent housings. Compatible with insulated, non-insulated and air-tight ceilings. 4” square baffle snap-in (option).

WARRANTY/LISTING Tested in accordance with IESNA LM79 & LM80. ETL Listed for wet location. Energy Star qualified. Passes FCC Class B. Five year warranty on all electronics and housing.

Specification Sheet

Item: WSD-EMT91215W12-5CCT

Output Power: 4.2 W
Universal Input Voltage: AC120V,50/60Hz
AC Input Current: 200mA max
AC Input Power Rating: 21W max
Output Voltage: DC30-36V

Full Warranty: 5 Years
Battery: Li-ion battery
Battery Charging Current: ≤390mA
Charging Time: ≥24 Hours
Temperature Rating (Ambient): 5°C to 50°C (41°F to 122°F)

Package：
Packing size: 10 x 5 x 2 inch
Weight: 2 LBS (1 PCS )
Packing size: 20 x 10 x 10 inch
Weight: 28 LBS (20 PCS)

Download:
DATA/SPEC SHEET

This Adjustable LED I-Beam High Bay is an energy-efficient solution for a variety of spaces, including: Warehouse Lights, Factory Lighting, Garage Lights, Distribution Center Lighting & other large Commercial properties. Operating 95, 115, 160W with a Color of 4000K or 5000K CCT, each LED Module can be Rotated up to 135°, allowing users the ability to angle the light in their preferred direction! Fixture comes with V-Hooks and Chains for Suspension Hanging and optional Pendant and Surface Mount Kits are available to order. Optional Wire Guard available to order along with Emergency Backup. It is made from Painted White Steel with a PMMA Frosted Lens and is rated for use in Damp Locations and comes with 6.0kV Surge Protection. Complies with RoHS, FCC Part 15 & IEC/EN61000-4-5. The durable HBLASR-241815L-4K5K is a long-lasting, maintenance free choice with DLC Premium Listing and 5 Year Warranty!

• Dimensions: 25.8" (L) x 12.1" (W) x 2" (D)
• Weight: 7.5 lbs.

Specification Sheet
