Products

The CLLS series is a group of 2’, 3’, 4’ and 8’ covered strip lights, which are designed as direct replacements for fluorescent strips. The CLLS series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

FEATURES
• Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide up to 122,000 hours of operation with at least 70% of initial lumen output (L70).**
• Uniform illumination with no visible LED pixilation
• Universal 120-277 AC voltage (50-60Hz) is standard
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%
• Color rendering index > 80.
• Steel housing and acrylic lens.
• Easy installation in new construction or retrofit.

 * contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.

 WARRANTY/LISTING
• cULus approved for damp locations (-20°C to 50°C / -4°F to 122°F).
• DLC premium approved.
• Complies with RoHS (Restriction on Hazardous Substances) requirements.
• Complies with FCC Part 15 class A.
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with IEEE 61000-4-2 level 2 (4kV) electrostatic discharge (ESD).

Specification Sheet

The CLLSH series is a group of 2’, 3’, 4’ and 8’ slim strip lights, which are designed as direct replacements for fluorescent strips. The CLLSH series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

FEATURES
• CLLSH2 provides 2,582 luminaire lumens
(129 lumens per watt, LPW) at 3500k; 2,592 luminaire
lumens (130 LPW) at 4000k; and 2,613 luminaire lumens (131 LPW) at 5000k.*
• CLLSH3 provides 3,138 luminaire lumens
(126 LPW) at 3500k; 3,154 luminaire lumens (126 LPW) at 4000k; and 3,186 luminaire lumens (127 LPW) at 5000k.*
• CLLSH4 provides 4,278 luminaire lumens (130
LPW) at 3500k; 4,313 luminaire lumens (131 LPW) at
4000k; and 4,382 luminaire lumens (133 LPW) at 5000k.*
• CLLSH8 provides 8,129 luminaire lumens (131 LPW) at 3500k; 8,131 luminaire lumens (131 LPW) at
4000k; and 8,135 luminaire lumens (131 LPW) at 5000k.*
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.

 * contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.

 WARRANTY/LISTING
• cETLus listed for damp locations in ambient temperatures from 20°C to 50°C (-4°F to 122°F).
• DLC premium approved.
• Flicker-free per IEEE1789-2015 (low risk of adverse effects of flicker at 100% light output level).
• Complies with FCC Part 15, Class B (except for
CLLSH8, which has Class A compliance).
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with RoHS (Restriction on Hazardous
Substances) requirements.
• 5-Year Warranty of all electronics and housing.

Specification Sheet

The CLADL series is a 4” commercial grade architectural downlight (includes can & frame-in kit). Built for commercial use with architectural frames and a deep cone reflector for precision light. This high-efficiency luminaire provides long life and minimal need for maintenance. UL and Energy Star listed.

 FEATURES
• Architectural frames
• C channel and flat hanger bars for tie down to ceiling grids
• Junction box is mounted on the frame for easy wiring,driver access for installation, and replacement
• Diecast aluminum heatsink dissipates heat from the LED board
• Self-flanged aluminum reflector with a frosted lens to shield direct view of LEDs
• Color rendering index ≥ 80
• Long life LEDs - up to 50,000 hours
• Universal 120-277 AC voltage (50/60Hz)
• 0-10V dimming
• Operation Temp. -30°C~40°C (-22°F~104°F)

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.

 WARRANTY & LISTINGS
• cULus Listed.
• ENERGY STAR® rated.
• Suitable for wet locations (not suitable for coastal/saltwater areas).
• Suitable for damp locations.
• RoHS compliant.
• 5-year warranty of all electronics and housing.

 Specification Sheet

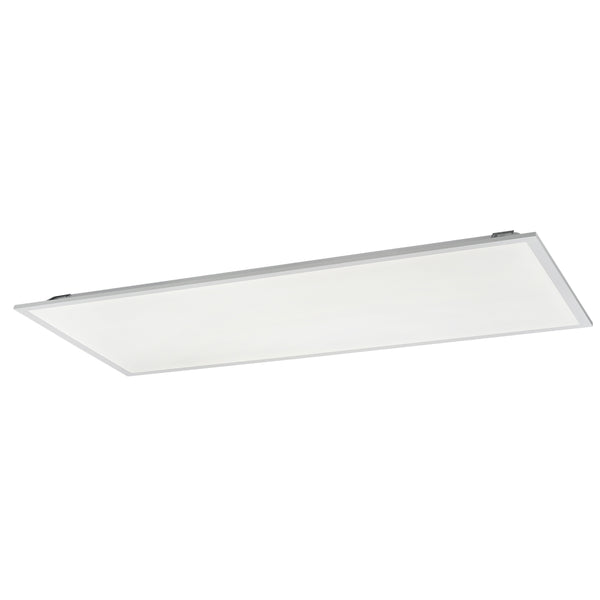

• INSTANT SAVINGS - Reduce your electricity usage with an LED light panel that only uses 36W of power
• HIGH EFFICIENCY Each 2 x 2 FT panel LED light fixture provides optimal lighting with 4000 lumens
• Dimmable - Take control of your lighting needs with the ability to reduce from 100% to 10% lighting output
• REBATE ELIGIBLE - Get a return on investment with our 2x2 troffer LED panel lights which are DLC Listed!
• COLOR TEMPERATURE - 3500K
• SPECIFICATIONS - 36W, 4000 Lumens, 24x24 IN Flat Panel LED Light, Dimmable 0-10V, 120° Beam Angle, Direct Wiring, UL Listed, DLC Listed, Rectangle Ceiling Light, 50,000 Hour Lifetime, 5-YEAR WARRANTY

Spec Sheet

We offer quantity discounts. Please inquire : sales@ledquant.com

LEDQuant's M12V-40W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.

LEDQuant's M24V-40W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.

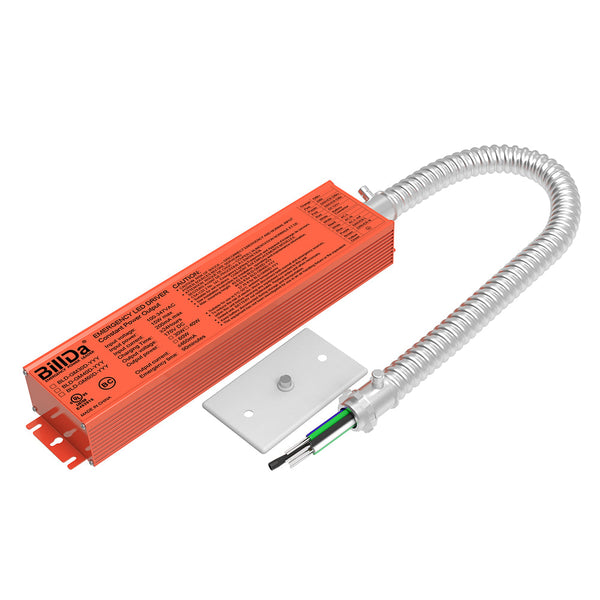

Item: BLD-GM40D-YYY

Output Power: 40W
Output Voltage: 170V DC
Input Power: 15W max
Input Voltage: 100-347Vac, 50/60HZ
Input Current: 200mA max
Application: ≤300W(0-10V Dim Fixture)
 <40W NO 0-10V Dim Fixture
Ambient Temperature: 5 °C to +50 °C （41°F to 122°F)

Package:
Packing size:  16.73x 8.46 x 2.56 inch
Weight: 4.75  LBS (1 PCS )
Packing size: 17.72 x  17.52 x 13.78 inch
Weight:  47.52 LBS ( 10 PCS)

Download:
DATA/SPEC SHEET

**Remote Control Standard**

Item: WSD-EMUFO40W347-R

Power: 40W
Input Voltage: 100-347VAC 50/60H
Output Voltage: 170 Vdc
Input Power:15 W
Input Current:≤200 mA
Battery : Li-ion Battery
Charging Time ≥24Hours
Emergency Time: 90 Min
Full Warranty: 5 Years
Ambient Temp: 5°C to 50°C

Package：
Package size: 23.62 x 16.34 x 9.25 inch
Weight: 30.75 LBS ( 4 PCS)

Download:
DATA/SPEC SHEET

Selectable LED Slim Adjustable Wall Pack series can be widely used in indoor or outdoor lighting (wet location). The head tilts from 0º to 90º. Ideal for mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station, indoor stadiums.

** Photocell control available (Standard)**
** 1-10V Dimming**

Power: 40W / 60W / 80W
Input: AC 120-277V
CCT: 3000K/4000K/5000K
Output: 10000LM/11200LM/10800LM
Light Source: Lumileds
Driver: Daermay

Factory Default Parameters:
Power:80W
CCT：4000K

The Architectural WALL PACK LED Lighting Series can be widely used for indoor or outdoor lighting (Wet Location). Excellent for museums, art galleries, shopping malls, office buildings, walls and many other applications


Power: 45W
Input: AC 120-277V
CCT: 5000K
Output: 6741 LM
Light Source: Lumileds
Driver: WELED POWER

LED Semi Cutoff WALL PACK Lighting series can be widely used as indoor or outdoor lighting (Wet location). Perfect for mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station, indoor stadiums and flower cultivating tents, etc.

Power: 45W
Input: AC 120-277V
CCT：5000K
Output: 6651 LM
Light Source: Lumileds
Driver: OWN

Selectable LED GLASS WALL PACK LED Lighting Series can be widely used for indoor or outdoor lighting (Wet Location). Excellent for museums, art galleries, shopping malls, office buildings, walls and many other applications.

Power: 48W / 72W / 96W / 120W
Input: AC 120-277V
CCT: 3000K /4000K / 5000K
Output: 6990 LM / 10447 LM
13422 LM / 16767LM

Factory Default Setup:
Power: 120W
CCT: 4000K
Light Source: 2835 LEDs
Driver: KERHAM

The working principle of solar LED street light: The solar street light is controlled by intelligent controller. The solar panel is irradiated by sunlight, absorbs the sun light and converts it into electric energy to charge the battery. At night, the battery pack provides power to supply the LED lighting to realize the illumination. The DC controller can ensure that the battery pack is not damaged due to overcharging or overdischarging, meanwhile, it has temperature compensation and lightning protection, reverse polarity protection and other functions such as Light control plus time control, lighting in different time (can be preprogrammed different power in each time period) Intelligent lighting 3-5 rainy days. Ideal for park, Roadway, Parking lot, Courtyard and many other applications.

Selectable LED Architectural Wall Pack Lighting series can be widely used in indoor or outdoor lighting (wet location). Excellent for museums, art galleries, shopping malls, office buildings, walls and many other applications.

12Vdc Auxiliary Dimming

Power: 48W / 72W / 96W / 120W
Input: AC 120-277V
CCT: 4000K / 5000K
Output: 7800 LM/11288 LM/14627 LM/18550 LM
Type of lighting： T3 / T4 / T5

Factory Default Parameters:
Power: 120W
CCT：4000K
Type of lighting: T4
Driver: KERHAM

The Selectable Semi-Cutoff Wall Pack LED Lighting Series can be widely used for Indoor or Outdoor (Wet Location) Excellent for Museums, Art Galleries, Shopping Malls, Office Buildings, Walls and many other applications.

Power: 48W / 76W / 92W / 120W
Input: AC 120-277V
CCT: 4000K / 5000K
Output: 7496LM / 10985 LM
            14162 LM / 17226 LM

Factory Default Parameters:
Power: 120W
CCT: 4000K
Light Source: 2835 LEDs
Driver: KERHAM

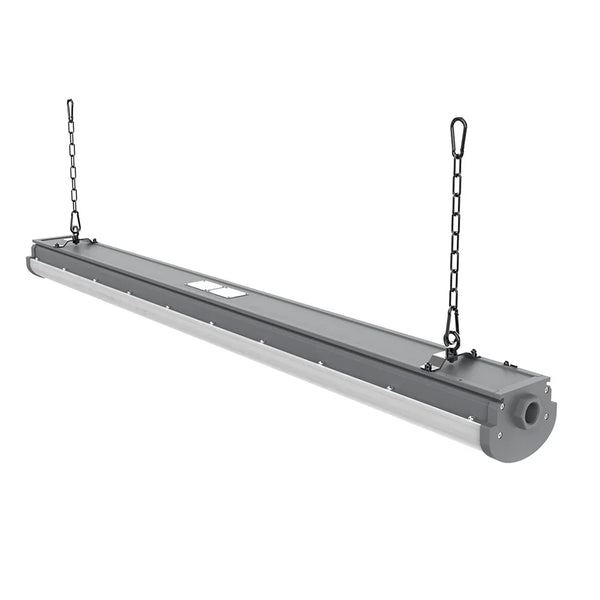

The Linear High Bay is a lightweight, slim, all-in-one lighting solution designed for various mounting options, making it ideal for high-ceiling spaces requiring intense illumination. Perfect for warehouses, industrial buildings, factories, and fitness centers, this LED High Bay offers superior light distribution and efficiency. It features an advanced optical design for enhanced brightness and uniformity, a high-efficiency driver supporting 277V-480V, and a durable galvanized iron housing for optimal cooling. Additional benefits include 0-10V dimming to 10%, 12Vdc auxiliary dimming, easy plug-and-play installation, and a Bi-Level Sensor for smart lighting control.

FEATURES:

• Voltage: 120-277V
• Wattage: 60W
• Lumens: 8400LM
• CCT: 5000K
• CRI: >72
• Life: 50,000 hours

• Operating Temperature: -40°C to +55°
• Listings: CULUS, DLC Premium
• 5 year warranty
• Groups A, B, C and D; Damp and wet locations

The CLLSR retrofit strip lights are designed to transform existing fluorescent strips into high performance LED luminaires. The CLLSR series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

 FEATURES
• Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 122,000 hours of operation with at least 70% of initial lumen output (L70).**
• Provides 2,833 luminaire lumens (123 lumens per watt, LPW) at 3500k; 2,990 luminaire lumens
(130 LPW) at 4000k; and 3,013 luminaire lumens (131 LPW) at 5000k.*
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Steel housing and acrylic lens.
• Easy installation in existing fluorescent strip housings

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.

 WARRANTY/LISTINGS
• cULus approved for damp locations (-20 °C to 50 °C / -4 °F to 122 °F).
• DLC premium approved.
• Complies with FCC Part 15, Class A.
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with IEC 61000-4-2 level 2 (4kV) electrostatic discharge (ESD).
• Complies with RoHS (Restriction on Hazardous Substances) requirements.
• 5-year warranty of all electronics and housing.

Specification Sheet

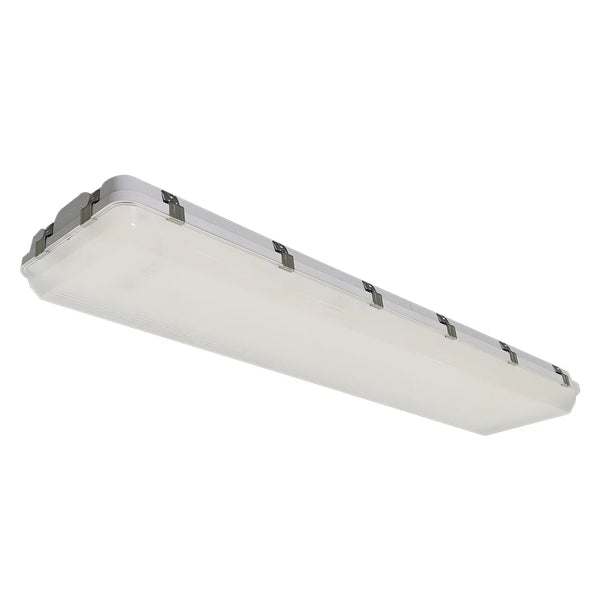

The CLVTL-40 is a surface-mounted LED luminaire, which is designed to prevent the intrusion of moisture and dust. The CLVTL-40 provides general ambient lighting in commercial and industrial settings, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

 FEATURES
• Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 122,000 hours of operation with at least 70% of initial lumen output (L70).**
• Choose from 4,793 luminaire lumens (120 LPW) at 3500k; 5,200 luminaire lumens (130 LPW) at 4000k; and 5,240 luminaire lumens (131 LPW) at 5000k.*
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• Power factor > 0.95.
• Total harmonic distortion < 10%.
• Color rendering index > 80.
• ABS (acrylonitrile butadiene styrene) housing and polycarbonate lens
• Stainless steel mounting bracket and lens clips are standard.
• Easy installation in new construction or retrofit.

*Contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.

 WARRANTY/LISTING
• cULus listed for wet locations (-20°C to 50°C / -4°F to 122°F).
• IP65 rated for ingress protection.
• DLC premium approved.
• Complies with FCC Part 15, class A.
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with IEC 61000-4-2 level 2 (4kV) electrostatic discharge (ESD).
• Complies with RoHS (Restriction on Hazardous Substances) requirements.
• 5-year warranty of all electronics and housing.

Specification Sheet

The CLLSH series is a group of 2’, 3’, 4’ and 8’ slim strip lights, which are designed as direct replacements for fluorescent strips. The CLLSH series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

FEATURES
• CLLSH2 provides 2,582 luminaire lumens
(129 lumens per watt, LPW) at 3500k; 2,592 luminaire
lumens (130 LPW) at 4000k; and 2,613 luminaire lumens (131 LPW) at 5000k.*
• CLLSH3 provides 3,138 luminaire lumens
(126 LPW) at 3500k; 3,154 luminaire lumens (126 LPW) at 4000k; and 3,186 luminaire lumens (127 LPW) at 5000k.*
• CLLSH4 provides 4,278 luminaire lumens (130
LPW) at 3500k; 4,313 luminaire lumens (131 LPW) at
4000k; and 4,382 luminaire lumens (133 LPW) at 5000k.*
• CLLSH8 provides 8,129 luminaire lumens (131 LPW) at 3500k; 8,131 luminaire lumens (131 LPW) at
4000k; and 8,135 luminaire lumens (131 LPW) at 5000k.*
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.

 * contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.

 WARRANTY/LISTING
• cETLus listed for damp locations in ambient temperatures from 20°C to 50°C (-4°F to 122°F).
• DLC premium approved.
• Flicker-free per IEEE1789-2015 (low risk of adverse effects of flicker at 100% light output level).
• Complies with FCC Part 15, Class B (except for
CLLSH8, which has Class A compliance).
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with RoHS (Restriction on Hazardous
Substances) requirements.
• 5-Year Warranty of all electronics and housing.

Specification Sheet

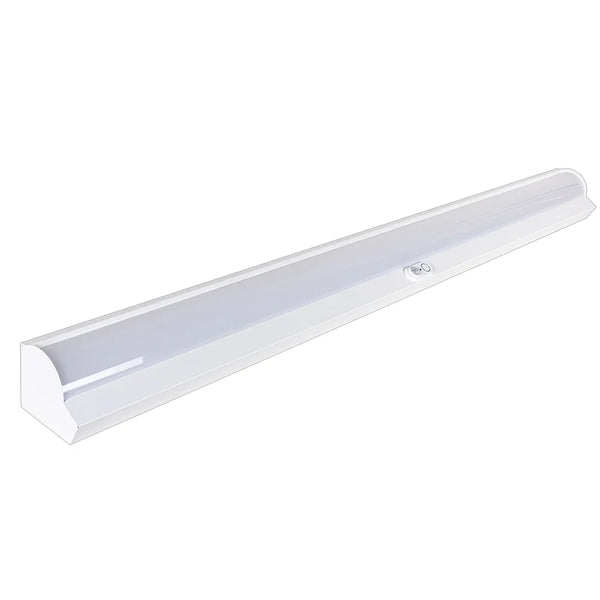

The Selectable LED Stairwell Light Adopt Sheet metal stamping and Frosted PC lens Long lasting white with high durability,Be widely Used in commercial and retail
applications. Ideal for use in stairwells, corridors, and hallways.

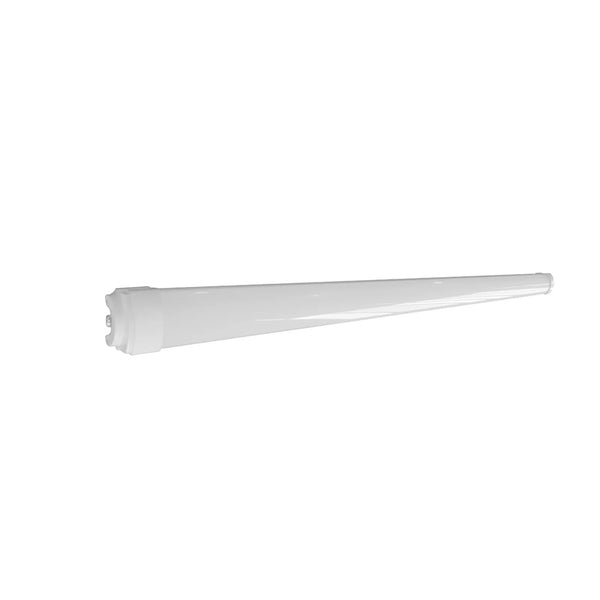

The Strip Light Series with its all-in-one, lightweight and slim with multiple mounting situations available put it at the top of the list for any ceiling area where bright light is needed. The Strip Light Series can be widely used for commercial and retail spaces, hallways, residential and commercial garages, and residential and commercial basements.

FEATURES:

• Wattage: 40W
• Voltage: 100-277V
• Life: 50000 Hours
• CRI: 80

• Color Temperature: 3000K/4000/5000K
• Lumens: 5200 Lumens
• Warranty: 5 Year Limited Warranty

• Operating Temperature: -4° - 104° F
• Made of high quality aluminum material.
• Made of high quality PC material, high ignition point, more safe.
• White finish with Frosted PC lens.
• Lampshade-inner surface stripe design make the light diffusion angle greater and the light more uniform.
• 0-10V will be dim to 0%.
• Ratings: UL listed, DLC Premium, ROHS

LEDSION Tri proof LED Lights has Water proof, Dust-proof and Pressure-proof function. Linkable with 6 units together, Best Waterproof and thermal management. High illumination that lasts 50,000HRS.

FEATURES:

• Wattage: 40W
• Lumens: 4200-5200 LM
• CCT: 5000K
• CRI: 83
• Voltage: 100-277V
• Warranty: 5 Year Limited Warranty
• Operating Temperature: -40℃ TO 40℃
• Operating hours: 50000 hrs
• Ratings: ETL, DLC Listed

• No UV or IR in the beam.
• Easy to install and operate.
• Energy saving, long lifespan.
• Light is soft and uniform, safe to eyes.
• Instant start, NO flickering, NO humming.
• Green and eco-friendly without mercury.

APPLICATIONS:

• Warehouse, factory and workshops; Exhibition hall and supermarkets, etc

Selectable LED Vapor Tight High Bay Light provides gasketed enclosure which provides dust-free and moisture-free fixture. LED Vapor Tight High Bay Light Series can be widely used for food processing plants, meat lockers, beverage coolers, car washes, and parking structures.

Selectable LED Vapor Tight High Bay Light provides gasketed enclosure which provides dust-free and moisture-free fixture. LED Vapor Tight High Bay Light Series can be widely used for food processing plants, meat lockers, beverage coolers, car washes, and parking structures.

The CLWAL-40 is a 1’ x 4’ LED wrap luminaire, which is designed as a direct replacement for fluorescent wraps. The CLWAL-40 is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

 FEATURES
• Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 122,000 hours of operation with at least 70% of initial lumen output (L70).**
• Choose from 4,771 luminaire lumens (119 LPW) at 3500k; 5,200 luminaire lumens (130 LPW) at 4000k; and 5,240 luminaire lumens (131 LPW) at 5000k.*
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Steel housing and acrylic lens.
• Easy installation in new construction or retrofit.

*Contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.

 WARRANTY/LISTING
• cULus listed for damp locations (-20°C to 50°C / -4°F to 122°F).
• DLC premium approved.
• Complies with FCC Part 15, class A.
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with IEC 61000-4-2 level 2 (4kV) electrostatic discharge (ESD).
• Complies with RoHS (Restriction on Hazardous Substances) requirements.
• 5-year warranty of all electronics and housing.

Specification Sheet

The WTA series LED linear light is ideal for replacement of fluorescent lights or new installation. The fixture comes in 3500K, 4000K, and 5000K CCT and has efficacy up to 130Lm/W. The fixture provides well-distributed illumination. Specifically designed for critical facilities the WTA series linear light and emergency driver are FCC Part 15B certified. Lifespan: 50,000 hrs Mounting: Surface and suspended

ELECTRICAL

Power: 40W, 68W

Efficacy: 130 lm/W

CRI > 80

CCT: 3500K, 4000K, 5000K

Operating voltage: 120-277V AC

Dimming: 0-10V

Power factor > 0.9

OPTICS / FINISH

Beam angle: 120°

Steel housing

Frosted acrylic lens

White finish

Linkable: Yes

WARRANTY

5-years warranty

Specification Sheet

The CLHB-LF-178 is a full-body, premium-performance LED high bay luminaire. It is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a painted, steel housing, the CLHB-LF-178 provides durability and high performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.

The CLHB-LF-320 is a full-body, premium-performance LED high bay luminaire. It is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a painted, steel housing, the CLHB-LF-320 provides high levels of durability and performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.

 FEATURES

• Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*

• Long-life LEDs provide 122,000 hours of operation with at least 70% of initial lumens output (L70).**

• Delivers 44,298 lumens (138 lumens per watt, LPW) at 4000k, and 44,490 lumens (140 LPW) at 5000k.*

• Universal 120-277 AC voltage (50-60Hz) is standard. Step-down transformers are required for 347-480V applications.

• 0-10vdc dimming drivers are standard.

• Power factor > 0.90.

• Total harmonic distortion < 20%

• Color rendering index > 80.

• Painted steel housing.

• Easy installation in new construction or retrofit.

• Chain-mount kits (includes v-hooks and ⅛“ thick, 1-meter long chain) are standard.

• Options include lenses (clear & diffused), wire-guard kits, surface-mounting kits, pendant-mounting kits, and cable-mounting kits.

* contact factory for other color temperatures and lumen packages.

**L70 hours are IES TM-21-11 calculated hours.

The CLHB-LF-425 is a full-body, premium-performance LED high bay luminaire. It is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a painted, steel housing, the CLHB-LF-425 provides high levels of durability and performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.

 FEATURES

• Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*

• Long-life LEDs provide 113,000 hours of operation with at least 70% of initial lumens output (L70).**

• Delivers 57,439 lumens (135 lumens per watt, LPW) at 4000k, and 57,451 lumens (135 LPW) at 5000k.*

• Universal 120-277 AC voltage (50-60Hz) is standard. Step-down transformers are required for 347-480V applications.

• 0-10vdc dimming drivers are standard.

• Power factor > 0.90.

• Total harmonic distortion < 20%

• Color rendering index > 80.

• Painted steel housing.

• Easy installation in new construction or retrofit.

• Chain-mount kits (includes v-hooks and ⅛“ thick, 1-meter long chain) are standard.

• Options include lenses (clear & diffused), wire-guard kits, surface-mounting kits, pendant-mounting kits, and cable-mounting kits.

* contact factory for other color temperatures and lumen packages.

**L70 hours are IES TM-21-11 calculated hours.
