$175.08 $138.61
![](http://pinterest.com/pin/create/button/?url=https://www.ledquant.com/products/quick-ship-17-shade-hi-lite-gooseneck-curved-warehouse-collection-h-qsn15117-series-oil-rubbed-bronze-finishes&media=//www.ledquant.com/cdn/shop/files/oilrubbedbronze_6bb00e19-5da4-4b19-994d-712be16177e2_1024x1024.jpg?v=1755300002&description=Quick Ship 17" Shade Hi-Lite Gooseneck, Curved Warehouse Collection, H-QSN15117 Series Oil Rubbed Bronze Finish)
$175.08 $138.61
Usually ships in 1-3 Business Days
FREE Shipping & Returns

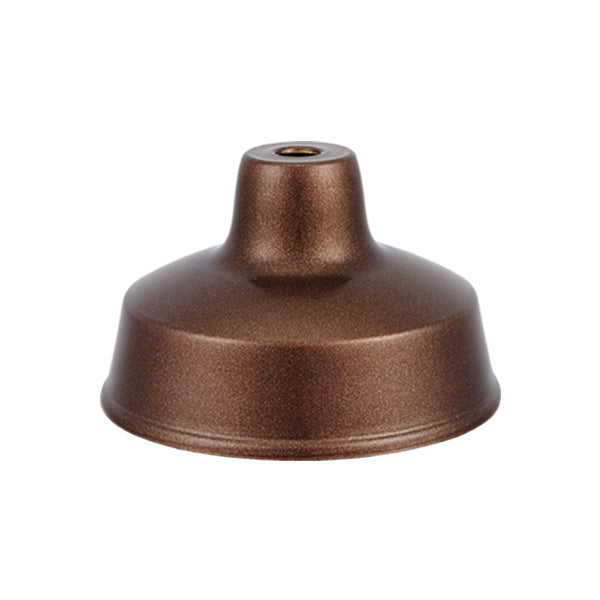

Our Curved Warehouse Shade Collection is a series of durable gooseneck barn lights created with customer satisfaction in mind. Choose from a variety of colors and accessories to create customized and unique fixtures. Available in Black, White, or Galvanized or Oil Rubbed Bronze finishes. These products are part of the Quick Ship program and ship within 3 business days.
NOTE: Choice of gooseneck arm and wire guards will be assumed to be the same color as the shade. Please call to mix and match colors.
Fixture body is Made in the USA.
10 Watt Outdoor LED Flood Light, Energy Efficient. Reduced energy consumption by up to 80%. 2 year guarantee.
| Power Consumption | 10W |
| Traditional Equivalent | 50W |
| Luminous Flux (lm) | 800 Lm |
| LED Brand | Epistar |
| IP Rating | IP 65 |
| Material | Aluminum Alloy |
| Plug | No |
| Light Temperature | Warm White (3000-3200K) |
| Input Voltage | 85-265V AC |
| Beam angle | 120° |
| Lamp Color | Grey |
| Length | 4.4in (112.0mm) |
| Height |
3.31in (84mm) |
| Depth |
3.27in (83mm) |
50 Watt LED Outdoor Flood Light, Cool White, Energy Efficient. Reduced energy consumption by up to 80%. 2 year guarantee.
| SKU Number | FL-50W-CW |
| Power Consumption | 50W |
| Traditional Equivalent | 200W |
| Luminous Flux (lm) | 5000 Lm |
| LED Brand | Bridgelux |
| IP Rating | IP 65 |
| Material | Aluminum Alloy |
| Plug | No |
| Color temperature | Cool White (5500-7000K) |
| Input Voltage | 85-265V AC |
| Certificates | CE, RoHS |
| Warranty | 2 years |
| Life Span | 50000 hours |
| Length |
11.18in (284mm) |
| Height |
8.82in (224mm) |
The CLMAL series is a group of premium architectural LED multi-purpose area luminaires designed to illuminate parking lots, pathways, building facades, loading docks, and a wide variety of other large, general site lighting applications. Multiple mounting options make the CLMAL a versatile luminaire for flood lighting, pole-, ground- and wall-mounted are lighting, and other outdoor lighting requirements.
FEATURES
▪ Available in 3000k (warm white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide 372,000 hours of operation with at least 70% of initial lumen output (L70).**
▪ CLMAL-15 provides 1,593 lumens (114 lumens per watt, LPW) at 3000k; 1,603 lumens (115 LPW) at 4000k; and 1,624 lumens (116 LPW) at 5000k.*
▪ Standard optic provides an IES roadway type V distribution, or a 7V (vertical) x 7H (horizontal) NEMA floodlight distribution.
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Optional glare shields (full & half) & wire guards are available.
▪ Die cast aluminum housing with durable, dark bronze powder coat finish—at least 2 mils thick on all surfaces—and a heat-resistant polycarbonate lens.
▪ Wireway enclosure is sealed with a water-tight, silicon rubber gasket.
▪ Effective projected areas (EPA's) are:
- Front = 0.05 s.f. (knuckle) / 0.06 s.f. (yoke)
- Side = 0.07 s.f. (knuckle & yoke)
- Face = 0.20 s.f. (knuckle) / 0.23 s.f. (yoke)
▪ Easy installation in new construction or retrofit applications.
* contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.
WARRANTY & LISTINGS
• cULus listed for wet locations in ambient temperatures from -20°C to 45°C (-4°F to 113°F).
• IP66 rated for ingress protection.
• DLC premium approved.
• Rated for 3G vibration.
• Lens is IK 8 rated for protection from external impacts.
• Salt fog tested for 1,000 hours (ASTM B117). After salt fog testing, paint rated at 9 per ASTM D1654-05 scratch test.
• Complies with FCC Part 15, class B.
• Complies with EN61000-4-5, surge immunity protection (2.5kV).
• 5-Year Warranty of all electronics and housing.
MOUNTING OPTIONS
• Yoke-mounted option provides secure attachment to flat surfaces.
• Aluminum die-cast knuckle-mount option is installed on a junction box. Includes ½” NPS stem with locking nut.
10 Watt Outdoor LED Flood Light, RGB, Color Changing, Energy Efficient. Reduced energy consumption by up to 80%. Remote Control & Power supply included, 2 year guarantee.
| SKU Number | FL-10W-RGB |
| Power Consumption | 10W |
| Traditional Equivalent | 50W |
| Luminous Flux (lm) | 900 Lm |
| Certifications | CE & ROHS |
| IP Rating | IP 65 |
| Material | Aluminum Alloy |
| Plug | No |
| Light Color | RGB |
| Input Voltage | 110-240V AC |
| Beam angle | 120° |
| Lamp Color | Black |
| Length | 4.33in (110.0mm) |
| Height |
3.35in (85mm) |
| Depth |
3.35in (85mm) |
