Economy 5” & 6” Recessed downlight retrofit solution with integrated LED power supply and thermal management system combined in a single compact unit designed to fit most standard 5” & 6” recessed cans.
FEATURES Long life LEDs with up to 50,000 hours at 70% lumen maintenance. Choice of 2700K, 3000K, 4000K or 5000K color temperatures with 80 CRI Produces 800-860 lumens output from luminaire Uses 1.18W high power, high quality LEDs Dimmable to 10% with most dimmers Save 75% compared to incandescent sources High efficiency driver with a power factor ≥.90 with input power of 120V, 50-60Hz
ELECTRICAL Built-in LED Driver Power consumption of 12 watts Operation temperature of -20°C -40°C (-4°F- 104°F)

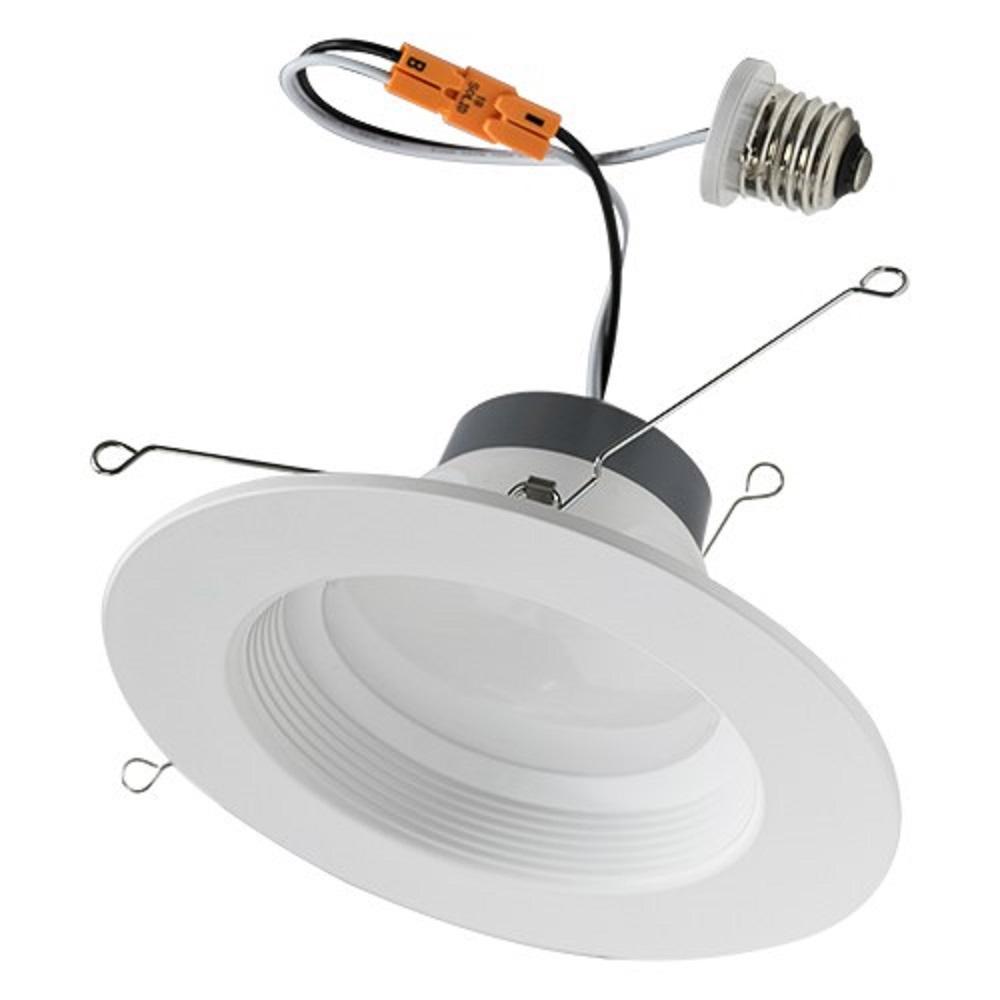

MOUNTING Easy installation with adjustable torsion spring Torsion spring is designed to fit into 5” or 6” housing automatically without changing mounting tab No tools required for installation * Contact factory for other color temperatures and lumen packages. ** L70 hours are IES TM-21-11 calculated hours.
WARRANTY & LISTINGS Tested in accordance with IESNA LM79 & LMB0 ETL Listed for wet location ENERGY STAR qualified Passes FCC Class B 5-year warranty on all electronics and housing
HOUSING Compatible with most 5” and 6” housings Compatible with insulated, non-insulated, and air-tight ceilings Durable thermoplastic construction E26 medium screw-base Edison connector provides easy retrofit of incandescent housings 6" square baffle snap-in (optional)
